Restore Your Vehicle’s Performance and End Stalling Frustrations
Is your 2013-2014 Buick Encore or other GM vehicle experiencing sudden stalling, hard starting, or a persistent check engine light? These are classic signs of a failing Fuel Pump Control Module (FPCM), also known as a Fuel System Control Module (FSCM). This critical component regulates the voltage sent to your fuel pump, ensuring your engine receives the precise amount of fuel it needs under all driving conditions. When it fails, it can leave you stranded and facing a confusing diagnosis.

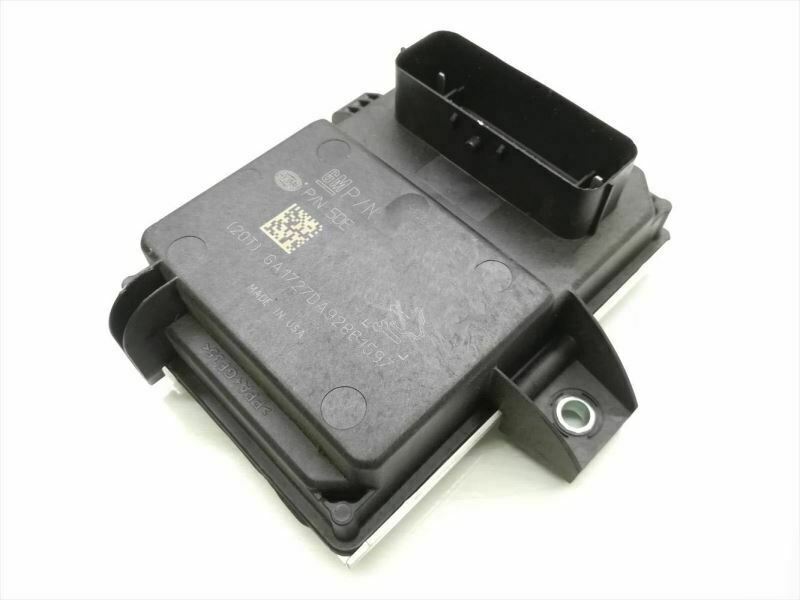

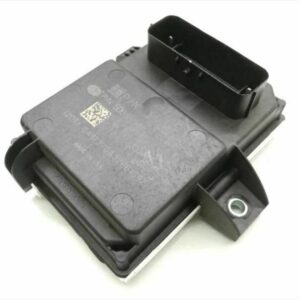

Forget the expensive trip to the dealership and the hassle of post-installation programming. We offer a reliable, ready-to-install solution. This module, part number 22874300, is professionally programmed with the latest official GM software updates specifically for your vehicle. Simply provide us with your Vehicle Identification Number (VIN) after purchase, and we handle the rest. The module arrives at your door, ready for a straightforward installation, saving you hundreds in dealer programming fees and diagnostic time.
Case Study: A Tricky Diagnosis
I had a 2014 Chevy Cruze come into the shop with a frustrating intermittent no-start condition. The owner had already replaced the fuel pump, but the problem persisted. There were no hard codes at first, just a pending P069E (Fuel Pump Control Module Requested MIL Illumination). After checking fuel pressure, which was erratic, we focused on the FPCM. These modules can suffer from internal electronic failure that doesn’t always throw an immediate, obvious code. By swapping in a known-good, correctly programmed module, the fuel pressure stabilized instantly, and the car started every time. This case highlights why simply replacing parts isn’t enough—having a module with the correct, VIN-matched software is essential for a lasting repair.
Why a Pre-Programmed Module is the Smart Choice
This isn’t just a replacement part; it’s a complete repair solution. A new, unprogrammed module from a dealer parts counter is essentially a blank slate. It requires specialized tools like a GM MDI to load the correct operating software. Our service eliminates that entire step. By flashing the 2013-2014 Encore Fuel Pump Module to your VIN, we ensure it communicates flawlessly with your vehicle’s Engine Control Module (ECM) and other systems, restoring factory performance and efficiency.
Common Symptoms of a Failing FPCM
- ✔ Engine stalling, especially under load or when warm.
- ✔ Difficulty starting the engine or a complete no-start condition.
- ✔ Rough idling or engine hesitation during acceleration.
- ✔ Reduced engine power and poor fuel economy.
- ✔ An illuminated Check Engine Light with diagnostic trouble codes (DTCs) such as P069E, P0230, or P2635.
A Straightforward Guide to Installation
- ✔ Safety First: Disconnect the negative terminal from your vehicle’s battery to prevent any electrical shorts.
- ✔ Locate the Module: On most compatible vehicles, including the Encore, the FPCM is located behind the trim panel in the right-hand (passenger side) rear quarter panel area. You may need to remove some plastic clips or panels to gain access.
- ✔ Disconnect and Remove: Carefully unplug the electrical connectors from the old module. Then, unbolt the module from its mounting bracket. It’s typically held on by one or two small bolts or nuts.
- ✔ Install the New Module: Bolt the new, pre-programmed module into place. Reconnect the electrical connectors, ensuring they click securely into place.
- ✔ Reassemble and Reconnect: Reinstall any trim panels you removed. Finally, reconnect the negative battery terminal.
- ✔ Final Check: Start the vehicle. It may take a moment to prime the fuel system. The engine should now start and run smoothly, and your check engine light should be off.
Verified Vehicle Compatibility
This module is a direct-fit replacement for a wide range of General Motors vehicles. It is compatible with part numbers 22874299 and 22874300. Please verify your vehicle is on the list below:
- ✔ 2013-2014 Buick Encore (Fuel Pump; RH inner quarter panel)
- ✔ 2013-2014 Buick Verano (Fuel Pump; RH inner quarter panel)
- ✔ 2014 Cadillac XTS (Fuel Pump; right rear quarter panel)
- ✔ 2014 Chevrolet Camaro (3.6L & 6.2L; quarter panel behind right hand door)
- ✔ 2014 Chevrolet Caprice (Fuel Pump)
- ✔ 2013-2014 Chevrolet Cruze (Fuel Pump; RH inner quarter panel, ID 22874300)
- ✔ 2014 Chevrolet Impala (New Style, VIN 1; RH rear quarter panel)
- ✔ 2013 Chevrolet Orlando (Fuel Pump; RH inner quarter panel)
- ✔ 2013-2014 Chevrolet Sonic (Fuel Pump; RH inner quarter panel)
- ✔ 2013-2014 Chevrolet Trax (Fuel Pump; RH inner quarter panel)
- ✔ 2013-2014 Chevrolet Volt (Fuel Pump; RH inner quarter panel)
Frequently Asked Questions
Why do I need to provide my VIN?
Your VIN is crucial because it allows us to program the module with the exact software calibration specified by GM for your vehicle’s specific options and systems. This ensures perfect compatibility and prevents communication errors that can cause further issues.
Is this part difficult for a DIYer to install?
For most individuals with basic mechanical skills, this is a very manageable job. The module is typically located behind an interior trim panel and held in place by a couple of bolts. Since our module comes pre-programmed, no special computer tools are needed, making it a true plug-and-play repair.
What happens if I don’t replace a failing FPCM?
Ignoring a failing FPCM can lead to worsening symptoms, from poor fuel mileage and performance to intermittent stalling that can be a safety hazard. Eventually, the module will likely fail completely, leaving you with a vehicle that will not start.
Will this fix my check engine light for code P069E?
Yes, if the P069E code (or related fuel system codes) is being caused by a faulty Fuel Pump Control Module, this part is the correct fix. After installation, the code should clear and not return.
Is this part compatible with part number 22874299?
Yes, this module, 22874300, is a fully compatible and interchangeable replacement for part number 22874299. It will function identically once programmed to your vehicle’s VIN.
