If your 2010-2012 GMC Yukon XL 1500 is experiencing frustrating issues like stalling, extended cranking times, or a sudden loss of power, a failing Fuel System Control Module (FSCM) is often the culprit. This isn’t just an inconvenience; it’s a critical component failure that can leave you stranded. As a technician with over two decades of experience, I’ve seen countless drivers replace their fuel pump, only to find the real problem was this small but vital module all along. This FSCM is your direct, reliable solution, arriving at your door pre-programmed to your vehicle’s specific VIN.
A Technician’s Notebook
I remember a 2011 Sierra 1500 that came into the shop on a tow truck. The owner was convinced his new fuel pump had failed because the truck would crank but not start. He’d spent a whole weekend on the replacement. I connected my scan tool and immediately saw code U0109 – Lost Communication with Fuel Pump Control Module. A quick check of the FSCM, located on the frame rail, revealed heavy corrosion on the housing and connector. We installed one of these VIN-programmed modules, and the truck fired up on the first try. He could have saved himself a weekend of work and the cost of a pump by diagnosing the FSCM first.
Is Your Truck Showing These Symptoms?
A faulty FSCM can mimic a bad fuel pump, but there are tell-tale signs. Look out for these common indicators before you start replacing more expensive parts:
- âś” Engine cranks but refuses to start.
- âś” Vehicle starts but stalls immediately or during operation.
- âś” “Reduced Engine Power” message appears on the dash.
- âś” Hesitation or stumbling under acceleration.
- âś” Check Engine Light with diagnostic trouble codes (DTCs) such as P069E, P0230, P025A, or U0109.
The Plug-and-Play Advantage: No Dealer Required
The biggest hurdle in replacing an FSCM has always been the required programming. Traditionally, you’d have to buy the part and then pay a dealership or specialized shop to flash it to your vehicle. We eliminate that entire step. By providing us with your Vehicle Identification Number (VIN) during checkout, we program the module with the latest GM-certified software before it even leaves our facility. This ensures perfect communication between the module and your vehicle’s other systems, restoring factory performance and reliability right out of the box.
A Straightforward Guide to Installation
Replacing the FSCM is a job most DIYers can handle with basic tools. On most GM trucks and SUVs like the Yukon, it’s mounted in an accessible location. Here’s a general guide:
- Safety First: Always disconnect the negative terminal from your vehicle’s battery before starting any electrical work.
- Locate the Module: On your 2010-2012 Yukon XL 1500, the FSCM is typically mounted to the driver’s side (LH) frame rail, often near the spare tire.
- Disconnect and Remove: Carefully unplug the electrical connectors. Be gentle with the locking tabs, as they can become brittle over time. Then, unbolt the old module from the frame.
- Install the New Module: Bolt the new, pre-programmed FSCM into place. Securely plug in the electrical connectors until they click.
- Final Steps: Reconnect the negative battery terminal. Turn the key to the ‘On’ position for 10 seconds (without starting) to allow the systems to initialize, then start the engine.
Verified Vehicle Compatibility

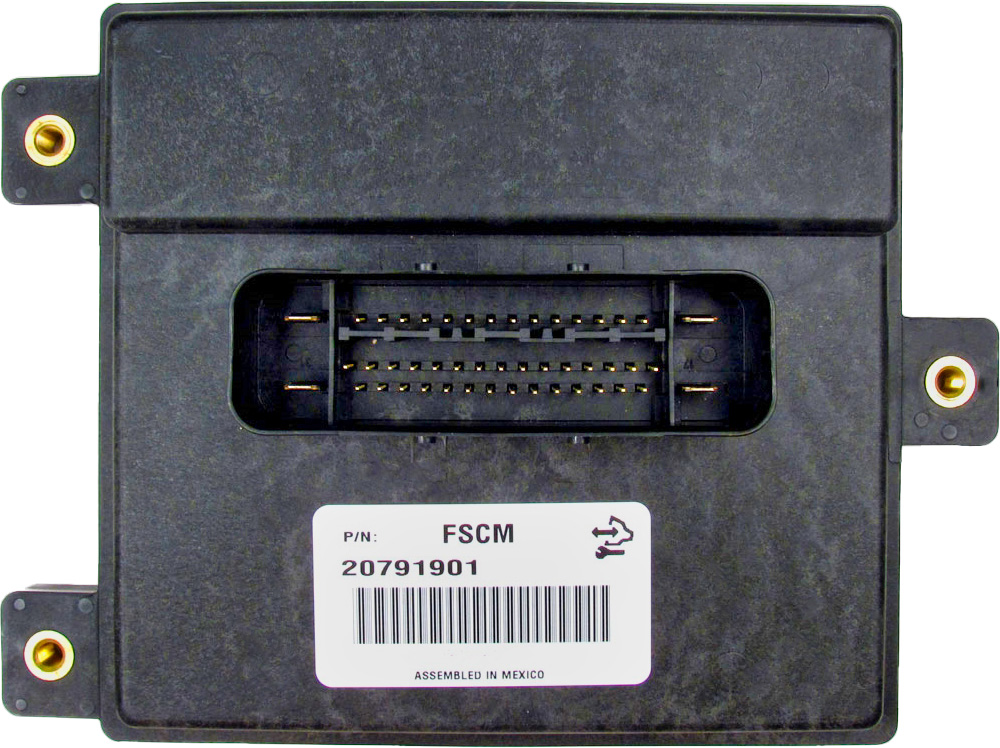

This module is a direct-fit replacement for a wide range of General Motors vehicles and is compatible with part numbers 20791901, 20827745, 20877116, and 20850927. Please verify your vehicle is on the list below. Fitment is guaranteed when you provide your VIN for programming.
Cadillac:
Escalade (2010-2012)
Escalade ESV (2010-2012)
Escalade EXT (2010-2012)
CTS (2010-2012)
Chevrolet:
Avalanche 1500 (2010-2012)
Captiva Sport (2012)
Colorado (2010-2012)
Express 1500 Van (2010-2012)
Impala (2012)
Silverado 1500 (2010-2012)
Suburban 1500 (2010-2012)
Tahoe (2010-2012)
Traverse (2010-2012)
GMC:
Acadia (2010-2012)
Canyon (2010-2012)
Savana 1500 Van (2010-2012)
Sierra 1500 (2010-2012)
Sierra Denali 1500 (2011-2012)
Yukon (2010-2012)
Yukon XL 1500 (2010-2012)
Buick, Hummer, Saturn:
Enclave (2010-2012)
LaCrosse (2010-2012)
Regal (2011-2012)
Hummer H3 (2010)
Outlook (2010)
Vue (2010)
Frequently Asked Questions
Why do you need my VIN?
Your VIN is required to load the correct, vehicle-specific GM software onto the module. This ensures it functions perfectly with your Yukon XL’s engine and electrical systems, just like a part from the dealer, but without the hassle.
Is this part difficult to install?
No, the physical installation is straightforward for most people with basic mechanical skills. Since we handle the programming, it becomes a simple bolt-off, bolt-on process.
What does the Fuel System Control Module (FSCM) do?
The FSCM acts as the brain for your fuel pump. It receives commands from the main computer (ECM) and precisely regulates the voltage and speed of the fuel pump to deliver the exact amount of fuel the engine needs at any given moment.
Is a failing FSCM a common problem on these GM trucks?
Yes, from my experience in the shop, it’s a very common failure point. The module’s location on the frame rail exposes it to moisture, salt, and debris, which can lead to corrosion and internal electronic failure over time.
Will this fix a P069E trouble code?
A P069E code indicates a performance or control circuit issue with the Fuel Pump Control Module. In the vast majority of cases, replacing the FSCM with this pre-programmed unit will resolve this specific code and the related symptoms.
