Restore Your Trax’s Performance and Reliability
Is your 2013-2014 Chevrolet Trax experiencing frustrating issues like stalling, hesitation during acceleration, or a no-start condition? A failing Fuel Pump Control Module (FPCM), also known as a Fuel System Control Module (FSCM), is often the culprit. This critical component regulates the voltage sent to your fuel pump, ensuring your engine receives the precise amount of fuel it needs. When it fails, it can lead to inconsistent fuel pressure, triggering a check engine light and leaving you stranded. Don’t let a faulty module dictate your vehicle’s reliability. This is the direct, dependable solution you need.
As a technician with over two decades of experience, I’ve seen countless drivers replace their fuel pump only to find the problem persists. The issue wasn’t the pump; it was the FPCM. We eliminate the guesswork and the costly trip to the dealership. This module is not just a replacement part; it’s a complete solution. We use your vehicle’s VIN to program it with the latest GM software updates before it even leaves our facility. This ensures perfect communication with your vehicle’s computer systems and restores performance to factory specifications. This is the key to a lasting repair for your 2013-2014 Trax Fuel Module.
From the Diagnostic Bay: The Intermittent Stall Case
A customer brought in a 2014 Chevy Trax with a complaint that stumped two other shops: it would randomly stall at stoplights, but not every time. There were no consistent trouble codes, just a history log of a P069E (Fuel Pump Control Module Commanded On). They had already replaced the fuel pump, but the issue remained. After hooking up my scan tool and monitoring the FPCM data stream, I saw the commanded fuel pressure was stable, but the module’s duty cycle would erratically drop to zero, cutting power to the pump. This confirmed the FPCM was failing internally under specific thermal conditions. We installed one of our pre-programmed modules, and the problem was solved instantly. It’s a classic case where understanding the system points directly to the module, not the pump.
Common Signs of a Failing Fuel Pump Control Module
- ✔ Engine stalling, especially when coming to a stop or under load.
- ✔ Difficulty starting the engine or a complete no-start condition.
- ✔ Hesitation or stumbling during acceleration.
- ✔ Reduced engine power and poor fuel economy.
- ✔ An active Check Engine Light with codes like P069E, P0230, or U0109.
A Straightforward Guide to Your FPCM Installation
Installing your new 2013-2014 Trax Fuel Module is a manageable job for a confident DIYer. It’s typically located in the right rear quarter panel area.
- Safety First: Disconnect the negative terminal from your vehicle’s battery to prevent any electrical shorts.

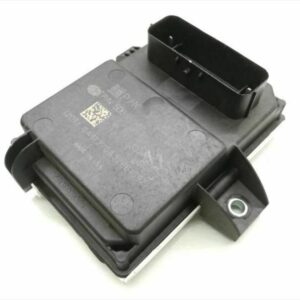

- Locate the Module: On the Trax, access the module by removing the interior trim panel in the right rear cargo area. It’s a small black box with electrical connectors.
- Disconnect and Remove: Carefully unplug the electrical connectors. Note their orientation. Then, unbolt the module from its mounting bracket.
- Install the New Module: Bolt the new, pre-programmed FPCM into place. Reconnect the electrical connectors securely.
- Final Steps: Reinstall the interior trim panel and reconnect the negative battery terminal. Start the vehicle to confirm the repair is successful.
Verified Vehicle Compatibility List
This module is a direct-fit replacement for a wide range of GM vehicles. It is compatible with part numbers 22874299 and 22874300. Please verify your vehicle is on the list below. We program the module specifically for your vehicle using the VIN you provide after purchase.
- Buick Encore: 2013-2014 (RH inner quarter panel)
- Buick Verano: 2013-2014 (RH inner quarter panel)
- Cadillac XTS: 2013-2014 (right rear quarter panel)
- Chevrolet Camaro: 2014 (3.6L & 6.2L, quarter panel behind right hand door)
- Chevrolet Caprice: 2014
- Chevrolet Cruze: 2013-2014 (RH inner quarter panel)
- Chevrolet Impala: 2014 (New Style, VIN 1)
- Chevrolet Orlando: 2013 (RH inner quarter panel)
- Chevrolet Sonic: 2013-2014 (RH inner quarter panel)
- Chevrolet Trax: 2013-2014 (RH inner quarter panel)
- Chevrolet Volt: 2013-2014 (RH inner quarter panel)
By purchasing from us, you’re getting more than just a part. You’re getting a professionally prepared component that’s ready for installation right out of the box, backed by years of diagnostic experience. Fix it right the first time with a properly programmed 2013-2014 Trax Fuel Module.
