Restore Peak Performance to Your GM Vehicle

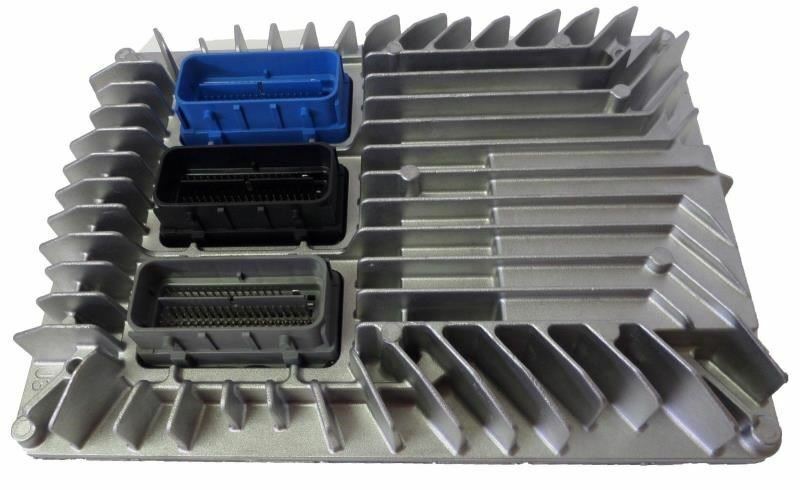

Is your vehicle plagued by a persistent Check Engine Light, rough idling, or frustrating stalling issues? A failing Engine Control Module (ECM) is often the culprit behind these baffling problems. As the central computer for your engine, the ECM governs everything from fuel mixture and ignition timing to transmission shifting and emissions control. When it falters, the entire vehicle’s performance suffers. This isn’t just an annoyance; it can lead to poor fuel economy, failed emissions tests, and even leave you stranded. This listing is for a direct-fit, reliable replacement ECM, part number 12651994, which serves as the definitive solution to restore your vehicle’s factory performance and reliability.
The biggest hurdle in replacing an ECM has always been the expensive and time-consuming programming required at a dealership. We eliminate that step entirely. Before we ship your part, we will flash it with the latest GM-certified software updates, precisely matched to your vehicle using your VIN. This means your new Programmed ECM 12651994 arrives ready for a straightforward installation, saving you hundreds of dollars and significant downtime.
Case Study: A Tricky Diagnosis
I recently had a 2013 Chevy Malibu in my bay that was driving the owner crazy. It had an intermittent misfire on cylinder 3 (P0303), but only under load. The owner had already replaced the spark plug, ignition coil, and fuel injector, but the problem persisted. My scan tool showed good data from all sensors. On a hunch, I back-probed the injector and coil control wires at the ECM connector. I discovered the signal from the ECM driver for cylinder 3 was dropping out inconsistently. The internal circuitry of the original ECM was failing. We installed one of these VIN-programmed modules, performed the security relearn, and the misfire was gone for good. It’s a classic example of how a faulty ECM can mimic other component failures.
Common Signs of a Failing Engine Computer
If you’re experiencing any of the following, a faulty ECM could be the root cause. In my 20+ years of experience, these are the most frequent indicators I see in the shop:
- ✔ Unexplained Check Engine Light (CEL) illumination.
- ✔ Engine stalling, stuttering, or hesitating during acceleration.
- ✔ A noticeable drop in fuel efficiency.
- ✔ The engine cranks but refuses to start (no-start condition).
- ✔ Communication error codes, such as U0100 (Lost Communication with ECM).
- ✔ Internal module fault codes like P0601, P0606, or P062F.
- ✔ Harsh or erratic automatic transmission shifting.
A Straightforward Guide to Installation
Installing your new ECM is a manageable job for a DIY enthusiast. By following these steps carefully, you can get your vehicle back on the road without a trip to the mechanic.
- Safety First: Always disconnect the negative terminal from your vehicle’s battery and wait at least 15 minutes for the system capacitors to discharge.
- Locate the ECM: On most compatible vehicles like the Orlando or Captiva Sport, the ECM is found in the engine compartment, often on the driver’s side near the air filter box or firewall. Refer to your vehicle’s service manual for the exact location.
- Disconnect the Connectors: Carefully release the locking tabs on the wiring harness connectors and pull them straight out from the module. Never force them. Inspect the pins for any corrosion or damage.
- Remove the Old Module: Unbolt the old ECM from its mounting bracket. Keep the hardware, as you will need it to install the new unit.
- Install the New ECM: Mount your new, pre-programmed ECM onto the bracket and secure it with the original hardware.
- Reconnect Everything: Firmly plug the wiring harness connectors back into the new module until they click into place. Reconnect the negative battery terminal.
- Perform Security Relearn: Most GM vehicles require a security relearn procedure to sync the new ECM with your vehicle’s anti-theft system. This typically involves turning the key to the ‘ON’ position for 10-15 minutes, then ‘OFF’ for 10 seconds, and repeating this cycle three times. Your engine should then start normally.
Will This Fit My Vehicle?
This ECM is a guaranteed fit for a wide range of General Motors vehicles. It is a direct replacement for part numbers 12651994, 12643248, 12652814, and AA69. Please verify your original part number or consult the list below. If your vehicle is listed, this module is the correct fit.
ORLANDO 12-13 (LH engine compartment), ID 12643248
ACADIA 12 (behind fan shroud)
CAMARO 12 3.6L, ID 12643248 or 12651994
CAPRICE 12-13 3.6L
CAPTIVA SPORT 12-13 (LH engine compartment), ID 12651994 or 12643248
CTS 12-13 3.0L or 3.6L
CTS 14 Coupe & SW, 3.0L or 3.6L
ENCLAVE 12 (behind fan shroud)
EQUINOX 12 (LH engine compartment)
IMPALA 12-13 (air cleaner bracket)
IMPALA 14-16 VIN W (Limited)
LACROSSE 12 (LH engine compartment)
MALIBU 13 2.4L, ID 12651994, 12643248, or 12652814
REGAL 12 (LH engine compartment)
SRX 12 (LH engine compartment)
TERRAIN 12 (LH engine compartment)
TRAVERSE 12 (behind fan shroud)
VERANO 12-13 2.4L
Frequently Asked Questions
Frequently Asked Questions
Do I need to do any programming myself?
No. We handle all the programming before shipping. We flash the module with the latest GM software using the VIN you provide, so it’s ready for installation right out of the box.
Where do I provide my VIN?
After you complete your purchase, you can send us your 17-digit Vehicle Identification Number (VIN) through the messaging system or add it as a note during checkout. We cannot ship the part until we have your VIN.
What is the ‘security relearn’ procedure?
This is a simple, tool-free process that syncs the new ECM to your vehicle’s anti-theft system. It’s required on most GM vehicles and typically takes about 30 minutes to complete using only your ignition key. We include instructions to guide you.
Will this fix my specific problem?
This ECM is a direct solution for issues caused by a faulty module. While it resolves a wide range of symptoms, we always recommend a proper diagnosis by a qualified mechanic to confirm the ECM is the source of the problem before purchasing.
Is this compatible with other part numbers?
Yes, this ECM, part number 12651994, is a fully compatible and interchangeable replacement for part numbers 12643248, 12652814, and AA69.
