Restore Your Cadillac’s Core Performance
Is your 2018 Cadillac XTS suffering from frustrating and unpredictable issues like stalling, a persistent Check Engine Light, or a complete no-start condition? The Engine Control Module (ECM) is the sophisticated brain of your vehicle, orchestrating critical functions like fuel delivery, spark timing, and emissions. When it falters, the symptoms can be widespread and difficult to diagnose. This isn’t just an inconvenience; it’s a matter of reliability and safety.

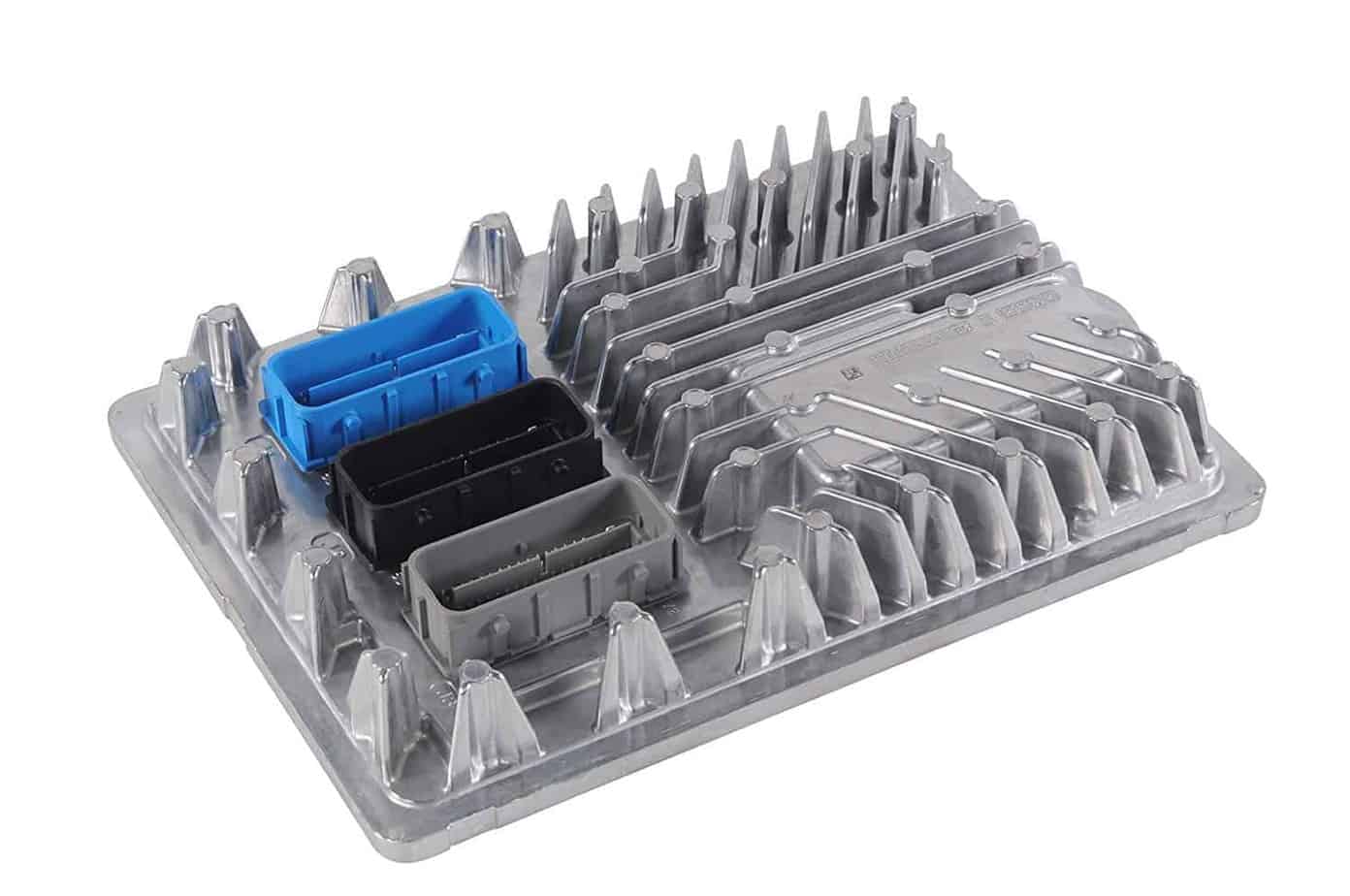

We provide a dependable solution: a genuine GM Engine Control Module, part number 12680656, that arrives at your door pre-programmed for your exact vehicle. Simply provide us with your Vehicle Identification Number (VIN) during checkout, and our technicians will flash the module with the latest, most stable software from GM. This critical step ensures the ECM communicates perfectly with your XTS’s specific systems, saving you a costly trip to the dealership for programming.
From the Diagnostic Bay: The Intermittent No-Start Mystery
I remember a 2018 Escalade (which uses a similar ECM) that came into my shop after visiting two other garages. The owner was frustrated with an intermittent no-start condition that only happened on hot days after a long drive. Other techs had replaced the battery and starter to no avail. After running diagnostics, I noticed the ECM wasn’t communicating when the fault occurred. By using a heat gun to carefully warm the module, I replicated the exact no-start condition on demand. The internal circuits were failing under thermal stress—a classic sign of ECM failure. A pre-programmed module like this one had the vehicle running reliably in under an hour (plus the security relearn time). It’s a reminder that the ‘brain’ is often the root cause of the most puzzling symptoms.
Common Signs of a Failing Engine Computer
If your vehicle’s computer is failing, you might be experiencing one or more of the following issues. A faulty 2018 XTS ECM can mimic other problems, so a proper diagnosis is key.
- ✔ Check Engine Light: Often with internal processor fault codes like P0601, P0606, or communication codes like U0100.
- ✔ Engine Stalling or Misfiring: The engine may stall unexpectedly, either while driving or at idle.
- ✔ No-Start Condition: The engine cranks but refuses to start due to a lack of fuel or spark command from the ECM.
- ✔ Poor Performance & Fuel Economy: A noticeable drop in power, acceleration, and miles per gallon.
- ✔ Erratic Transmission Shifting: The ECM plays a key role in communicating with the transmission controller, and a fault can cause harsh or incorrect shifting.
Your Straightforward Installation Guide
Replacing the ECM is a manageable task for a confident DIYer. However, please read all steps, especially the final one, before beginning.
- Safety First: Always disconnect the negative terminal from your vehicle’s battery to prevent electrical shorts.
- Locate the ECM: On the 2018 Cadillac XTS, the ECM is typically found in the engine bay. Consult a service manual for the exact location on your specific vehicle.
- Disconnect and Remove: Carefully unplug the electrical connectors. They have locking tabs that must be released first. Then, unbolt the module from its mounting bracket.
- Install the New Module: Bolt the new, pre-programmed ECM into place. Reconnect the electrical connectors, ensuring they click securely into place.
- Reconnect Battery: Re-attach the negative battery terminal.
- CRITICAL FINAL STEP – Security Relearn: Attempt to start the vehicle. If it starts and runs, you are all set. If it cranks but does not start, the vehicle’s anti-theft system must be synchronized with the new ECM. This procedure requires a GM-specific tool (like Tis2web/Techline Connect) and is the responsibility of the installer. This is a standard security measure on all modern GM vehicles. Other procedures like a crankshaft variation relearn may also be required.
Will This Fit My Vehicle?
This module is a direct-fit replacement for several GM cars, trucks, and vans. Please verify your vehicle and original part number against this list. This part is compatible with part numbers 12704475, 12692069, 12680656, 12686383, and 12688528.
- Cadillac Escalade: 2018
- Cadillac Escalade ESV: 2018
- Cadillac XTS: 2018 (3.6L, VIN 8, opt LF3)
- Chevrolet Corvette: 2018-2019
- Chevrolet Express 2500/3500 Van: 2018 (4.3L)
- Chevrolet Silverado 1500: 2018 (ID 12680656)
- Chevrolet Suburban 1500: 2018
- Chevrolet Tahoe: 2018
- GMC Savana 2500/3500 Van: 2018 (4.3L)
- GMC Sierra 1500: 2018 (ID 12680656)
- GMC Sierra Denali 1500: 2018 (ID 12686383)
- GMC Yukon / Yukon XL 1500: 2018
Frequently Asked Questions
Frequently Asked Questions
Do I need to program this 2018 XTS ECM?
No. We handle the programming for you before shipment. Just provide your vehicle’s VIN at checkout, and we will flash the module with the correct GM-certified software for your car.
What is a VIN and where do I find it?
The VIN is your car’s unique 17-digit serial number. You can find it on the driver’s side of the dashboard (visible through the windshield), on the driver’s side door jamb sticker, or on your vehicle’s registration and insurance documents.
What is a theft deterrent relearn?
It’s a security procedure that synchronizes your new ECM with the vehicle’s other modules, like the Body Control Module and ignition key. This handshake confirms the new part is not stolen and allows the engine to start. It’s a required step if the vehicle does not start after installation.
Can I perform the theft relearn myself?
For most DIYers, the answer is no. This procedure requires access to GM’s proprietary software, such as Tis2web or Techline Connect, and a compatible scan tool. It is typically performed by a qualified mechanic or a dealership.
Will this part fix my vehicle’s problem for certain?
This module will resolve any issues directly caused by a faulty ECM. However, since many symptoms can overlap with other failing parts (like sensors or wiring), we always recommend a thorough diagnosis to confirm the ECM is the root cause before ordering.
Does this ECM fit vehicles other than the Cadillac XTS?
Yes, it does. This module is compatible with a wide range of 2018-2019 GM vehicles. Please refer to our detailed “Will This Fit My Vehicle?” section above to confirm compatibility.
