Restore Your Vehicle’s Core Performance and Reliability

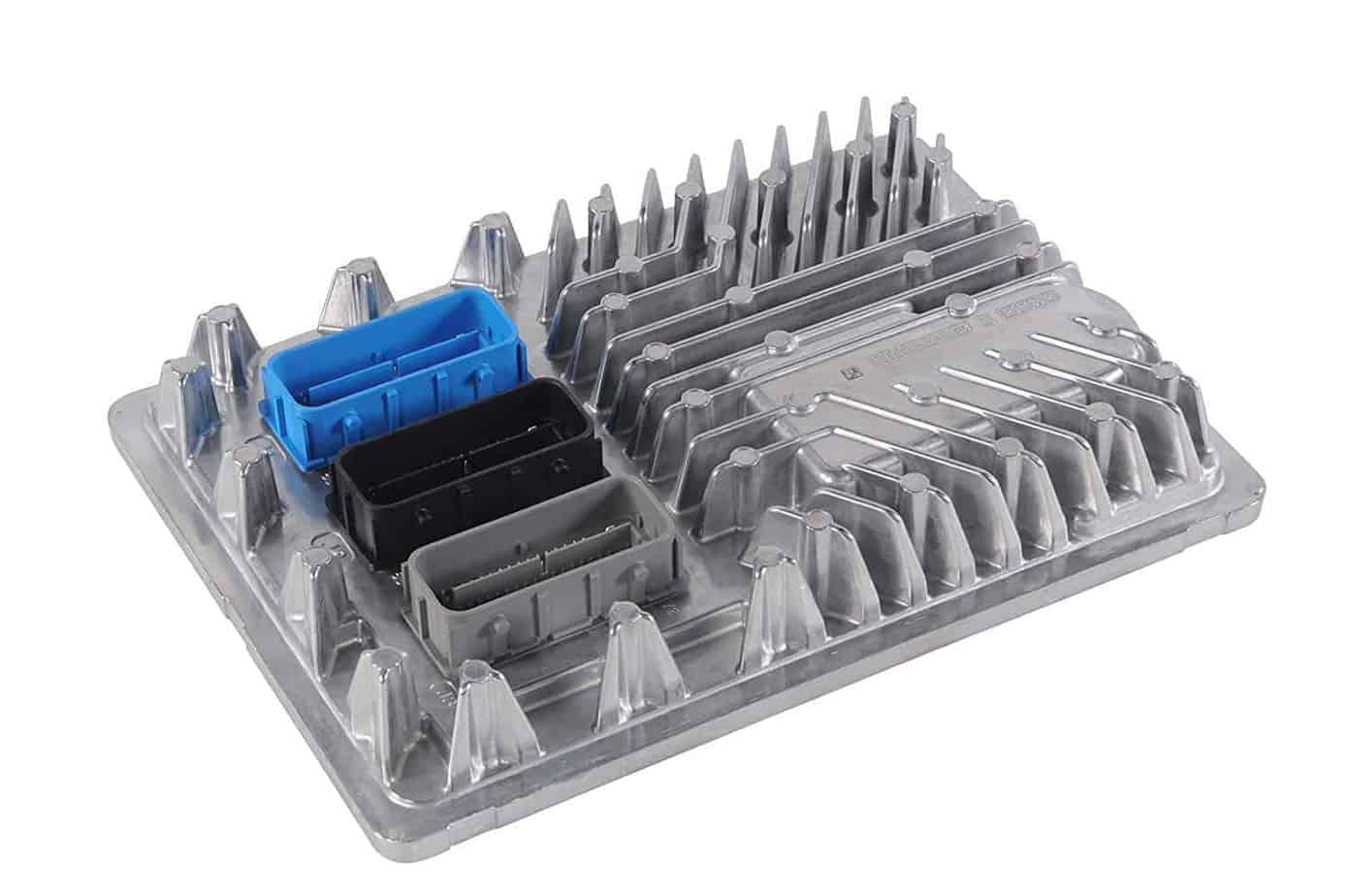

If you’re dealing with frustrating and unpredictable engine problems—like stalling, a persistent check engine light, or a vehicle that refuses to start—the cause is often the Engine Control Module (ECM). As an experienced technician, I call the ECM the ‘brain’ of the vehicle. When it fails, it sends confusing signals that can mimic a dozen other issues, making diagnosis a headache. This Engine Control Module is the definitive solution, arriving pre-programmed with the latest GM factory software specifically for your vehicle’s VIN.
Case Study: A Tricky Diagnosis
I once had a 2017 Sierra 1500 in my bay with an intermittent no-start and random stalling that left the owner stranded twice. We checked the fuel pump, ignition system, and sensors—all tested fine. The codes were all over the place, mostly communication errors (U-codes). After hours of diagnostics, we traced it to a failing ECM. The internal processor was faulting under certain temperature conditions, causing system-wide chaos. Replacing the ECM with a VIN-programmed unit like this one solved every single issue instantly. It’s a perfect example of how one component can be the root of many seemingly unrelated problems.
Is Your GM Vehicle Showing These ECM Failure Signs?
A failing ECM can manifest in many ways. Before you start replacing expensive sensors or pumps, see if your vehicle is experiencing any of these common symptoms:
- âś” Check Engine Light is on with codes like P0601, P0606, or U0100.
- âś” The engine cranks but refuses to start.
- âś” Unexplained drops in fuel economy.
- âś” Rough idling, stalling, or hesitation during acceleration.
- âś” Automatic transmission shifting erratically or harshly.
- âś” Loss of communication with other vehicle modules.
Your Step-by-Step Installation Roadmap
Installing your new ECM is a straightforward process. However, for modern vehicles, the job isn’t finished until the new module is properly introduced to the vehicle’s security system. Follow these steps for a successful replacement.
- Safety First: Always disconnect the negative terminal from your vehicle’s battery before starting any electrical work.
- Locate the ECM: On most compatible models, the ECM is found in the engine compartment. On the Corvette, it’s located under the dash on the passenger side. Refer to your vehicle’s service manual for the exact location.
- Disconnect and Remove: Carefully unplug the wiring harness connectors. They have locking tabs that need to be released. Once disconnected, unbolt the old ECM and remove it from the vehicle.
- Install the New Module: Bolt the new, pre-programmed ECM into place. Reconnect the wiring harnesses, ensuring they click securely into position.
- Reconnect Battery: Reattach the negative battery terminal.
- CRITICAL – Perform Security Relearn: Attempt to start the vehicle. If it does not start, the vehicle’s anti-theft system has activated. You or your mechanic must perform a security relearn procedure using a GM-compliant tool with access to TIS2WEB or Techline Connect. This is a standard step for modern GM vehicles and is the responsibility of the installer.
- Additional Relearns: Depending on your vehicle, other procedures like a Crankshaft Position Variation Relearn or injector flow rate programming may be required to achieve optimal performance.
Verified Compatibility for Your GM Vehicle
This module is a direct-fit replacement for several part numbers, including 12692068, 12704476, 12686382, 12674052, 12674472, and 12678815. Please confirm your vehicle is on this list:
- 2017 Cadillac ATS: 3.6L, VIN Y (8th digit, opt LF4)
- 2017 Cadillac CTS: 6.2L (supercharged) OR 3.6L, VIN 8 (8th digit, opt LF3, twin turbo)
- 2017 Cadillac Escalade / Escalade ESV
- 2017 Cadillac XTS: 3.6L, VIN 8 (8th digit, opt LF3)
- 2017 Chevrolet Corvette
- 2016-2017 Chevrolet Silverado 1500 Pickup
- 2018 Chevrolet Silverado 1500 Pickup: (ID 12686382)
- 2017 Chevrolet Suburban 1500
- 2017 Chevrolet Tahoe
- 2016-2017 GMC Sierra 1500 Pickup
- 2018 GMC Sierra 1500 Pickup: (ID 12686382)
- 2017-2018 GMC Sierra Denali 1500
- 2017 GMC Yukon / Yukon XL 1500
What exactly is VIN programming?
What exactly is VIN programming?
VIN programming means we load the module with the specific factory software and calibrations for your exact vehicle using its unique Vehicle Identification Number (VIN). This ensures all systems communicate correctly and your engine operates as intended by the manufacturer, saving you a trip to the dealership for flashing. Simply provide your VIN at checkout.
Why is a security relearn necessary after installation?
Modern vehicles have sophisticated anti-theft systems that link the ECM to other components like the ignition and body control module. When you install a new ECM, the system sees it as an unauthorized part and prevents the engine from starting to protect against theft. The relearn procedure securely ‘introduces’ the new ECM to the vehicle, restoring normal function.
Can I perform the security relearn myself?
For these GM vehicles, the relearn requires a professional scan tool with a subscription to GM’s TIS2WEB or Techline Connect service. Most DIY enthusiasts do not have this equipment. We strongly recommend having a qualified mechanic or dealership perform this final step.
Will this part fix my check engine light?
If the check engine light is caused by an internal failure of the original ECM (e.g., DTC P0601), then yes, this replacement part will resolve the issue. However, if the light is on due to a faulty sensor or another component, that separate issue will still need to be addressed.
What information do you need from me?
After you complete your purchase, you must provide us with your vehicle’s 17-digit VIN. We cannot program and ship your module without it. This ensures you receive a part that is correctly calibrated for your vehicle’s specific options.
