Restore Your Truck’s Core Performance and Reliability

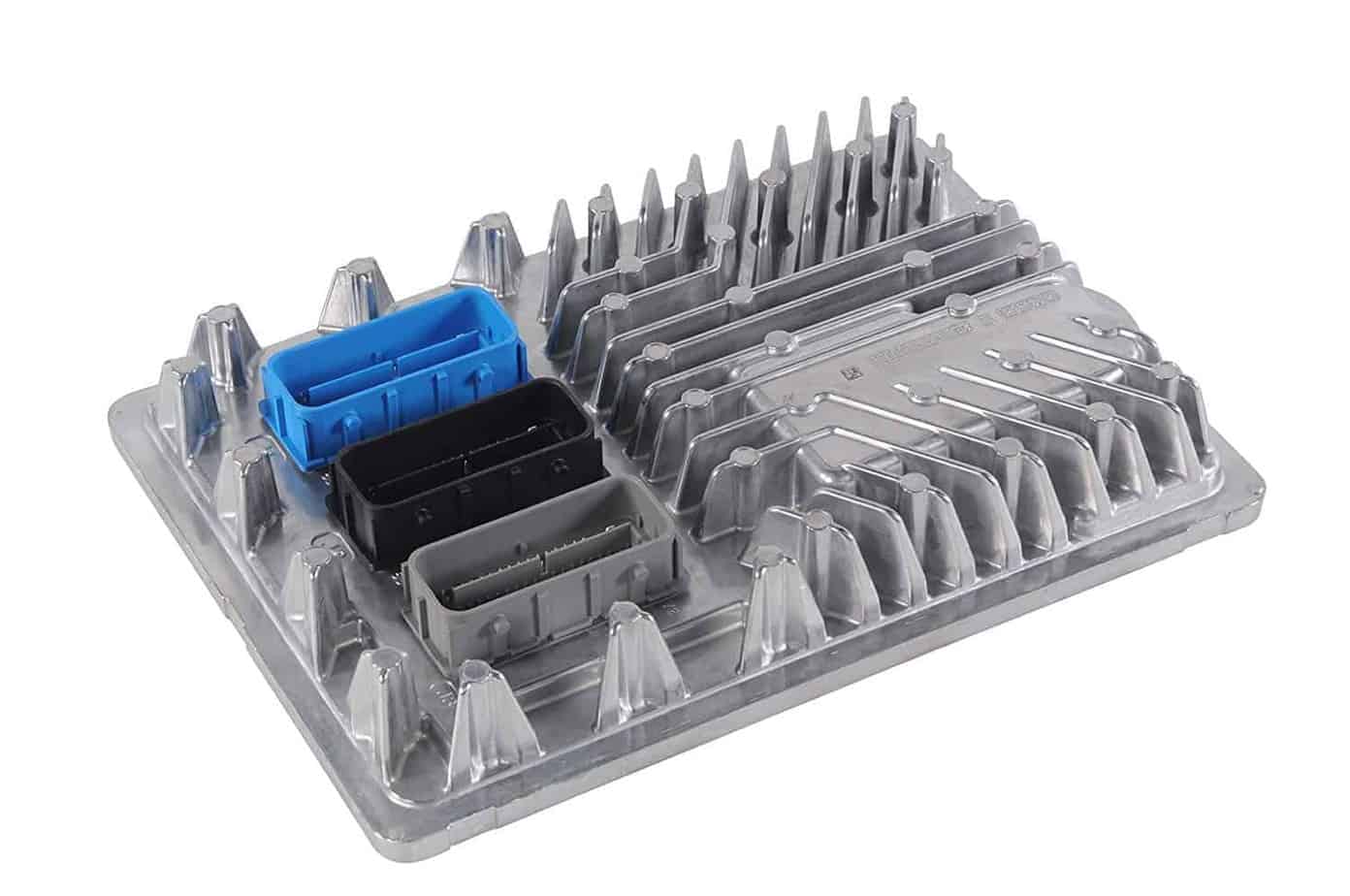

If your 2017-2018 Sierra Denali 1500 is suffering from baffling issues like intermittent stalling, poor fuel economy, a persistent check engine light, or a complete no-start condition, the problem often lies with a failing Engine Control Module (ECM). As the central computer of your truck, a faulty ECM can disrupt everything from ignition timing to transmission shifting. This isn’t just an inconvenience; it’s a critical failure that compromises your vehicle’s performance and dependability. This replacement ECM, part number 12686382, is the definitive solution to get your truck back to factory-spec operation.
We take the guesswork and dealership hassle out of the equation. Before this module ever leaves our facility, we program it with the latest official GM software calibrations, tailored specifically to your truck using the VIN you provide. This ensures that when it arrives, it’s ready to integrate with your vehicle’s systems, restoring the precise control and efficiency you expect from a premium truck like the Sierra Denali.
Case Study: A Tricky Diagnosis
I remember a 2017 Silverado that came into the shop with an intermittent no-start condition that had two other mechanics stumped. It would start fine for a week, then refuse for a day. There were no consistent trouble codes, just a generic U0100 ‘Lost Communication with ECM’ code that would pop up randomly. After checking all the wiring and power feeds to the module, we suspected an internal failure in the ECM itself. The internal processor was likely failing under certain temperature conditions. We installed one of these VIN-programmed modules, performed the security relearn, and the truck has been starting reliably for the owner ever since. It’s a classic example of how a failing ECM can cause ghost-in-the-machine problems that a simple part swap can solve.
Is Your Sierra Denali Showing These Signs?
A failing ECM can manifest in numerous ways. If you’re experiencing any of the following, it’s a strong indicator that your engine’s computer needs attention:
- ✔ Vehicle refuses to start or cranks but won’t fire up.
- ✔ Check Engine Light is illuminated with codes like P0601 (Internal Control Module Memory Check Sum Error) or P0606 (ECM/PCM Processor Fault).
- ✔ Unexplained drop in fuel efficiency.
- ✔ Engine stalling, sputtering, or misfiring unexpectedly.
- ✔ Harsh or erratic automatic transmission shifting.
- ✔ Loss of communication with scan tools.
Your Straightforward Installation Guide
Replacing the ECM is a manageable job for a DIY enthusiast or any professional technician. The most critical part is the post-installation procedure. Follow these steps carefully:
- Safety First: Always disconnect the negative terminal from your vehicle’s battery before beginning any electrical work.
- Locate the ECM: On most Sierra/Silverado models, the ECM is located in the engine compartment on the driver’s side (LH front), often near the air filter housing.
- Disconnect Connectors: Carefully release the locking tabs and unplug the large electrical connectors from the old module. Inspect them for any corrosion or damage.
- Remove the Old Module: Unbolt the old ECM from its mounting bracket. It’s typically held in place by a few small bolts.
- Install the New Module: Mount your new, pre-programmed ECM in place and securely fasten it.
- Reconnect Everything: Plug the electrical connectors firmly into the new module until they click into place. Reconnect the negative battery terminal.
- CRITICAL – Perform Relearn Procedures: Turn the key to the ‘ON’ position. If the vehicle does not start, a Vehicle Theft Deterrent (VTD) relearn is required. This is a mandatory security procedure that pairs the new ECM to your truck’s anti-theft system and must be done using a GM-compliant scan tool with access to Tis2web or Techline Connect. Other procedures like a crankshaft variation relearn may also be necessary. This is the responsibility of the installer.
Verified Compatibility for Your GM Vehicle
This module is a direct replacement for part number 12686382 and is interchangeable with part numbers 12692068, 12704476, 12674052, 12674472, and 12678815. It is confirmed to fit the following vehicles:
- 2017-2018 Sierra Denali 1500 (LH front engine compartment)
- 2017-2018 Silverado 1500 Pickup (LH front engine compartment)
- 2016-2017 Sierra 1500 Pickup (LH front engine compartment)
- 2016-2017 Silverado 1500 Pickup (LH front engine compartment)
- 2017 Cadillac Escalade / ESV (Engine compartment)
- 2017 Chevrolet Tahoe / Suburban 1500 (LH front engine compartment)
- 2017 GMC Yukon / Yukon XL 1500 (LH front engine compartment)
- 2017 Cadillac CTS (6.2L Supercharged or 3.6L Twin-Turbo)
- 2017 Cadillac XTS (3.6L, VIN 8, opt LF3)
- 2017 Cadillac ATS (3.6L, VIN Y, opt LF4)
- 2017 Chevrolet Corvette (RH cowl under dash)
Frequently Asked Questions
Frequently Asked Questions
Why do I need to provide my VIN?
Your Vehicle Identification Number (VIN) is essential because it allows us to program the ECM with the exact software and calibrations specified by GM for your truck’s engine, transmission, and options. This ensures seamless integration and optimal performance, saving you a trip to the dealership for programming.
What is a ‘theft relearn’ and why is it necessary?
The Vehicle Theft Deterrent (VTD) relearn is a security procedure that syncs the new ECM with your vehicle’s ignition keys and anti-theft system. Without this handshake, the system assumes a theft is in progress and will prevent the engine from starting. It’s a mandatory step for most modern GM vehicles when the ECM is replaced.
Is this part difficult to install myself?
The physical replacement of the module is straightforward for anyone with basic mechanical skills. However, the final installation step requires access to a professional GM-compliant diagnostic tool (like Tis2web/Techline Connect) to perform the security relearn. If you don’t have this tool, you will need assistance from a qualified mechanic to complete the job.
Will this ECM fix my check engine light?
If the check engine light is caused by an internal failure of the original ECM (e.g., codes P0601, P0606), then yes, this replacement module is the correct fix. However, if the light is on due to other issues like a bad sensor or wiring problem, those underlying faults will still need to be diagnosed and repaired separately.
What happens if I don’t do the other relearn procedures?
While the theft relearn is for starting the vehicle, other procedures like the crankshaft position variation relearn are critical for engine performance. Skipping it can lead to inaccurate misfire detection and poor running conditions. It’s best practice to perform all required setup procedures for the new module.
