Restore Peak Performance to Your GM Truck
As a technician with over 20 years of hands-on diagnostic experience, I’ve seen firsthand the frustration a failing Engine Control Module (ECM) can cause. Your 2016-2018 Sierra 1500 is a powerful, complex machine, and the ECM is its brain. When it starts to fail, you get baffling symptoms: poor fuel economy, rough idling, stalling, or a check engine light that just won’t go away. This isn’t just an inconvenience; it affects your truck’s reliability and performance.

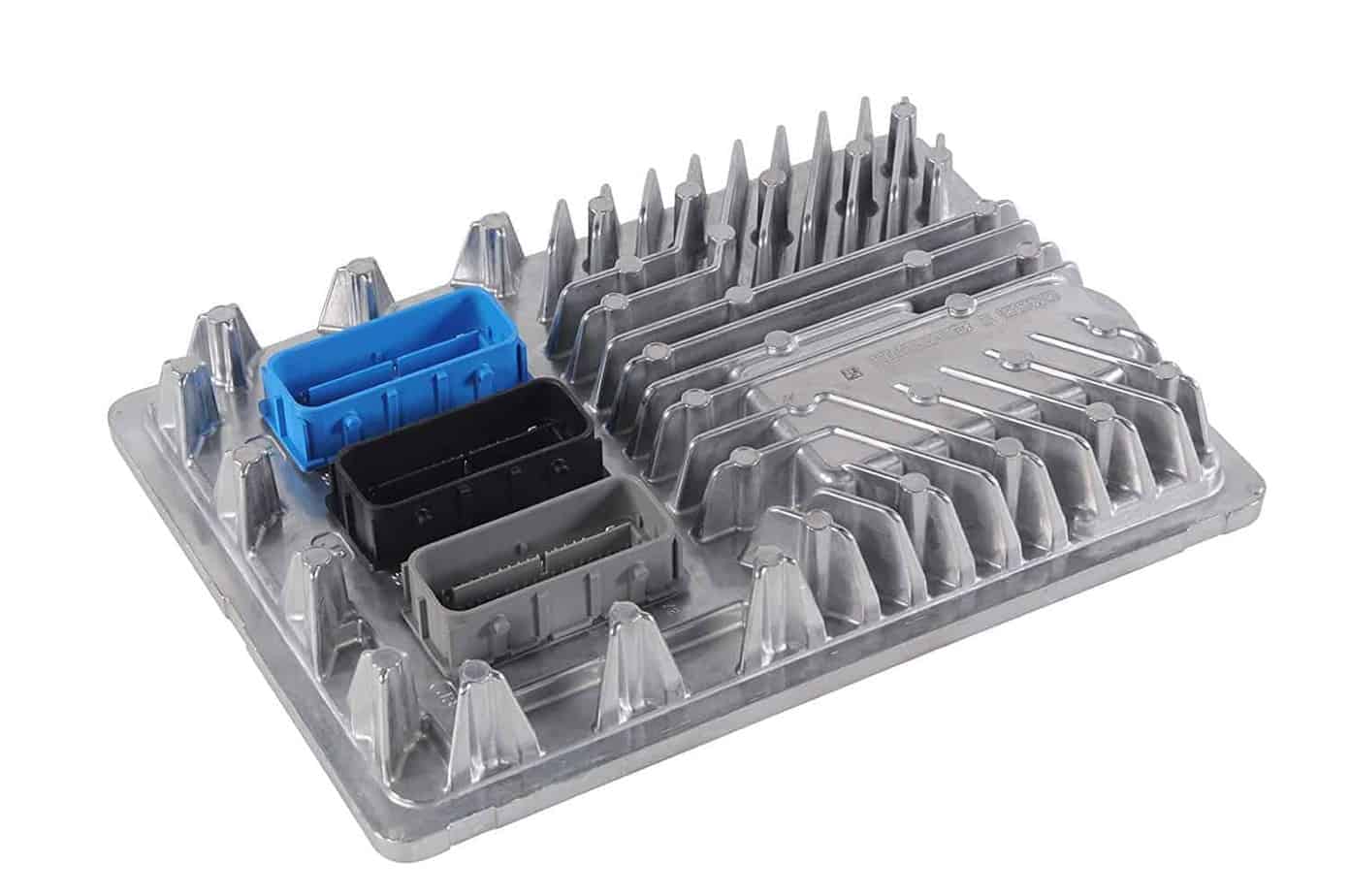

This is a direct-fit replacement Engine Control Module, part number 12692068, designed to solve those problems. Forget the high costs and scheduling hassles of a dealership visit. We take the complexity out of the equation. Before we ship this module to you, our experts will program it with the very latest GM-certified software, specifically matched to your truck using its unique Vehicle Identification Number (VIN). This ensures that when you receive it, it’s ready for the final installation and vehicle handshake procedures, getting you back on the road with confidence.
From the Service Bay: The Ghost in the Machine
From the Service Bay: The Ghost in the Machine
A customer brought in his ’17 Silverado with a complaint that stumped two other shops. The truck would randomly refuse to start, but only after it was warm. Other times, it would shift erratically between 2nd and 3rd gear. There were no consistent trouble codes, just a few random communication errors (U-codes) that would come and go. We checked wiring, sensors, and even the battery. Everything seemed fine. Drawing on experience, I suspected the ECM was failing internally, but only under specific thermal conditions. We swapped in a VIN-programmed module like this one, performed the security and crankshaft relearn, and the truck ran perfectly. The internal processor was failing, creating ‘ghost’ issues that are impossible to trace with a simple scan tool. This is a classic ECM failure scenario.
Is Your Sierra Showing These Signs of ECM Failure?
A faulty ECM can manifest in numerous ways. If you’re experiencing any of the following, it’s a strong indicator that the brain of your engine needs attention. In my shop, these are the most common complaints that lead to an ECM diagnosis:
- ✔ Check Engine Light is on with codes like P0601 (Internal Control Module Memory Check Sum Error), P0606 (ECM/PCM Processor Fault), or U0100 (Lost Communication With ECM/PCM).
- ✔ The engine cranks but refuses to start.
- ✔ Noticeable decrease in fuel efficiency.
- ✔ Rough or inconsistent engine idle.
- ✔ Misfiring, stalling, or hesitation during acceleration.
- ✔ Automatic transmission shifting problems or harsh shifts.
- ✔ The vehicle fails to pass an emissions test.
Your Straightforward ECM Installation Guide
Installing your new 2016-2018 Sierra 1500 ECM is a manageable job for a confident DIYer or any professional technician. Follow these steps carefully for a successful replacement.
- Safety First: Disconnect the negative terminal from your vehicle’s battery to prevent any electrical shorts.
- Locate the ECM: On most 2016-2018 Sierra and Silverado models, the ECM is located in the engine compartment on the driver’s side, near the firewall or inner fender.
- Disconnect Connectors: Carefully release the locking tabs and unplug the wiring harness connectors from the old module. Inspect them for any corrosion or damage.
- Remove the Old Module: Unbolt the old ECM from its mounting bracket. Keep the hardware as you will need it for the new module.
- Install the New Module: Mount your new, pre-programmed ECM onto the bracket and secure it with the original hardware.
- Reconnect Everything: Plug the wiring harness connectors firmly into the new ECM until they click into place. Reconnect the negative battery terminal.
- Perform Relearn Procedures: This is a critical final step. The vehicle’s anti-theft system must be synchronized with the new ECM. This is known as a “Vehicle Theft Deterrent Relearn” and requires a GM-compatible scan tool with access to Tis2web or Techline Connect. Other procedures, like a Crankshaft Position Variation Relearn, may also be necessary for optimal performance. This is the responsibility of the installer.
Verified Fitment for Your GM Vehicle
This module is a guaranteed fit for a wide range of GM vehicles. While this is the correct part for a 2016-2018 Sierra 1500 ECM replacement, it also interchanges with part numbers 12704476, 12686382, 12674052, 12674472, and 12678815. Please verify your vehicle is on the list below:
- 2016-2018 Sierra 1500 / Silverado 1500
- 2017-2018 Sierra Denali 1500
- 2017 Escalade / Escalade ESV
- 2017 Tahoe / Suburban 1500
- 2017 Yukon / Yukon XL 1500
- 2017 Cadillac CTS (3.6L Twin Turbo / 6.2L Supercharged)
- 2017 Cadillac XTS (3.6L, VIN 8)
- 2017 Cadillac ATS (3.6L, VIN Y)
- 2017 Corvette
Frequently Asked Questions
From the Service Bay: The Ghost in the Machine
A customer brought in his ’17 Silverado with a complaint that stumped two other shops. The truck would randomly refuse to start, but only after it was warm. Other times, it would shift erratically between 2nd and 3rd gear. There were no consistent trouble codes, just a few random communication errors (U-codes) that would come and go. We checked wiring, sensors, and even the battery. Everything seemed fine. Drawing on experience, I suspected the ECM was failing internally, but only under specific thermal conditions. We swapped in a VIN-programmed module like this one, performed the security and crankshaft relearn, and the truck ran perfectly. The internal processor was failing, creating ‘ghost’ issues that are impossible to trace with a simple scan tool. This is a classic ECM failure scenario.
