If you’re dealing with the frustrating and unpredictable electrical problems in your 2012-2014 GM truck or SUV, you’ve come to the right place. As a technician with over two decades of experience under the hood, I’ve seen firsthand how a failing Body Control Module (BCM) can turn a reliable vehicle into a source of constant headaches. This isn’t just a part; it’s the central command for your vehicle’s body electronics, and when it fails, chaos ensues. This replacement BCM is the definitive solution, arriving at your door pre-programmed with the latest GM software matched specifically to your vehicle’s VIN.
Forget the expensive trip to the dealership for programming. We handle the complex part for you. Simply provide your VIN at checkout, and our experts will flash the module, making it a true plug-and-play fix. This process ensures all the specific options and features your vehicle came with from the factory work correctly right out of the box. This is the most efficient and cost-effective way to restore your vehicle’s functionality and your peace of mind.
Case Study: A Tricky Diagnosis
I remember a 2013 Silverado that came into the shop with a laundry list of bizarre symptoms. The owner said the radio would sometimes not turn off, the dome lights flickered randomly, and occasionally, the truck wouldn’t start, showing a ‘Service Theft Deterrent System’ message. He’d already replaced the battery and checked the grounds. After connecting my scan tool, I found a slew of U-codes (communication errors) pointing to the BCM. We installed one of our VIN-programmed modules, and within an hour, every single issue was resolved. It’s a classic example of how a single faulty 2014 Suburban 1500 BCM can create a storm of confusing electrical gremlins.
Is Your GM Truck or SUV Showing These Symptoms?
A failing BCM can manifest in numerous ways, often seeming unrelated. If your vehicle is experiencing any of the following, a faulty BCM is the likely culprit:
- ✔ Power windows, mirrors, or door locks working intermittently or not at all.
- ✔ Interior or exterior lights staying on, flickering, or not turning on.
- ✔ The security system acting erratically, causing no-start conditions (Service Theft Deterrent System light).
- ✔ Inaccurate gauge readings or gauges not working.
- ✔ Key fob failing to lock or unlock the doors.
- ✔ Diagnostic Trouble Codes (DTCs) such as U0140, U0155, B1325, or other B-series and U-series codes.
A Straightforward Guide to Installation
Installing your new 2014 Suburban 1500 BCM is a manageable job for a DIY enthusiast. The module is typically located under the driver’s side of the dashboard, near the steering column. While specific steps can vary slightly, here is a general guide:
- Safety First: Always disconnect the negative terminal from your vehicle’s battery before starting any electrical work.
- Access the Module: You will likely need to remove the lower dash panel or knee bolster to gain access to the BCM. It’s usually held in place by a few screws or clips.
- Disconnect and Remove: Carefully unplug the multiple electrical connectors from the old BCM. They have locking tabs that need to be depressed. Once disconnected, remove the old module from its mounting bracket.
- Install the New BCM: Mount your new, pre-programmed BCM in the same location and securely reconnect all the electrical connectors. Ensure they click into place.
- Reassemble and Reconnect: Reinstall the dash panels you removed and reconnect the negative battery terminal.
- Perform Final Checks: Start the vehicle and test all body functions—windows, locks, lights, radio, etc. Note that some vehicles may require the post-installation procedures mentioned below.
Verified Vehicle Compatibility

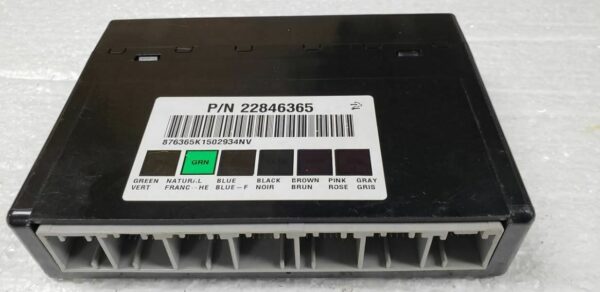

This module is a direct-fit replacement for part numbers 22737275, 22846365, and 22846364. It is guaranteed to be compatible with the following GM models:
- ✔ 2012-2014 Cadillac Escalade, Escalade ESV, Escalade EXT
- ✔ 2012-2013 Chevrolet Avalanche 1500
- ✔ 2012-2013 Chevrolet Silverado 1500 / 2500 / 3500
- ✔ 2014 Chevrolet Silverado 2500 / 3500
- ✔ 2012-2014 Chevrolet Suburban 1500
- ✔ 2012-2013 Chevrolet Suburban 2500
- ✔ 2012-2014 Chevrolet Tahoe
- ✔ 2012-2013 GMC Sierra 1500 / 2500 / 3500
- ✔ 2014 GMC Sierra 2500 / 3500
- ✔ 2012-2014 GMC Yukon, Yukon XL 1500
- ✔ 2012-2013 GMC Yukon XL 2500
Please ensure your vehicle is on this list before ordering. The best way to guarantee compatibility is to match your original part number to one of the numbers listed above.
Frequently Asked Questions
Frequently Asked Questions
2014 Suburban 1500 BCM
What information do you need from me?
After you place your order, you must provide us with your vehicle’s 17-digit VIN (Vehicle Identification Number). We cannot program and ship your without it.
Disclaimer: While this guide is comprehensive, specific procedures can vary by vehicle. Always consult a factory service manual or a qualified technician for guidance.
