Restore Peak Performance to Your Cadillac XTS
As a technician with over two decades of experience under the hood, I’ve seen firsthand how a failing Engine Control Module (ECM) can turn a sophisticated vehicle like your 2014-2016 Cadillac XTS into a source of constant frustration. If you’re dealing with a persistent check engine light, rough idling, stalling, or a sudden drop in fuel economy, the root cause is very likely the vehicle’s computer. This isn’t just an inconvenience; it’s a critical failure that affects performance, safety, and emissions. Don’t let a faulty module keep you sidelined or force you into an expensive dealership visit.

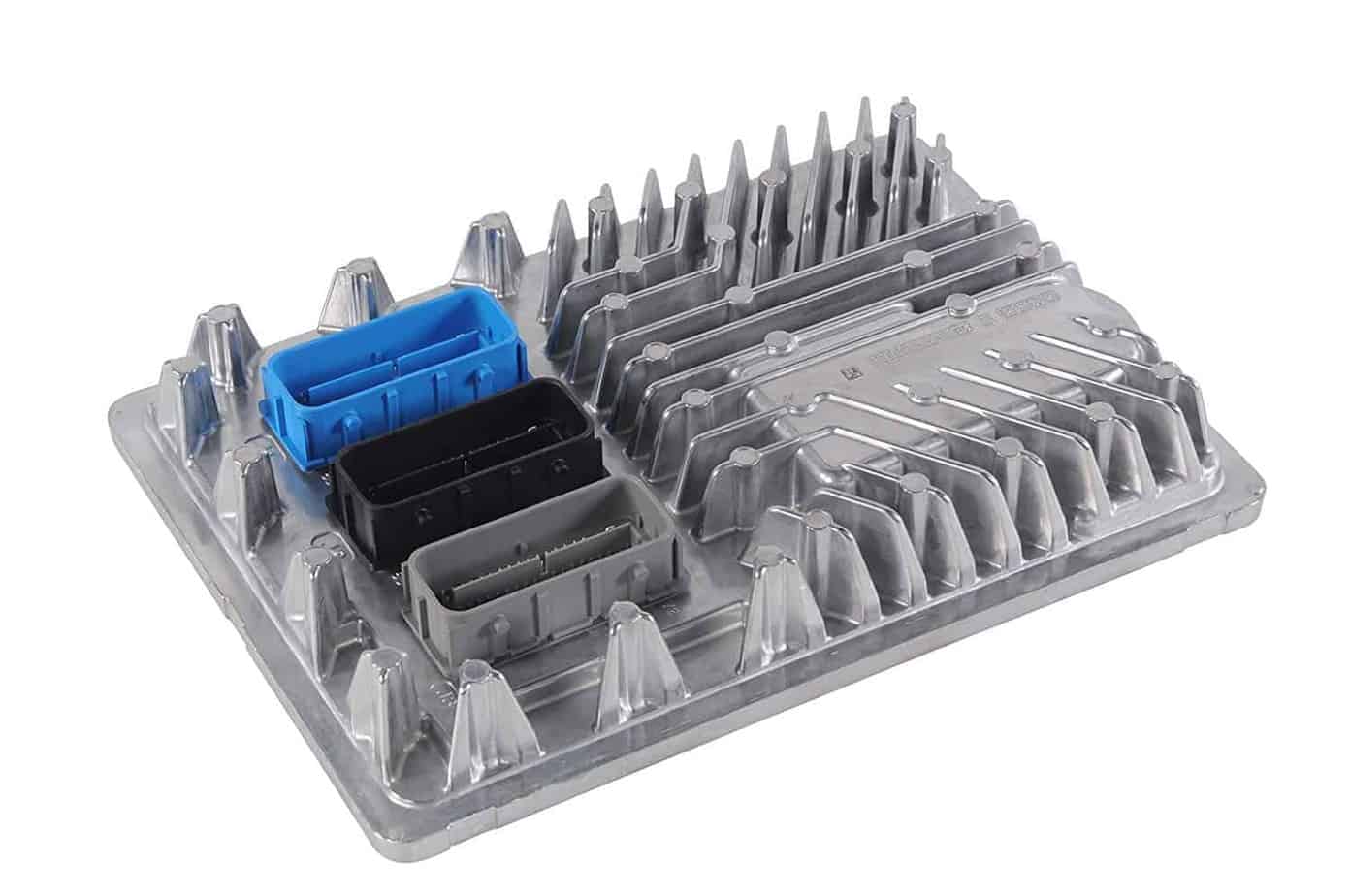

This is your direct-fit, reliable solution. We are offering a genuine GM Engine Control Module, part number 12676230, that arrives at your door fully programmed to your specific vehicle. Before we ship, we use the VIN you provide to flash the module with the very latest GM-certified software. This critical step ensures seamless communication between the ECM and all other systems in your vehicle, effectively restoring the precise engine management it had from the factory. It’s the most dependable way to solve complex electronic issues without the high cost and hassle of dealer programming.
From the Diagnostic Bay: The Case of the Ghost Misfire
I once had a 2015 Cadillac CTS with the 3.6L V6 in my shop—a vehicle that shares its core electronics with your XTS. The owner was chasing a random, intermittent misfire (P0300 code) that no one could solve. They had replaced plugs, coils, and even injectors. The car would run fine for days, then suddenly start stumbling at a stoplight. After hooking up my scope and monitoring live data, I noticed the fuel trim and injector pulse-width commands were becoming erratic, but only after the engine was fully heat-soaked. The culprit wasn’t a mechanical part; it was the ECM’s internal processor failing under thermal stress. Replacing the ECM with a properly programmed unit like this one solved the problem instantly. It’s a classic example of how a failing computer can mimic a mechanical fault, costing owners time and money on unnecessary parts.
Is Your Cadillac Showing These ECM Failure Signs?
- ✔ Check Engine Light is on with codes like P0601, P0606, or U0100.
- ✔ The engine cranks but refuses to start.
- ✔ Noticeable decrease in fuel efficiency.
- ✔ The engine runs rough, misfires, or stalls unexpectedly.
- ✔ Problems with the automatic transmission shifting smoothly.
- ✔ Failure to pass a state emissions inspection.
- ✔ Loss of communication with the diagnostic scan tool.
Your Straightforward ECM Installation Guide
Installing your new 2014-2016 XTS ECM is a manageable job for a confident DIYer or any professional mechanic. Following these steps ensures a smooth process.
- Safety First: Always disconnect the negative terminal from your vehicle’s battery before starting any electrical work.
- Locate the ECM: On the 2014-2016 Cadillac XTS with the 3.6L engine, the ECM is typically located in the engine compartment. Consult a service manual for the exact position if you’re unsure.
- Disconnect and Remove: Carefully unplug the electrical connectors. Most have a locking tab that needs to be released. Once disconnected, unbolt the old module from its mounting bracket and remove it.
- Install the New Module: Mount your new, pre-programmed ECM in the same location and secure it with the original bolts. Reconnect the electrical harnesses, ensuring they click firmly into place.
- Reconnect the Battery: Re-attach the negative battery terminal and tighten it securely.
- Perform Security Relearn: While the module is programmed, your vehicle’s anti-theft system may need to be relearned. This simple procedure usually involves turning the key to the ‘ON’ position for 10-15 minutes, then off, and repeating two more times before starting the engine. This allows the new ECM to sync with your keys.
Verified Fitment For Your GM Vehicle
This module is a direct replacement for part number 12676230 and is compatible with several other service numbers. Please verify your vehicle is on this list or that your original part number is listed below. This part is guaranteed to fit the following models with the specified options:
Compatible Part Numbers: 12692067, 12676230, 12656993, 12662034, 12672537, 12673195, 12663391, 12672963, 12669318
- Cadillac XTS (2014-2016) – With 3.6L Engine (VIN 8, opt LF3)
- Cadillac ATS (2014) – ID 12656993
- Cadillac ATS (2015) – With 3.6L Engine
- Cadillac ATS (2016) – With 3.6L Engine (VIN Y, opt LF4)
- Cadillac CTS (2014-2015) – Sedan with 3.6L Engine
- Cadillac CTS (2016) – With 3.6L (VIN 8, opt LF3) or 6.2L Engine
- Cadillac Escalade / ESV (2015-2016)
- Chevrolet Camaro (2016) – With 6.2L Engine
- Chevrolet Colorado (2015-2016) – With 3.6L Engine
- Chevrolet Corvette (2014-2016)
- Chevrolet Silverado 1500 (2014-2016)
- Chevrolet Suburban 1500 (2015-2016)
- Chevrolet Tahoe (2015-2016)
- GMC Canyon (2015-2016) – With 3.6L Engine
- GMC Sierra 1500 / Denali 1500 (2014-2016)
- GMC Yukon / Yukon XL 1500 (2015-2016)
Frequently Asked Questions
Frequently Asked Questions
Why do you need my VIN number?
Your Vehicle Identification Number (VIN) is essential. It allows us to load the exact, correct software from GM for your vehicle’s specific engine, transmission, and options. This ensures your new 2014-2016 XTS ECM works perfectly right out of the box.
Is this part difficult to install?
For someone with basic mechanical skills, the physical swap is straightforward. The most important part is the security relearn procedure after installation, which does not require special tools. We provide a clear guide to help you.
Will this fix my check engine light?
If the check engine light is caused by a faulty ECM (common codes P0601, P0606), then yes, this part is the correct fix. It’s always best to have the codes professionally diagnosed to confirm the ECM is the point of failure before ordering.
Do I need to take my car to the dealer after installing this?
No! The main benefit of our service is that the module comes pre-programmed. This saves you from needing a tow to the dealership and paying their expensive programming fees. You just need to install it and perform the simple key relearn procedure.
How do I find my original part number?
The part number is printed on a sticker on the case of your current ECM. You may need to remove the module to see it clearly. Matching the part number is a great way to confirm compatibility.
