Restore Your Vehicle’s Brainpower and Performance
Is your Cadillac, Silverado, or Corvette suffering from baffling issues like stalling, erratic shifting, a persistent Check Engine Light, or a complete no-start condition? You’re not just dealing with a minor glitch; you’re likely facing a failing Engine Control Module (ECM). As a technician with over two decades of experience, I’ve seen firsthand how a faulty ECM can cripple a perfectly good vehicle. It’s the central computer, and when it fails, the entire system is compromised. This isn’t just an inconvenience—it’s a critical failure that affects performance, fuel economy, and safety.

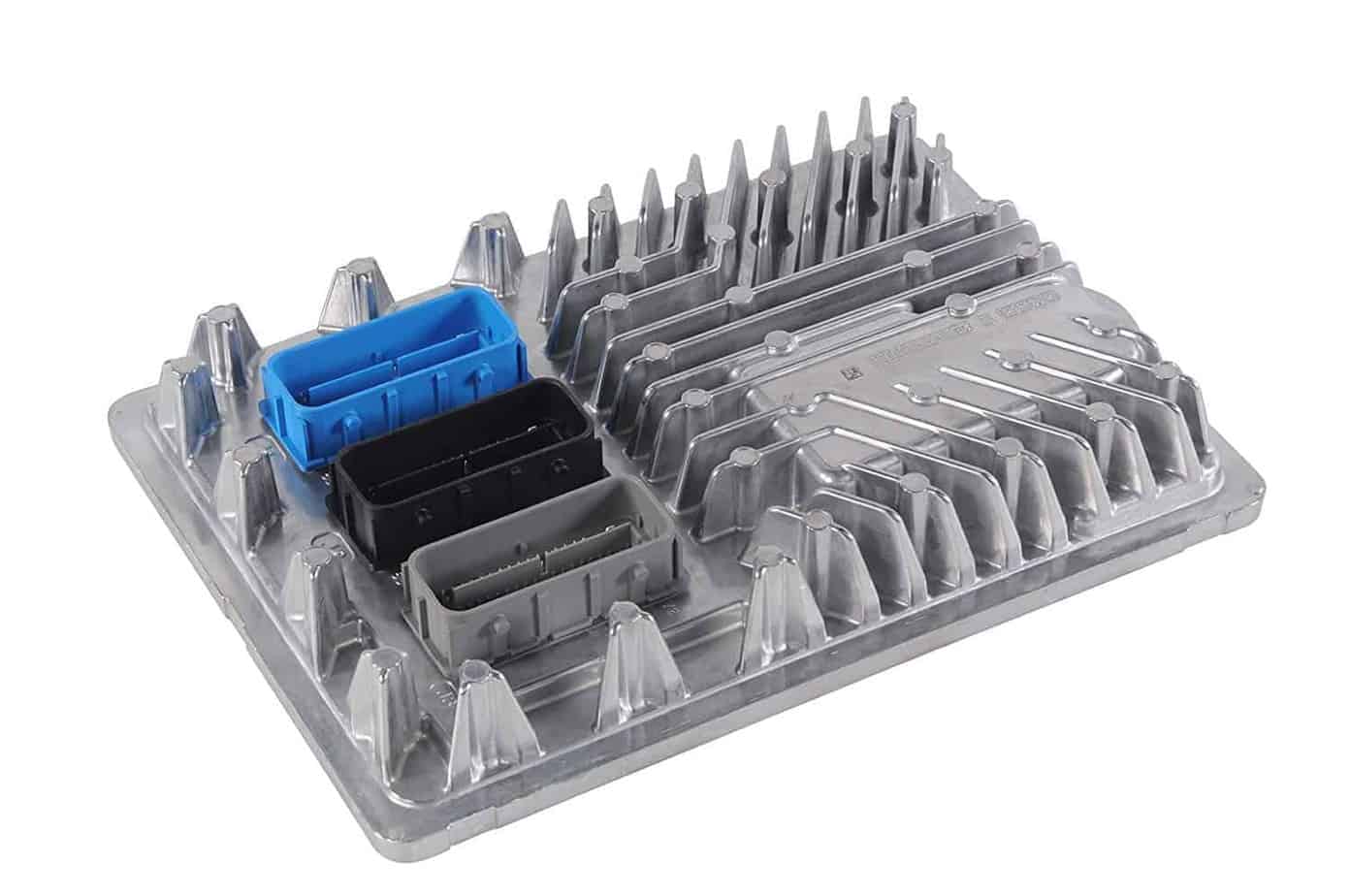

This isn’t a generic, one-size-fits-all part. We offer a direct-replacement 2014-2016 CTS Engine Control Module that arrives at your door fully programmed to your vehicle’s specific Vehicle Identification Number (VIN). We handle the complex part, loading the latest GM-certified software so you can skip the expensive trip to the dealership for programming. This means you get a reliable, plug-and-play solution designed to restore your engine’s original factory performance and clear those frustrating diagnostic trouble codes for good.
A Technician’s Notebook: The Intermittent Misfire Nightmare
A 2015 Sierra 1500 came into my bay with a problem that had stumped two other shops: an intermittent misfire on cylinder 3 that only happened under load. The owner had already replaced the plug, coil, and injector. Scopes showed a clean signal, and compression was perfect. After hours of chasing wires, I decided to monitor the injector driver command directly from the ECM. Sure enough, under heavy acceleration, the driver circuit inside the ECM would momentarily drop out. It was a classic case of internal ECM failure caused by heat cycles and vibration. We installed a VIN-programmed module just like this one, and the truck ran perfectly. It’s a reminder that sometimes the problem lies with the computer itself, not the parts it controls.
Is Your GM Vehicle Showing These Red Flags?
A failing ECM can manifest in numerous ways. If you’re experiencing any of the following, it’s a strong indicator that your module needs replacement. Look out for these common symptoms and associated Diagnostic Trouble Codes (DTCs):
- ✔ Check Engine Light is on with codes like P0601 (Internal Control Module Memory Check Sum Error), P0606 (ECM/PCM Processor Fault), or other U-codes (Communication Errors).
- ✔ The engine cranks but refuses to start.
- ✔ Unexplained drops in fuel efficiency.
- ✔ Rough or unstable idling.
- ✔ The transmission shifts harshly or at the wrong times.
- ✔ Noticeable loss of engine power and poor acceleration.
- ✔ Intermittent stalling for no apparent reason.
Your Straightforward ECM Installation Guide
Installing your new 2014-2016 CTS Engine Control Module is a manageable job for a confident DIYer or any professional technician. Since we program it beforehand, you won’t need any special scan tools for software flashing.
- Safety First: Always disconnect the negative terminal from your vehicle’s battery and wait a few minutes to ensure the system is fully discharged.
- Locate the ECM: On most of these vehicles (like the Silverado/Sierra), the ECM is found in the engine compartment, often on the driver’s side near the firewall or fuse box. On others, like the Corvette, it may be under the cowl. Consult a vehicle-specific repair manual if you are unsure.
- Disconnect the Connectors: Carefully release the locking tabs on the wiring harness connectors and pull them straight out from the module. Never force them. Inspect the connectors for any corrosion or bent pins.
- Remove the Old Module: Unbolt the old ECM from its mounting bracket. Keep the hardware, as you may need to reuse it.
- Install the New Module: Mount your new, pre-programmed ECM in place and secure it with the original hardware.
- Reconnect Everything: Firmly plug the wiring harnesses back into the new ECM until they click into place. Reconnect the negative battery terminal.
- Final Steps: Some vehicles may require a security relearn or crankshaft position sensor relearn procedure, which can often be done without a scan tool. Turn the key to the ‘ON’ position for 10-15 minutes, then off, and repeat two more times before attempting to start the engine. This allows other modules to recognize the new ECM.
Verified Fitment for Your General Motors Vehicle
This module is a direct replacement for part number 12656993 and is compatible with several other service numbers. Please verify your vehicle’s year, model, and options below to ensure proper fitment.
Frequently Asked Questions
Do I need to do any programming myself?
No. We flash the module with the latest GM software using the VIN you provide during checkout. It arrives ready for installation, saving you a trip to the dealer.
Is this a simple plug-and-play installation?
Yes, for the most part. After physical installation, some vehicles may require a simple security relearn procedure, which typically involves a few key cycles and does not require special tools. We include general instructions for this process.
How do I provide my VIN?
After you complete your purchase, you will need to send us your 17-digit VIN. We cannot program and ship the module without it.
Will this fix my check engine light?
If the check engine light is caused by an internal ECM failure (like codes P0601 or P0606), this part is the correct solution. However, you should always ensure other potential issues (sensors, wiring) have been properly diagnosed first.
What part number will I receive?
The part you receive will be 100% compatible with part number 12656993 and the other numbers listed. GM often supersedes part numbers, so the service number on the sticker may vary but the functionality is identical.
