Restore Your Camaro’s Electrical System with a Hassle-Free Solution
If your 2014-2015 Chevrolet Camaro is acting possessed—with flickering lights, malfunctioning power windows, a haywire security system, or even a frustrating no-start condition—the culprit is often a failing Body Control Module (BCM). As the central command center for your vehicle’s body electronics, a faulty BCM can create a cascade of baffling electrical problems. I’ve seen it hundreds of times in the shop: a car comes in with a dozen seemingly unrelated issues, and it all traces back to this single component. Trying to solve these issues one by one is a costly and frustrating game of whack-a-mole.
This isn’t just a replacement part; it’s a complete, streamlined solution. We take the complex, expensive trip to the dealership out of the equation. By using our professional cloning service, we transfer all the critical vehicle-specific data from your original BCM to this replacement unit. The result? A module that is truly plug-and-play. It arrives at your door ready for installation, with no need for additional programming or key relearning, getting you back on the road faster and with more money in your pocket.
A Technician’s Notebook: The Camaro with a Mind of Its Own
A customer brought in a 2015 Camaro Convertible with a list of complaints that sounded like a prank. The radio would change stations on its own, the interior lights would stay on, and occasionally, the car just wouldn’t start. They had already replaced the battery and checked the alternator. After hooking up my diagnostic tool, I saw a slew of communication errors (U-codes) pointing to a network issue. Instead of chasing each code, experience told me to look at the network’s hub: the BCM. We pulled the original BCM, sent it for cloning, and installed the newly programmed replacement. Every single ghost in the machine vanished. It’s a classic case where fixing the core problem is far more effective than treating the symptoms.
Common Signs of a Failing BCM
A failing BCM can manifest in numerous ways. If you’re experiencing any of the following, your Body Control Module is the most likely cause:
- ✔ Erratic or non-functional interior and exterior lights.
- ✔ Power windows, door locks, or mirrors working intermittently or not at all.
- ✔ The security system or keyless entry system malfunctioning.
- ✔ The vehicle failing to start, even with a good battery and starter.
- ✔ Multiple warning lights on the dashboard with no clear cause.
- ✔ Diagnostic trouble codes (DTCs) related to communication failures, such as U0140, U0155, or other U-codes.
A Straightforward Guide to Your BCM Replacement
Replacing the 2014-2015 Camaro BCM is a manageable job for a DIY enthusiast. The module is typically located behind the right side of the dashboard. Follow these general steps for a smooth installation:
- Safety First: Always disconnect the negative terminal from your vehicle’s battery before beginning any electrical work.
- Locate the BCM: On the 2014-2015 Camaro, you will find the BCM located on the right-hand (passenger) side of the dash. Access may require removing the glove box or a lower dash panel.
- Disconnect and Remove: Carefully unplug the electrical connectors from the old BCM. They have locking tabs that need to be depressed. Once disconnected, unbolt the module from its mounting bracket and remove it from the vehicle.
- Install the New Module: Mount your new, pre-programmed BCM onto the bracket and securely plug in all the electrical connectors. You should hear a click as they lock into place.
- Reconnect Power: Re-install any panels you removed and reconnect the negative battery terminal.
- Perform Final Checks: Start the vehicle and test all body functions—lights, windows, locks, radio, etc. Please see the notes below regarding potential post-installation procedures.
Important Post-Installation Information
While our cloning service makes this a plug-and-play process, some vehicle systems may require a quick sync-up after the new module is installed.
- Airbag System Sync: In some cases, the airbag warning light may illuminate after installation. This is because the BCM needs to re-establish its security handshake with the airbag system’s Sensing and Diagnostic Module (SDM). A professional scan tool is required to perform the ‘Setup SDM Primary Key in BCM’ procedure to resolve this.
- Brake Pedal Position Relearn: To ensure proper brake light and traction control operation, a brake pedal position sensor relearn procedure may be necessary. This can often be done with a capable bidirectional scan tool.
Disclaimer: Vehicle systems vary. We always recommend consulting a factory service manual or a qualified technician for procedures specific to your vehicle.
Verified Vehicle Compatibility
This BCM is a direct-fit replacement for several GM models and is compatible with multiple part numbers. Please verify your vehicle and part number below.

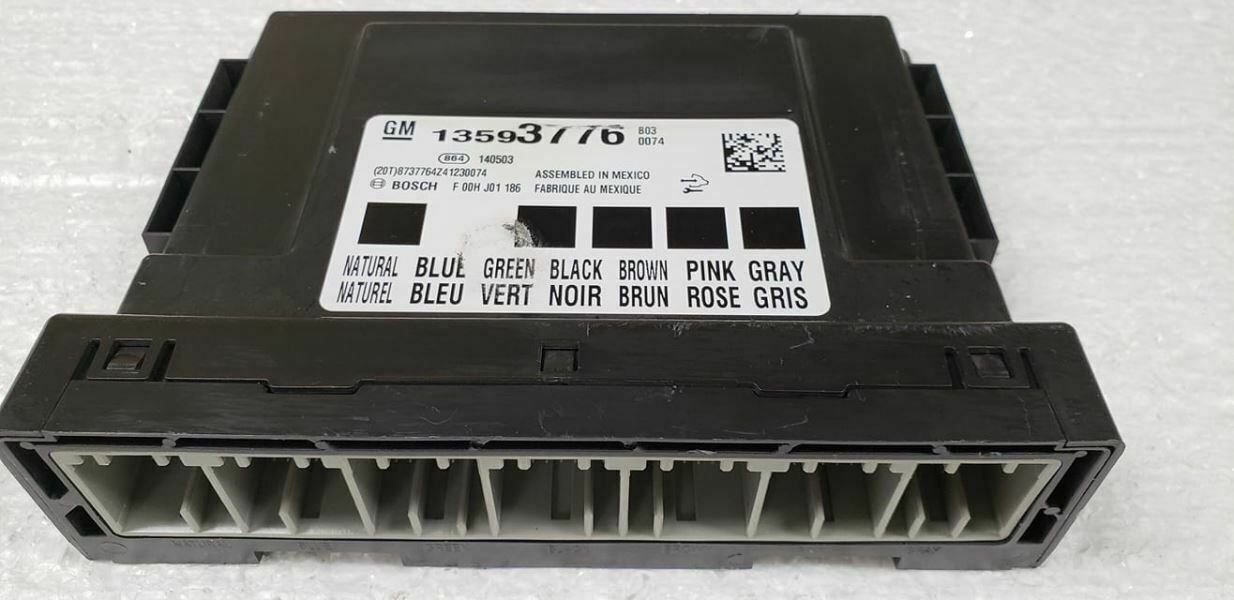

Compatible Part Numbers: 13580698, 13578458, 13589115, 13589637, 13590173, 13590851, 13591300, 13592376, 13593775, 13593776, 13594564
- Buick LaCrosse: 2014-2015, 2016 (ID 13580698 or 13594564)
- Buick Regal: 2014-2017
- Cadillac ELR: 2014-2016
- Cadillac SRX: 2014-2016
- Chevrolet Camaro: 2014 (Convertible), 2015
- Chevrolet Malibu: 2014-2015, 2016 (Limited)
- Chevrolet Spark: 2014-2016 (EV Model)
- Chevrolet Volt: 2014-2015
What is a BCM cloning service?
What is a BCM cloning service?
BCM cloning is a process where we transfer the exact software, VIN, mileage, and key data from your original Body Control Module to a replacement unit. This makes the new module a perfect electronic match for your vehicle, eliminating the need for expensive and time-consuming dealership programming.
Will I need to program this module after I receive it?
What is a BCM cloning service?
BCM cloning is a process where we transfer the exact software, VIN, mileage, and key data from your original Body Control Module to a replacement unit. This makes the new module a perfect electronic match for your vehicle, eliminating the need for expensive and time-consuming dealership programming.
How does the mail-in process work?
What is a BCM cloning service?
BCM cloning is a process where we transfer the exact software, VIN, mileage, and key data from your original Body Control Module to a replacement unit. This makes the new module a perfect electronic match for your vehicle, eliminating the need for expensive and time-consuming dealership programming.
What if my original BCM is completely dead or unreadable?
What is a BCM cloning service?
BCM cloning is a process where we transfer the exact software, VIN, mileage, and key data from your original Body Control Module to a replacement unit. This makes the new module a perfect electronic match for your vehicle, eliminating the need for expensive and time-consuming dealership programming.
Is there a core charge for this part?
What is a BCM cloning service?
BCM cloning is a process where we transfer the exact software, VIN, mileage, and key data from your original Body Control Module to a replacement unit. This makes the new module a perfect electronic match for your vehicle, eliminating the need for expensive and time-consuming dealership programming.
