Restore Your Vehicle’s Electrical System with a Plug-and-Play Solution
Are you battling bizarre electrical issues in your Buick Verano or other GM vehicle? Flickering lights, malfunctioning power windows, a security system that acts up, or even a car that refuses to start can all point to a single culprit: a failing Body Control Module (BCM). As an expert technician with over two decades of experience, I’ve seen firsthand how a faulty BCM can turn a reliable car into a source of daily frustration. The BCM is the central hub for your car’s body electronics, and when it fails, chaos ensues. Dealerships will often quote you a staggering price for a new module plus mandatory, expensive programming fees.
We offer a smarter, more affordable path. This is not just a replacement part; it’s a comprehensive cloning service. You simply ship us your original BCM, and we transfer all of its critical data—including the VIN, immobilizer key information, and specific options for your vehicle—to a fully tested, reliable replacement unit. We then ship the programmed module back to you, ready for a true plug-and-play installation. This process completely bypasses the need for a trip to the dealer, saving you significant time, money, and hassle.
A Technician’s Notebook: The Ghost in the Equinox
A customer brought in a 2015 Equinox that was driving him crazy. The radio would turn off randomly, the dome light would stay on, and occasionally, the car wouldn’t start. He’d already replaced the battery and checked the alternator. Other shops were stumped. After connecting my scan tool, I noticed several ‘Lost Communication’ codes (U-codes) pointing to the BCM. Instead of a constant failure, the module was failing intermittently, like a flickering light bulb. By providing a cloned 2013-2017 Verano BCM (the same family of modules), we restored all functions perfectly. It’s a classic case where swapping parts randomly costs more than a precise diagnosis and a targeted solution like this cloning service.
Is Your GM Vehicle Exhibiting These BCM Failure Symptoms?
A faulty BCM can manifest in numerous ways. If you’re experiencing any of the following, your Body Control Module is the likely cause. Look out for Diagnostic Trouble Codes (DTCs) like U0140, U0155, or B1325.
- ✔ Power windows, door locks, or mirrors operating erratically or not at all.
- ✔ Interior or exterior lights (headlights, taillights) staying on or not turning on.
- ✔ The anti-theft or security light is illuminated on the dash, preventing the engine from starting.
- ✔ Horn honking unexpectedly or not working when pressed.
- ✔ Wipers behaving erratically (e.g., won’t turn off).
- ✔ Inconsistent communication with diagnostic scan tools.
- ✔ False warnings appearing on the instrument cluster (e.g., ‘door ajar’).
Your Straightforward Path to a Reliable Repair
Our goal is to make this process as simple as possible. By handling the complex programming, we turn a difficult repair into a manageable one for any DIY enthusiast or independent shop. This service for your 2013-2017 Verano BCM eliminates the need for specialized dealer tools.
- Step 1: Purchase and Prepare. After you place your order, we will contact you with detailed instructions for shipping. Please ensure your contact information is accurate.
- Step 2: Remove Your Original BCM. Carefully disconnect your vehicle’s negative battery terminal. Locate and remove your original BCM. The location varies by model (see fitment list below).
- Step 3: Ship Us Your Module. Securely package and ship your original BCM to us using the provided address.
- Step 4: We Handle the Programming. Upon receipt, our technicians will professionally clone all data from your original module to the replacement unit.
- Step 5: Install and Drive. We ship your plug-and-play BCM back to you. Simply install it, reconnect the battery, and your vehicle’s body electronics will be fully restored.
Important Post-Installation Note: In some cases, minor relearn procedures may be needed. For example, if the airbag light is on, a scan tool is required to perform the ‘Setup SDM Primary Key in BCM’ procedure. Similarly, a ‘Brake Pedal Position Relearn’ might be necessary. These are standard procedures for this type of repair. And don’t worry about a core charge—you can keep your original module.
Verified Fitment For These GM Models

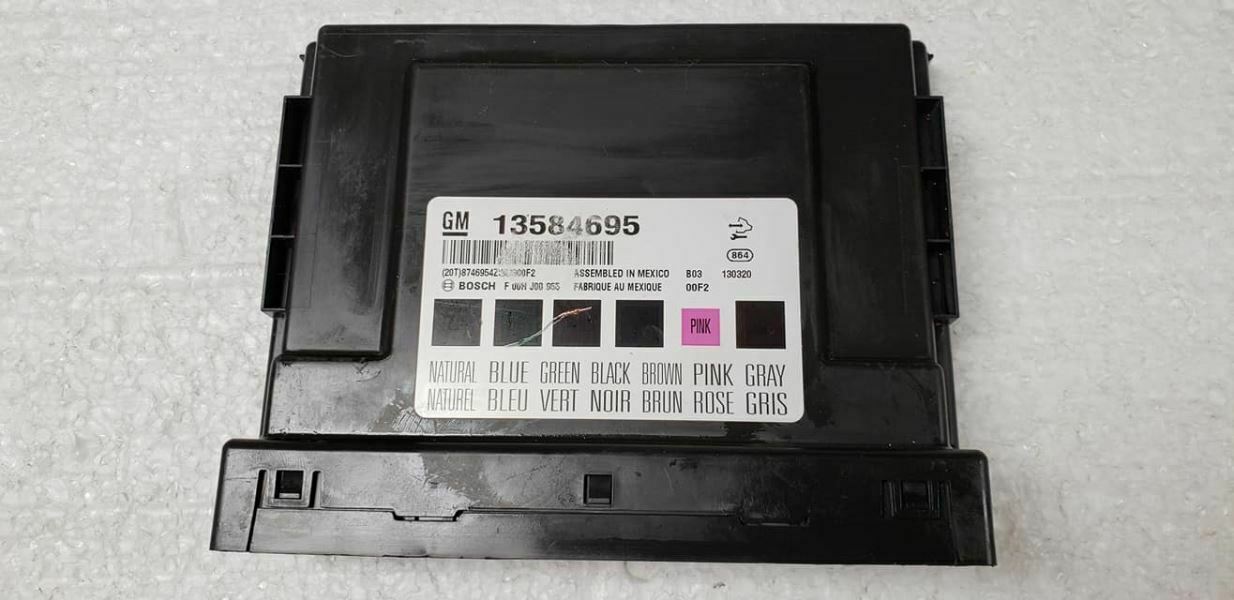

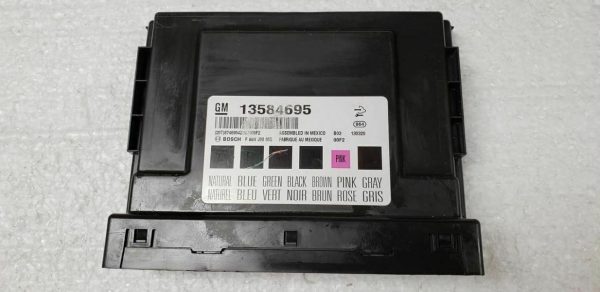

This BCM cloning service is compatible with a wide range of General Motors vehicles. Please verify your part number and model/year from the list below. This module is a direct replacement for part numbers: 13584695, 13586273, 13580697, 13588447, 13589197, 13589324, and 13589325.
- Buick Encore: 2013-2014 (LH side of dash)
- Buick Regal: 2013 (LH dash)
- Buick Verano: 2013-2017 (below center of dash)
- Cadillac SRX: 2013 (LH dash)
- Chevrolet Cruze: 2013 (LH kick panel, w/o opt ATH), 2014-2015 (LH kick panel), 2016 (LH kick panel, VIN P – Limited)
- Chevrolet Equinox: 2013-2017 (LH side dash)
- Chevrolet Malibu: 2013 (LH kick panel)
- Chevrolet Orlando: 2013-2014 (below center console)
- Chevrolet Spark: 2014-2015 (left lower a-pillar, gasoline)
- Chevrolet Trax: 2013-2014 (LH side of dash)
- Chevrolet Volt: 2013 (RH engine compartment, ID 13580697 or 13586273)
- GMC Terrain: 2013-2017 (LH side dash)
Frequently Asked Questions
What exactly is a BCM cloning service?
Cloning is the process of transferring your vehicle’s unique configuration data (like VIN and security keys) from your original BCM to the replacement unit. This makes the new module a perfect electronic match for your car, ensuring it works immediately upon installation without dealer programming.
How long does the service take?
We typically program and ship your replacement BCM within 24-48 hours of receiving your original module. Return shipping time will depend on your location. We will provide you with a tracking number as soon as it ships.
Is this something a DIY mechanic can install?
Absolutely. Since we handle all the programming, the physical installation is just a matter of unplugging the old module and plugging in the new one. The most important step is carefully locating and removing the original BCM.
What if my original BCM is completely dead or not communicating?
In many cases, even if the BCM is failing, we can still extract the necessary data. If your module is severely damaged (e.g., by fire or water), please contact us before ordering to discuss options.
Do I need to do anything after installing the new BCM?
For most vehicles, it’s a simple plug-and-play process. However, as noted, some models may require an ‘Airbag System Sync’ or ‘Brake Pedal Position Relearn’ with a professional scan tool if related warning lights appear. This is normal and varies by vehicle.
