Restore Your Chevy Cruze’s Electrical System with a Hassle-Free Solution
Are you dealing with baffling electrical issues in your 2013-2016 Chevrolet Cruze? Flickering lights, power windows with a mind of their own, a horn that won’t stop, or worse, a car that refuses to start? These are classic signs of a failing Body Control Module (BCM). The BCM is the central hub for your vehicle’s body electronics, and when it malfunctions, it can cause a cascade of frustrating and unpredictable problems. Going to the dealership often means a hefty bill for a new module and expensive programming fees. We offer a smarter, more reliable, and cost-effective alternative.
This is a comprehensive cloning service for your 2013-2016 Cruze BCM. Instead of selling you a blank module that requires specialized tools for initialization, we transfer all the critical data from your original BCM to a fully tested, replacement unit. This includes your vehicle’s specific VIN, security information (immobilizer keys), and any factory-installed options. The result is a true plug-and-play module, eliminating the need for a trip to the dealer and getting you back on the road with confidence.
A Technician’s Notebook: The Cruze with a Ghost
I remember a 2014 Cruze that came into the shop with the strangest set of symptoms. The owner reported the radio would randomly switch stations, the interior dome light would flicker while driving, and occasionally, the turn signals wouldn’t work. We checked grounds, wiring harnesses, and fuses—all were perfect. Diagnostic scans showed intermittent communication loss codes (U0140) with multiple modules. Experience pointed straight to the BCM. Instead of risking programming a new, expensive module, we performed a data clone onto one of our replacement units. After a 15-minute install, every single ghost in the machine was gone. Cloning preserved the original vehicle configuration perfectly, providing a permanent fix where other methods might have failed.
Is Your Cruze Showing These Symptoms?
A failing BCM can manifest in many ways. If you’re experiencing any of the following, your Body Control Module is the likely culprit:
- ✔ Power windows or locks operating erratically or not at all.
- ✔ Interior or exterior lights flickering, staying on, or not turning on.
- ✔ The security system preventing the car from starting (flashing security light).
- ✔ Horn blaring unexpectedly or not working when pressed.
- ✔ Wipers activating on their own or not responding.
- ✔ False warnings on the instrument cluster (e.g., ‘Service Airbag’).
- ✔ Diagnostic trouble codes related to communication loss, such as U0140, U0155, or other U-codes.
Streamlined Mail-In Cloning Service
- ✔ Purchase This Service: Complete your order. We will then contact you with clear instructions and a shipping address. Please ensure your contact information is up to date.
- ✔ We Handle the Programming: Once we receive your original BCM, our technicians will perform a full data transfer to the replacement module. This process is usually completed within 24-48 hours.
- ✔ Final System Checks: In some cases, minor post-installation procedures like an airbag system sync or brake pedal position relearn may be needed. This is often not required, but it’s a simple final step for a complete repair.
Verified Vehicle Compatibility

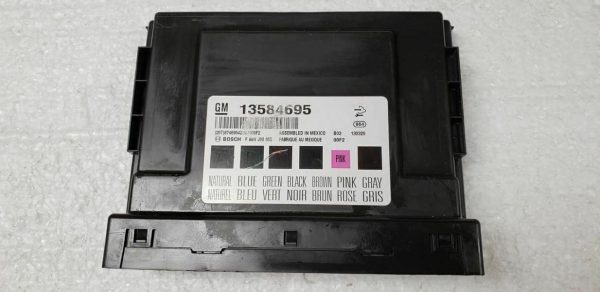

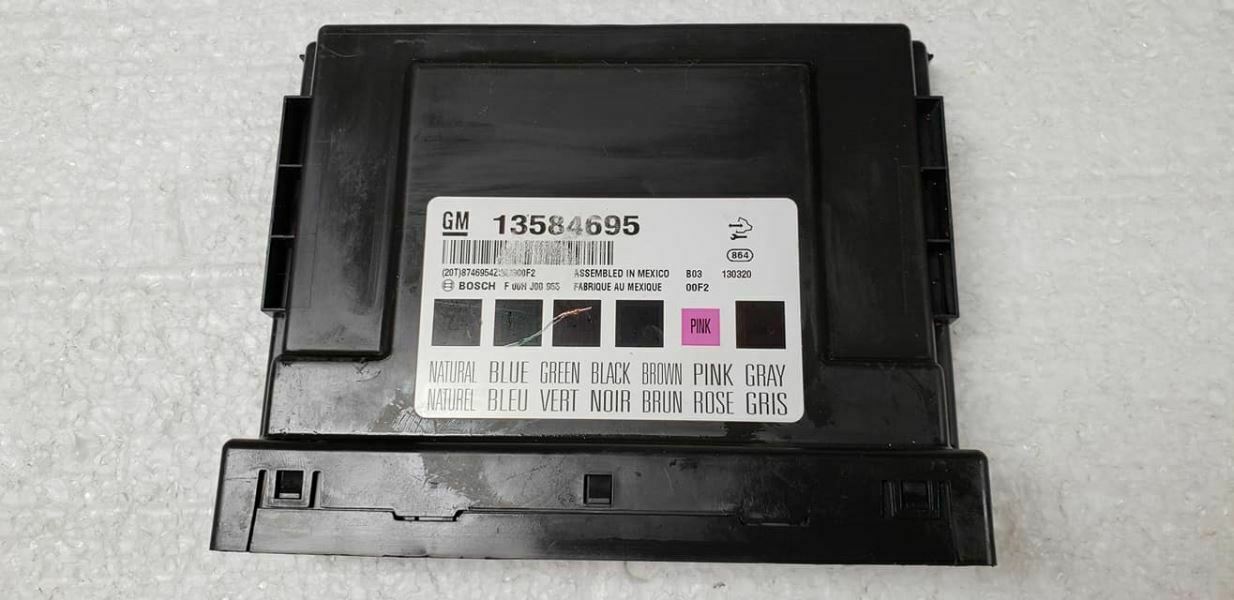

This BCM is a direct replacement for part number 13586273 and is interchangeable with the following part numbers: 13584695, 13580697, 13588447, 13589197, 13589324, and 13589325. It is guaranteed to fit the following models and options:
- Chevrolet Cruze: 2013 (w/o opt ATH), 2014-2015, 2016 (VIN P, Limited) – Located at LH kick panel.
- Chevrolet Equinox / GMC Terrain: 2013-2017 – Located at LH side of dash.
- Chevrolet Malibu: 2013 – Located at LH kick panel.
- Chevrolet Orlando: 2013-2014 – Located below center console.
- Chevrolet Spark: 2014-2015 (Gasoline) – Located at left lower A-pillar.
- Chevrolet Trax: 2013-2014 – Located at LH side of dash.
- Chevrolet Volt: 2013 – Located at RH engine compartment (ID 13580697 or 13586273).
- Buick Encore: 2013-2014 – Located at LH side of dash.
- Buick Regal: 2013 – Located at LH dash.
- Buick Verano: 2013-2017 – Located below center of dash.
- Cadillac SRX: 2013 – Located at LH dash.
Important Post-Installation Notes
While our cloning service makes this a plug-and-play repair, some vehicle systems may require a quick resynchronization after the BCM is reinstalled. This is normal. The two most common procedures are:
- Airbag System Sync: If the airbag warning light is on after installation, a scan tool procedure called ‘Setup SDM Primary Key in BCM’ is needed to sync the modules.
- Brake Pedal Position Relearn: On some models, a brake pedal sensor relearn may be necessary to ensure correct brake light and stability control operation.
Disclaimer: Always consult a factory service manual or a qualified professional if you are unsure about any step of the process.
Frequently Asked Questions
How does the mail-in cloning service work?
After you purchase, we’ll email you shipping instructions. You send us your original BCM. We then copy all its data (VIN, key info, options) to a replacement module and ship it back to you, ready to install.
Do I need to send my keys or other modules?
No. We only need your original Body Control Module. All the necessary security information is stored within it, which we will transfer.
Is this really plug-and-play?
Yes, in over 95% of cases. Because we clone your original data, the car recognizes the replacement module as its own, requiring no dealer programming. In rare instances, a simple relearn procedure, like for the airbag system, may be needed.
What is the turnaround time?
We typically program and ship your replacement BCM within 1-2 business days of receiving your original module. You will receive a tracking number as soon as it ships.
What if I have a different part number?
This service covers part number 13586273 and several interchangeable numbers listed in the description. Please verify your part number before ordering to ensure compatibility.
Is there a core charge?
No, there is no core charge. We need your original module to perform the data transfer service, but you are not required to return it afterward. However, we do not send it back unless specifically requested.
