Are you dealing with baffling electrical issues in your 2013-2016 Chevrolet Cruze? Flickering lights, unresponsive power windows, or a security system that has a mind of its own are more than just annoyances—they’re classic signs of a failing Body Control Module (BCM). As the central hub for your car’s body electronics, a faulty BCM can make your vehicle unreliable and frustrating to drive. Taking it to the dealership often means a hefty bill for diagnostics, a new part, and mandatory programming fees. We offer a smarter, more affordable solution.
This is a professionally serviced Body Control Module that comes with our expert cloning service. Instead of paying for expensive dealership programming, you simply ship us your original BCM. Our technicians will transfer all the critical data—including your vehicle’s specific key codes and security information—to this replacement unit. We then ship it back to you, ready for a true plug-and-play installation. This process ensures perfect compatibility and function, getting your Cruze back to normal without the dealership hassle. This is the most reliable way to replace a faulty 2013-2016 Cruze BCM and restore your car’s functionality.
A Technician’s Notebook: The Misleading Battery Drain
A customer brought in a 2014 Cruze with a persistent battery drain. They had already replaced the battery and alternator, but the car would be dead every morning. In my shop, I’ve seen this dozens of times. A quick parasitic draw test showed a significant power drain even with the key off. After pulling fuses one by one, we isolated the circuit to the BCM. The internal relays were sticking, keeping certain systems powered on overnight. A simple visual inspection of the BCM would show nothing. This is why our cloning service is so effective; it solves these hidden internal faults by providing a fully functional, correctly programmed module, saving customers from needlessly replacing other expensive components.
Is Your Vehicle Showing These Symptoms?
- ✔ Erratic or non-functional interior and exterior lights.
- ✔ Power windows, door locks, or mirrors working intermittently or not at all.
- ✔ The anti-theft or security system light staying on, preventing the car from starting.
- ✔ Inconsistent or failed communication with diagnostic scan tools, often showing codes like U0140.
- ✔ Wipers or horn activating randomly.
- ✔ A persistent parasitic battery drain that kills your battery overnight.
A Straightforward Guide to Installation
- ✔ Safety First: Disconnect the negative terminal from your vehicle’s battery to prevent any electrical shorts.
- ✔ Locate the BCM: On most 2013-2016 Cruze models, the BCM is located behind the driver’s side kick panel, near the fuse box.
- ✔ Remove the Old Module: Carefully disconnect all the electrical connectors. Take a picture beforehand if it helps you remember their positions. Unbolt or unclip the original BCM from its mounting bracket.
- ✔ Install the New Module: Seat your newly programmed BCM into the mounting bracket and reconnect all electrical connectors securely.
- ✔ Power Up: Reconnect the negative battery terminal.
- ✔ Test Functions: Start the vehicle and test all body functions: lights, locks, windows, wipers, and radio to ensure everything is working correctly.
Important Post-Installation Steps
While our programming makes this a plug-and-play repair, some GM vehicles require a final handshake between modules. Be aware of the following:
- Airbag System Sync: If your airbag warning light is on after installation, a professional scan tool is needed to perform the ‘Setup SDM Primary Key in BCM’ procedure. This syncs the new BCM with the airbag system.
- Brake Pedal Position Relearn: On some models, a brake pedal position sensor relearn may be required to ensure your brake lights and traction control system function properly.
Disclaimer: Always consult a factory service manual or a qualified technician if you are unsure about any step. No core charge is required; you can keep your original module.
Verified Vehicle Compatibility

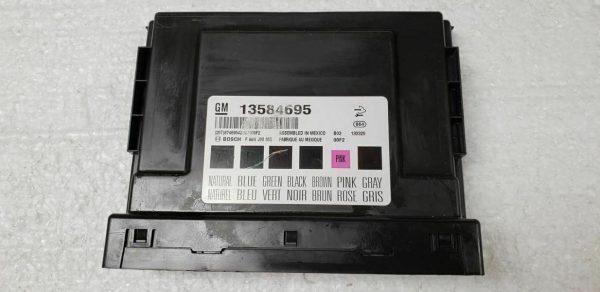

This module is a direct replacement for part numbers 13584695, 13586273, 13580697, 13588447, 13589197, 13589324, and 13589325. It is guaranteed to fit the following vehicles:
- 2013-2016 Chevrolet Cruze (incl. Limited models)
- 2013-2017 Chevrolet Equinox / GMC Terrain
- 2013 Chevrolet Volt
- 2013-2014 Buick Encore
- 2013 Chevrolet Malibu
- 2013 Buick Regal
- 2013 Cadillac SRX
- 2014-2015 Chevrolet Spark (gasoline)
- 2013-2014 Chevrolet Orlando
- 2013-2017 Buick Verano
- 2013-2014 Chevrolet Trax
Our cloning service makes this the ideal solution for your 2013-2016 Cruze BCM replacement needs, as well as for many other GM cars and SUVs.
Frequently Asked Questions
How does the cloning service work?
After you place your order, we will contact you with instructions to ship your original BCM to us. Our technicians will then extract the vehicle-specific data and transfer it to the replacement module. We ship the programmed module back to you, ready for installation.
Will I need any special tools for installation?
For the physical installation, you’ll only need basic hand tools like a socket set and a trim removal tool to access the BCM. No programming tools are required. However, in some cases, a post-install relearn procedure (like for the airbag or brake sensor) may require a professional-grade scan tool.
Is this guaranteed to fix my problem?
This service corrects issues caused by a faulty BCM. If your vehicle’s symptoms match those of a failed BCM and the part number is compatible, this is a highly reliable solution. Proper diagnosis is key, as other modules or wiring issues can cause similar symptoms.
How long does the entire process take?
We typically program and ship your replacement BCM within 1-2 business days of receiving your original module. The total time will depend on shipping transit times to and from our facility.
Do I need to send my keys with the BCM?
No, you do not need to send your keys. All the necessary immobilizer and key data is stored within the BCM itself, which is what we transfer during the cloning process.
