Restore Your Vehicle’s Electrical Stability with a Pre-Programmed BCM
Is your Chevrolet Cruze or other GM vehicle acting possessed? Flickering dash lights, power windows with a mind of their own, intermittent starting issues, or a security light that won’t turn off are classic signs of a failing Body Control Module (BCM). As a technician with over two decades of experience, I’ve seen how a faulty BCM can turn a reliable car into a source of daily frustration. The BCM is the central hub for your car’s body electronics, and when it fails, chaos ensues. Dealerships often quote exorbitant prices for a new module plus mandatory programming fees. We offer a smarter, more affordable solution.
This is not just a replacement part; it’s a comprehensive repair service. We solve the biggest hurdle of BCM replacement: the programming. By cloning the data from your original module, we deliver a replacement 2013-2016 Cruze BCM that is truly plug-and-play. Your vehicle’s specific VIN, key information, and other security data are transferred directly to the replacement unit. This means no expensive trip to the dealer, no need for special scan tools, and no compatibility headaches. You simply send us your original module, and we send you back a fully programmed, ready-to-install solution.
From the Diagnostic Bay: The Case of the Haunted Cruze
A customer brought in a 2014 Cruze with a list of bizarre symptoms: the radio would randomly shut off, the dome light would flicker while driving, and twice it had refused to start, only to fire up perfectly an hour later. They had already replaced the battery to no avail. After hooking up my diagnostic scanner, I saw multiple communication loss codes (U-codes) pointing to the BCM. Instead of a costly new module and a full system reprogram, we opted for a cloned BCM. The customer saved hundreds, and the car was back to its reliable self the next day. These intermittent electrical gremlins are textbook BCM failure scenarios I’ve diagnosed hundreds of times.
Common Signs of a Failing BCM
- ✔ Power windows, door locks, or mirrors operating erratically or not at all.
- ✔ Interior or exterior lights flickering, staying on, or not working.
- ✔ The anti-theft or security system light is illuminated, causing a no-start condition.
- ✔ False warnings on the instrument cluster (e.g., ‘Service Airbag’ or ‘Service Traction System’).
- ✔ Diagnostic trouble codes (DTCs) related to communication loss, such as U0100, U0140, or other U-codes.
- ✔ Horn honking unexpectedly or not working when pressed.
A Straightforward Guide to Installation
- ✔ Safety First: Disconnect the negative terminal from your vehicle’s battery to prevent any electrical shorts.
- ✔ Locate the BCM: On most 2013-2016 Chevy Cruze models, the BCM is located behind the driver’s side kick panel, near the fuse box. For other models, consult your service manual for the exact location.
- ✔ Remove Your Original BCM: Carefully disconnect all electrical connectors from the module. They have locking tabs that must be depressed to be removed. Unbolt or unclip the module from its mounting bracket.
- ✔ Ship It To Us: After your purchase, we will provide you with detailed instructions and a shipping address. Please ensure your contact information is correct so we can reach you.
- ✔ Install the Cloned Module: Once you receive the programmed module back from us, simply reconnect the electrical harnesses and secure it in the mounting bracket. Reconnect your battery.
- ✔ Final Checks: Start the vehicle and verify that all electronic functions are restored. Note the post-installation procedures below.
Important Post-Installation Note: In some cases, additional steps may be needed. If your airbag light is on, a professional scan tool is required to perform the ‘Setup SDM Primary Key in BCM’ procedure. Similarly, a ‘Brake Pedal Position Relearn’ may be necessary for proper brake light and traction control function. Always consult a factory service manual for vehicle-specific details.
Will This Fit My Vehicle?

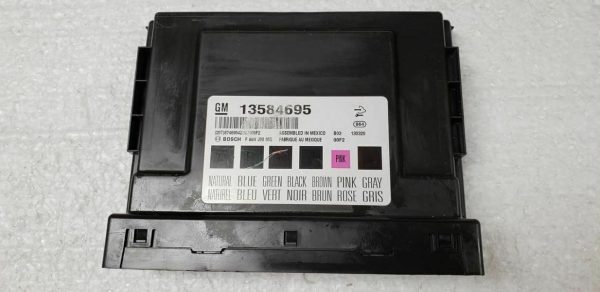

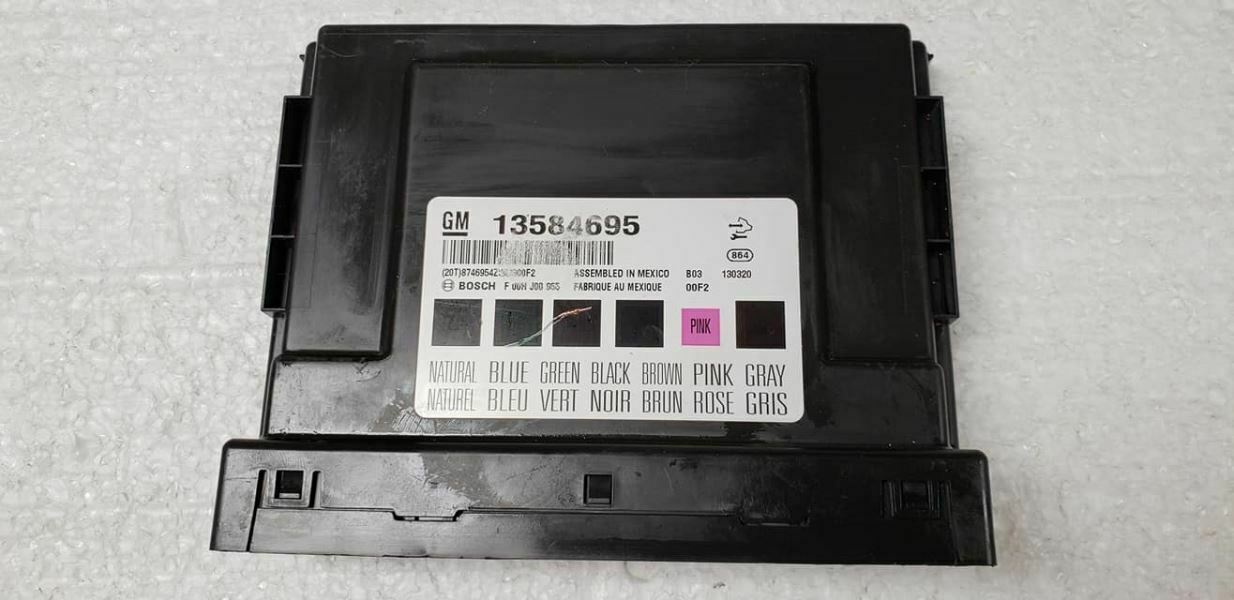

This BCM is a direct-fit replacement for part number 13584695 and is also compatible with part numbers 13586273, 13580697, 13588447, 13589197, 13589324, and 13589325. It is confirmed to fit the following vehicles:
- Chevrolet Cruze: 2013 (w/o opt ATH), 2014-2015, 2016 (Limited VIN P)
- Chevrolet Equinox / GMC Terrain: 2013-2017
- Chevrolet Malibu: 2013
- Chevrolet Orlando: 2013-2014
- Chevrolet Spark: 2014-2015 (Gasoline)
- Chevrolet Trax: 2013-2014
- Chevrolet Volt: 2013
- Buick Encore: 2013-2014
- Buick Regal: 2013
- Buick Verano: 2013-2017
- Cadillac SRX: 2013
Frequently Asked Questions
How does the cloning service work?
After you place your order, we will contact you with instructions to ship your original BCM to our facility. Our technicians will extract the critical data (VIN, security info, mileage) from your module and flash it onto the replacement unit. We then ship the fully programmed module back to you, ready for installation.
Is this really plug-and-play?
Yes. Because we transfer all the necessary data from your old BCM, the replacement unit is recognized by your vehicle’s other computers, eliminating the need for dealership programming. In rare cases, a simple relearn procedure as noted in our description may be required.
What if my original BCM is badly damaged or not communicating?
In most cases, even if the BCM is failing, we can still extract the necessary data. If your module is completely destroyed (e.g., by fire or severe water damage), please contact us before ordering to discuss potential options.
How long does the entire process take?
Once we receive your original BCM, our programming and testing process typically takes 1-2 business days. We will then ship the programmed module back to you. Total turnaround time will depend on shipping speeds.
Do I need to send my keys or any other parts?
No, we only need your original Body Control Module. The key data is stored within the BCM, so we do not need your physical keys.
Is there a core charge?
No, there is no core charge for this service. You can keep your original module after we have completed the programming service.
