Restore Your Vehicle’s Electrical System with a Hassle-Free Solution
Are you dealing with baffling electrical issues in your 2013-2016 Chevrolet Cruze or another GM vehicle? One minute the power locks work, the next they don’t. Maybe the interior lights have a mind of their own, or worse, you’re facing an intermittent no-start condition that leaves you stranded. These are classic signs of a failing Body Control Module (BCM). The BCM is the nerve center for your car’s comfort and security features, and when it fails, it can cause a cascade of frustrating problems. Instead of facing a costly trip to the dealership for a new module and programming, we offer a simple, reliable alternative.
This listing is for a replacement BCM that is professionally programmed using the data from your original module. This cloning service makes the replacement process as simple as possible. You send us your faulty BCM, we transfer all the critical vehicle-specific information—including key data and security settings—to this replacement unit. We then ship the ready-to-install module back to you. This is the most effective way to get a fully functional 2013-2016 Cruze BCM without the high costs and logistical headaches of dealership programming.
Case Study: A Tricky Diagnosis
A customer brought in a 2014 Chevy Cruze with a complaint that would drive anyone crazy: it would randomly refuse to start, but only in the mornings. The dash lights would flicker, and the security light would flash. They had already replaced the battery and checked the alternator. In my shop, I’ve seen this exact pattern dozens of times. After ruling out simple power and ground issues, we connected a scope to the communication lines at the BCM. We found the data signal was dropping out intermittently as the module’s internal temperature changed. A failing BCM was poisoning the car’s network. By cloning his original module’s data onto our replacement unit, we had him back on the road the next day with the problem solved for good—no expensive diagnostic guesswork needed.
Common Signs of a Failing BCM
- ✔ Erratic or non-functional power windows, door locks, or mirrors.
- ✔ Interior or exterior lights staying on, flickering, or not working at all.
- ✔ The vehicle’s security system engaging randomly or preventing the car from starting.
- ✔ Horn honking unexpectedly or not working when pressed.
- ✔ Communication error codes, such as U0140 (Lost Communication With Body Control Module), stored in other modules.
- ✔ Inconsistent operation of the windshield wipers.
Your Straightforward BCM Installation Guide
- ✔ Safety First: Always disconnect the negative terminal from your vehicle’s battery before starting any electrical work.
- ✔ Locate the BCM: On a 2013-2016 Chevrolet Cruze, the BCM is typically found behind the driver’s side kick panel, near the fuse box. For other models, consult a service manual for the exact location.
- ✔ Disconnect and Remove: Carefully unplug the electrical connectors from the old BCM. They have locking tabs that must be depressed. Once disconnected, unbolt or unclip the module from its mounting bracket.
- ✔ Install the New Module: Mount your new, pre-programmed BCM in the same location. Ensure it is secure.
- ✔ Reconnect Everything: Plug the electrical connectors firmly into the new module. You should hear a click as they lock into place. Reconnect the negative battery terminal.
- ✔ Final Checks: Start the vehicle and test all body functions—windows, locks, lights, wipers, etc.—to confirm the repair was successful. Note the post-installation procedures below.
Important Post-Installation Information
While our programming service for the 2013-2016 Cruze BCM makes this a near plug-and-play repair, some vehicle systems may require a recalibration procedure after the new module is installed. This is normal and depends on your specific vehicle’s configuration.
- Airbag System Sync: If the airbag warning light is illuminated after installation, a professional scan tool is needed to perform the ‘Setup SDM Primary Key in BCM’ procedure. This syncs the BCM with the airbag system.
- Brake Pedal Position Relearn: On some models, a brake pedal position sensor relearn may be required to ensure correct brake light operation and to prevent issues with the traction control system.
Disclaimer: Specific procedures can vary by vehicle. Always consult a factory service manual or a qualified technician for guidance.
Will This Fit My Vehicle?

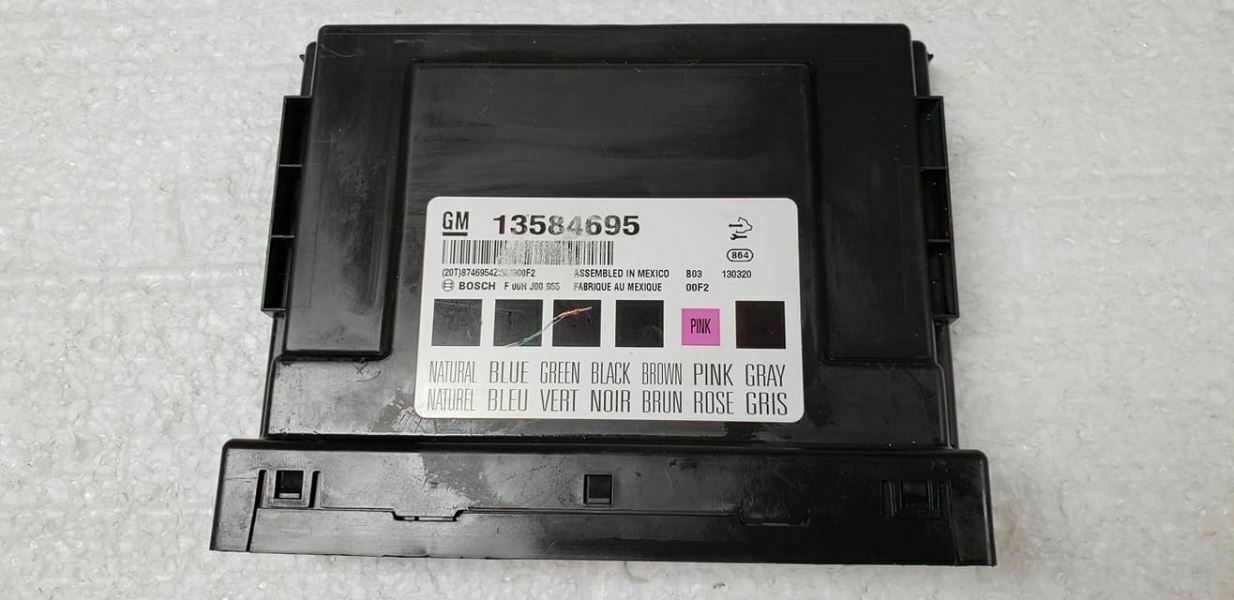

This BCM is a direct replacement for part number 13580697 and is interchangeable with the following part numbers: 13584695, 13586273, 13588447, 13589197, 13589324, and 13589325. It is guaranteed to fit the following makes and models with the specified options:
- Chevrolet Cruze: 2013 (w/o opt ATH), 2014-2015, 2016 (VIN P, Limited) – Body Control (BCM); (LH kick panel)
- Chevrolet Equinox: 2013-2017 – Body Control (BCM); (LH side dash), body control
- Chevrolet Malibu: 2013 – Body Control (BCM); (LH kick panel)
- Chevrolet Orlando: 2013-2014 – Body Control (BCM); (below center console)
- Chevrolet Spark: 2014-2015 – Body Control (BCM); (left lower a-pillar), gasoline model
- Chevrolet Trax: 2013-2014 – Body Control (BCM); (LH side of dash)
- Chevrolet Volt: 2013 – Body Control (BCM); (RH engine compartment), ID 13580697 or 13586273
- Buick Encore: 2013-2014 – Body Control (BCM); (LH side of dash)
- Buick Regal: 2013 – Body Control (BCM); (LH dash)
- Buick Verano: 2013-2017 – Body Control (BCM); (below center of dash)
- Cadillac SRX: 2013 – Body Control (BCM); (LH dash)
- GMC Terrain: 2013-2017 – Body Control (BCM); (LH side dash), body control
Frequently Asked Questions
2013-2016 Cruze BCM
Will this fix my specific problem?
This programmed will resolve issues directly caused by a faulty module, such as the symptoms listed above. It’s crucial to ensure your vehicle has been properly diagnosed, as wiring or sensor issues can sometimes mimic BCM failure.
