Restore Your Vehicle’s Functionality with a Pre-Programmed BCM
Are you dealing with baffling electrical problems in your Chevrolet Sonic or other compatible GM vehicle? Issues like power windows that won’t cooperate, dashboard lights flickering randomly, or a car that refuses to start can often be traced back to a failing Body Control Module (BCM). The BCM is the central nervous system for your car’s body electronics, and when it fails, it can cause a cascade of frustrating issues. This is a reliable, straightforward solution for your 2013-2014 Sonic BCM, providing a direct path to getting your vehicle back in perfect working order without the exorbitant costs and scheduling headaches of a dealership visit.
Our unique service simplifies the entire repair process. Instead of you needing to have a new module programmed, we handle it for you. After your purchase, you simply ship your original BCM to us. We then transfer or ‘clone’ all the critical vehicle-specific data—like key information and security settings—onto this replacement module. The result is a true plug-and-play component that is ready for installation the moment you receive it. We will contact you with shipping instructions after your order is placed to ensure a smooth process.
A Technician’s Notebook: The Sonic with a Mind of Its Own
I remember a 2014 Sonic that came into the shop with a list of complaints that seemed completely unrelated. The owner said the radio would sometimes shut off, the dome light would stay on, and occasionally, the power door locks wouldn’t respond to the key fob. There were no check engine lights, but a deep scan showed several intermittent communication fault codes (U-codes) pointing to the BCM. After verifying the power and ground circuits to the module were solid, it was clear the BCM itself was failing internally. Instead of a costly new module and programming session at the dealer, we used a cloned BCM. The installation took less than an hour, and every single ghost in the machine was gone. It’s a classic case of how a faulty 2013-2014 Sonic BCM can create widespread, confusing symptoms.
Is Your Vehicle Showing These Symptoms?
A failing BCM can manifest in numerous ways. If you’re experiencing any of the following, this module is the likely solution:
- ✔ Erratic or non-functional power windows, door locks, or mirrors.
- ✔ Interior or exterior lights flickering, staying on, or not working at all.
- ✔ The security system acting up or preventing the car from starting.
- ✔ Radio or infotainment system randomly shutting down or malfunctioning.
- ✔ Diagnostic trouble codes (DTCs) related to communication, such as U0100, U0140, or other U-series codes.
- ✔ A complete no-start condition where the starter doesn’t engage.
A Straightforward Guide to Installation
Replacing the BCM is a manageable job for a DIY enthusiast or a quick task for any professional mechanic. For the 2013-2014 Sonic, the BCM is located in the right-hand rear quarter panel area.
- Step 1: Safety First: Always disconnect the negative terminal from your vehicle’s battery before beginning any electrical work.
- Step 2: Access the Module: Locate the BCM. On the Sonic, this involves removing trim panels in the RH rear quarter panel area to gain access.
- Step 3: Disconnect and Remove: Carefully unplug the electrical connectors from the original BCM. Note their orientation. Then, unbolt or unclip the module from its mounting bracket.
- Step 4: Install the Replacement: Mount your new, pre-programmed BCM in the same location and reconnect all electrical connectors securely.
- Step 5: Final Steps: Re-install any trim panels you removed and reconnect the negative battery terminal. Start the vehicle to confirm that the issues are resolved.
Important Post-Installation Information
While this module is programmed to be plug-and-play, some vehicle systems may require a recalibration or sync procedure after the BCM is replaced. This is normal. Please be aware of the following potential requirements:
- Airbag System Sync: If your airbag warning light is illuminated after installation, a professional scan tool is needed to perform the ‘Setup SDM Primary Key in BCM’ procedure. This syncs the airbag system with the new BCM.
- Brake Pedal Position Relearn: On some models, a brake pedal position sensor relearn might be necessary to ensure the brake lights and traction control system function correctly.
Disclaimer: Vehicle systems vary. We always recommend consulting a factory service manual or a certified technician if you are unsure about any step.
Verified Vehicle Compatibility
This Body Control Module is a guaranteed fit for the following vehicles and part numbers. Please verify the location on your specific model.

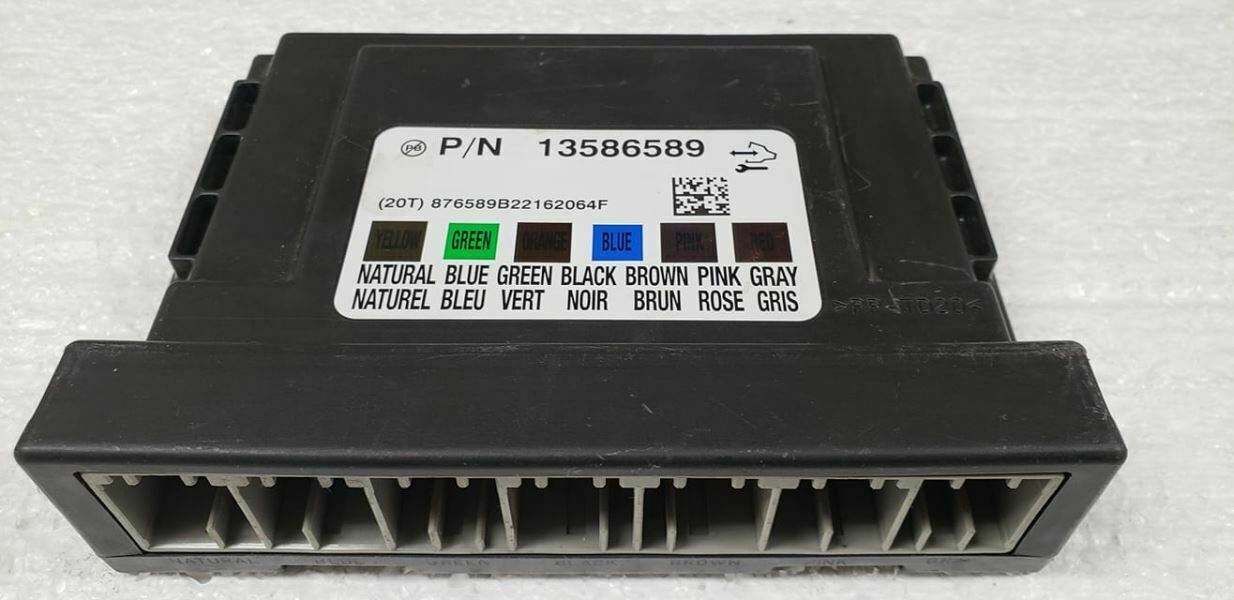

Part Numbers: 13586589, 13589093, 13580689
- 2013 Cadillac ATS: Body Control (BCM); located on the firewall.
- 2013 Cadillac XTS: Body Control (BCM); located at the left front hinge pillar.
- 2013-2014 Chevrolet Sonic: Body Control (BCM); located in the RH rear quarter panel.
- 2014 Chevrolet Impala: Body Control (BCM); for VIN 1 (4th digit, New Style), located at the LH dash.
Frequently Asked Questions
How does the programming service work?
It’s simple! After you place your order, we will provide you with instructions to ship your original BCM to our facility. We then extract the vehicle-specific data and flash it onto the replacement unit. We ship the ready-to-install module back to you, typically within 1-2 business days of receiving your original.
Do I need to do any programming myself?
No. This is a fully programmed solution. The cloning process ensures the module is plug-and-play, saving you from needing expensive scan tools or a trip to the dealership for programming.
What if my original BCM is completely dead or not communicating?
In many cases, even if the BCM is failing, we can still extract the necessary data. Please contact us before ordering if your module is severely damaged (e.g., by fire or water) to discuss options.
What does ‘No Core Charge’ mean?
It means you do not have to return your original module to us for a refund after the service. Once we have cloned the data, you can keep your old part.
Why is my airbag light on after installing the new BCM?
This can happen because the airbag system (SDM) needs to be electronically ‘introduced’ to the new BCM. A procedure called ‘Setup SDM Primary Key in BCM’ must be performed with a professional scan tool to sync the systems and turn off the light.
