Is your 6.6L Duramax-powered truck or van giving you headaches? A faulty Engine Control Module (ECM) can bring your workhorse to a dead stop, causing frustrating no-start conditions, poor fuel economy, and a dashboard lit up with warning lights. I’ve seen it countless times in my 20+ years in the shop: a perfectly good engine held hostage by a failing computer. This isn’t just an inconvenience; it’s lost time and money. This reliable, tested ECM is the solution you need to get back in control.

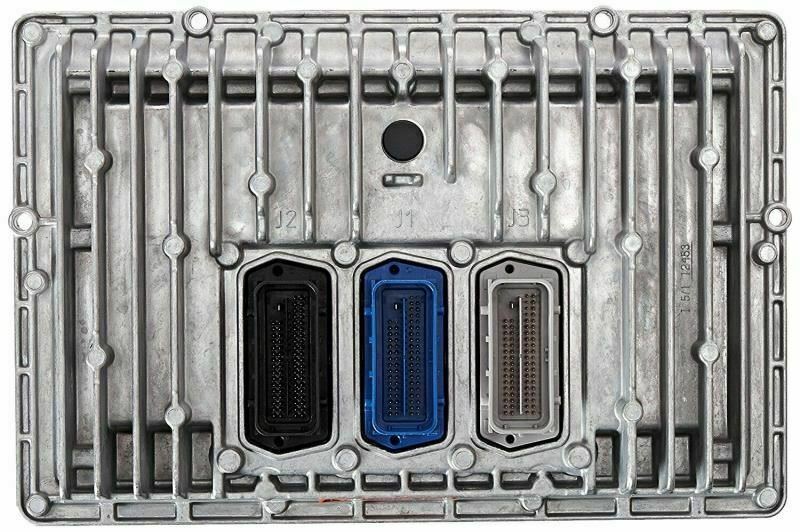

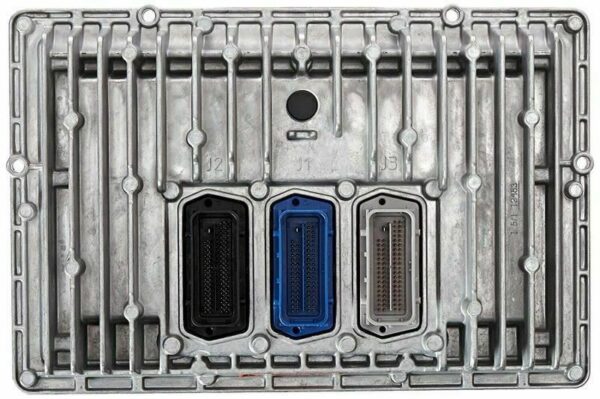

This isn’t just a part in a box. It’s a comprehensive fix. We take a genuine, used GM ECM (service no. 12653319 or 12654088) and flash it with the latest official GM software calibrated specifically to your vehicle’s VIN. This critical step ensures all factory parameters for your engine and transmission are correct from the moment you plug it in, saving you a costly trip to the dealership for initial programming. This is the most direct path to restoring your vehicle’s original performance and reliability.
Is Your Truck Showing These Symptoms?
A failing ECM can manifest in various ways, often mimicking other component failures. Here are the common signs I look for during diagnostics:
- ✔ Complete no-start or intermittent starting issues.
- ✔ Check Engine Light is on with communication-related Diagnostic Trouble Codes (DTCs) like U0100 or internal processor faults like P0601 or P0606.
- ✔ Noticeable drop in fuel efficiency and engine power.
- ✔ Rough or unstable idle.
- ✔ Transmission shifting erratically or going into limp mode.
- ✔ Other modules on the data network stop communicating.
From the Diagnostic Bay: A Tricky No-Start Case
A customer brought in a 2014 Silverado 2500 that would crank but not start. They had already replaced the fuel filter and checked for fuel pressure, assuming it was a delivery issue. All the vitals seemed fine on the surface. However, my scan tool kept losing communication with the ECM intermittently. After verifying the powers and grounds to the module were solid, I knew the problem was internal to the computer. A failing processor inside the original ECM was preventing it from commanding the fuel injectors to fire. Swapping in a correctly programmed ECM like this one had the truck running perfectly in under an hour. It’s a great reminder that communication is key—both for vehicle modules and for diagnostics.
A Straightforward Guide to Installation
Installing your replacement 2013-2014 Sierra 3500 ECM is a manageable job for a DIYer with basic tools or a quick task for any professional. Follow these steps carefully.
- Safety First: Always disconnect the negative battery terminal and wait a few minutes for the vehicle’s systems to power down completely.
- Locate the ECM: On Sierra and Silverado pickups, the ECM is located in the front left (driver’s side) of the engine compartment. On Express and Savana vans, it’s in the left rear of the engine compartment.
- Disconnect Connectors: Carefully release the locking tabs and unplug all electrical connectors from the old ECM. Inspect them for any corrosion or damage.
- Remove the Old Module: Unbolt the old ECM from its mounting bracket and remove it from the vehicle.
- Install the New Module: Mount your replacement ECM securely onto the bracket and reconnect all electrical connectors, ensuring they click into place.
- Reconnect Battery: Reattach the negative battery terminal.
- Perform Relearn Procedures: This is a critical final step. If the truck does not start, you MUST perform a Vehicle Theft Deterrent System (VTDS) relearn using a compatible scan tool or the GM TIS2Web system. Other procedures, like a crankshaft position variation relearn, may also be necessary to ensure optimal performance.
Guaranteed Fitment for Your GM HD Vehicle
This ECM is a direct-fit replacement for the following vehicles equipped with the 6.6L Duramax diesel engine. Please match your service number (12653319 or 12654088) to confirm compatibility.
- ✔ 2013-2014 Chevrolet Silverado 2500 / 3500
- ✔ 2013-2014 GMC Sierra 2500 / 3500 (including Denali)
- ✔ 2013-2014 Chevrolet Express 2500 / 3500
- ✔ 2013-2014 GMC Savana 2500 / 3500
Note for Van Owners: For 2014 models, this fits vehicles without the ‘pull-ahead design’ option.
Do I need to do anything after I order?
Do I need to do anything after I order?
Yes. After placing your order, you must send us your vehicle’s 17-digit VIN. We cannot program and ship your module without it. This ensures the ECM has the correct software for your truck’s specific options.
What does “theft relearn” mean?
The theft deterrent system pairs your vehicle’s security components to the ECM. When you install a new ECM, the system sees it as an unknown part and may prevent the engine from starting. A relearn procedure, done with a professional scan tool or GM’s software, re-establishes this security handshake.
Is this a new part?
No, this is a thoroughly tested, used OEM part sourced from a salvaged vehicle. This provides OEM reliability and function at a significant cost saving compared to a new part from a dealer.
Why is my 2013-2014 Sierra 3500 ECM failing?
ECM failures can happen for several reasons, including age, heat cycles in the engine bay, water intrusion, or electrical issues like shorts or voltage spikes. Over time, internal electronic components can simply wear out, leading to the symptoms described.
What other relearns might be needed?
Depending on your vehicle, you may need to perform a crankshaft position variation relearn for misfire detection, injector flow rate programming (if injectors were also changed), or other setup procedures. This is the buyer’s responsibility and requires a high-level scan tool.
