Restore Your Duramax’s Power and Reliability
Is your 2013-2014 GM HD truck or van feeling off? An erratic idle, poor fuel economy, stalling, or a stubborn check engine light can often point directly to a failing Engine Control Module (ECM). The ECM is the brain of your 6.6L Duramax engine, managing everything from fuel injection timing to transmission shifting. When it falters, the entire vehicle suffers. This isn’t just an inconvenience; it’s a critical failure that can leave you stranded.

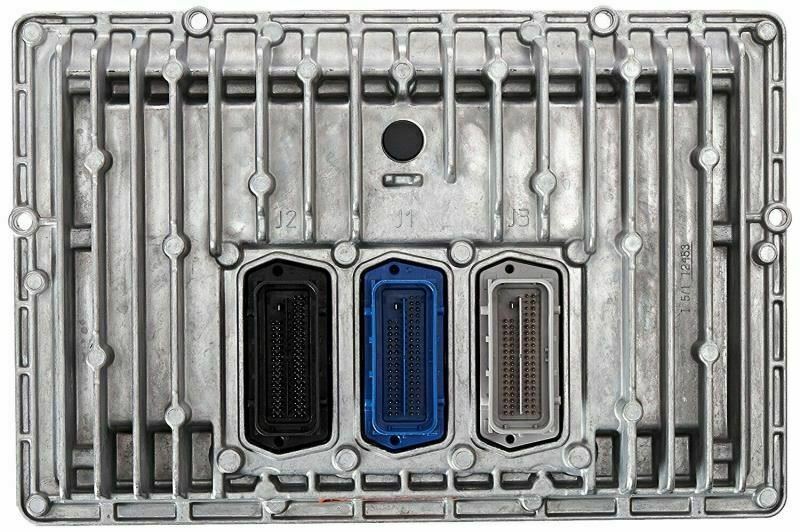

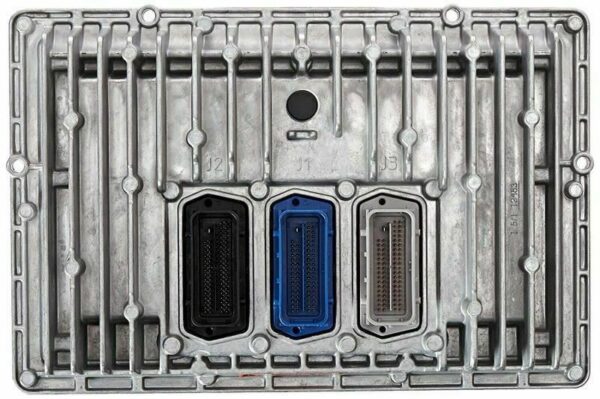

This listing is for a thoroughly tested, used OEM Engine Control Module, compatible with service numbers 12653319 and 12654088. We take the biggest headache out of the repair process: programming. Simply provide your vehicle’s VIN at checkout, and our technicians will flash this module with the latest GM-certified software specific to your truck. It arrives at your door ready for installation, saving you a trip to the dealership and hundreds of dollars in programming fees.
Case Study: A Tricky Diagnosis
I once had a 2013 Silverado 2500 in my bay with an intermittent no-start condition that was driving the owner crazy. It threw no consistent codes, just occasional communication errors (U-codes) that would clear themselves. We checked grounds, wiring harnesses, and sensors for days. On a hunch, I put a scope on the CAN bus lines right at the ECM connector. I noticed that during hot restarts, the signal would degrade significantly. The ECM’s internal processor was failing under heat soak, but not enough to set a hard fault like a P0601. Swapping in a known-good ECM solved it instantly. It’s a classic example of how a failing 2013-2014 Sierra 2500 ECM can create ghost-like problems that defy simple diagnostics.
Is Your Truck Showing These Symptoms?
A failing ECM can manifest in numerous ways. If you’re experiencing any of the following, your engine’s computer is a likely culprit. In my 20+ years of experience, these are the most common indicators I’ve seen in the shop:
- ✔ Check Engine Light is on with codes like P0601 (Internal Control Module Memory Check Sum Error) or P0606 (ECM/PCM Processor Fault).
- ✔ Intermittent or complete no-start condition, especially when the engine is warm.
- ✔ Unexplained drop in fuel mileage.
- ✔ Harsh or erratic automatic transmission shifting.
- ✔ Engine stalling, stumbling, or misfiring for no apparent reason.
- ✔ Communication loss codes (U-codes) with other modules on the vehicle.
A Straightforward Guide to Installation
Replacing the ECM on these trucks is a job an experienced DIYer or any professional can handle. The key is to follow the procedure and be prepared for the final security relearn step.
- Safety First: Disconnect the negative terminal from both batteries to prevent any electrical shorts.
- Locate the ECM: On Sierra and Silverado pickups, the ECM is located in the front, left (driver’s side) of the engine compartment. On Express and Savana vans, it’s in the rear, left (driver’s side) of the engine compartment.
- Disconnect Connectors: Carefully release the locking tabs and unplug the large wiring harness connectors from the old ECM. Inspect them for any corrosion or damage.
- Remove the Old Module: Unbolt the old ECM from its mounting bracket and remove it from the vehicle.
- Install the New Module: Bolt your new, pre-programmed ECM into place and securely reconnect the wiring harnesses. Ensure they click into place.
- Reconnect Power: Reconnect the negative battery terminals.
- Perform Relearn Procedures: Turn the key to the ‘ON’ position. IMPORTANT: If the vehicle does not start, you MUST perform a Vehicle Theft Deterrent (VTD) relearn using a compatible scan tool with access to GM’s TIS2Web programming system. Other procedures like a crankshaft position variation relearn or injector flow rate programming may also be required depending on your specific situation. This is the responsibility of the installer.
Guaranteed Fitment for Your GM HD Truck or Van
This module is a direct replacement for the original ECM in a wide range of GM vehicles equipped with the 6.6L Duramax diesel engine. Please verify your part number and match your vehicle from the list below to ensure compatibility.
- ✔ 2013-2014 Chevrolet Silverado 2500/3500 HD
- ✔ 2013-2014 GMC Sierra 2500/3500 HD (including Denali)
- ✔ 2013-2014 Chevrolet Express 2500/3500 Van
- ✔ 2013-2014 GMC Savana 2500/3500 Van
Note for Van Owners: Please check if your vehicle has the ‘pull-ahead design’ for 2014 models, as this part fits models without it.
Frequently Asked Questions
Frequently Asked Questions
Why do you need my VIN?
Your Vehicle Identification Number (VIN) allows us to load the exact, correct factory software and calibrations for your truck’s specific options. This ensures proper engine, transmission, and emissions system operation, making the installation process much smoother.
What is a Vehicle Theft Deterrent (VTD) relearn?
The VTD system, or anti-theft system, pairs your ECM to other modules in the vehicle. When you install a different ECM, the system sees a mismatch and prevents the engine from starting to deter theft. A relearn procedure, done with a professional scan tool like GM’s TIS2Web, re-establishes this security handshake.
Is this a new part?
No, this is a high-quality, tested used ECM sourced from a salvaged vehicle. This provides a reliable and affordable alternative to a brand-new dealership part, without sacrificing performance. Each unit is inspected and verified before being programmed and shipped.
Can I do the VTD relearn myself?
While some older GM vehicles had a simple 30-minute key-cycle relearn, these newer trucks require a diagnostic tool with a subscription to GM’s online service (TIS2Web). Most DIYers will need to have a local professional mechanic perform this final step after installation.
Will this fix my P0601 code?
Yes, in the vast majority of cases, a P0601 code indicates a fatal internal error within the ECM itself. Replacing the module with this pre-programmed unit is the correct and definitive repair for that specific diagnostic trouble code.
