If your 2013-2014 Chevrolet Orlando is plagued by strange and unpredictable electrical problems, you’ve likely met the culprit: a failing Body Control Module (BCM). I’ve spent over two decades diagnosing these issues, and I know how frustrating it can be when your power windows, locks, or interior lights stop working correctly, or when phantom warning lights appear on your dash. This isn’t just an inconvenience; it’s a breakdown of your vehicle’s central nervous system. Dealerships will quote you a fortune for a new module and the mandatory programming. We offer a smarter, more affordable solution.
This is a fully tested, reliable replacement BCM that comes with our professional cloning service. This means you get a true plug-and-play module without any need for dealer intervention. The process is simple: after your purchase, you’ll ship your original BCM to us. We then transfer all the critical data—including key programming, security information, and vehicle-specific options—to this replacement unit. The result is a module that is perfectly matched to your Orlando, restoring full functionality right out of the box. This service eliminates the high costs and scheduling hassles associated with dealership programming.
A Technician’s Notebook
I remember a 2014 Orlando that came into my shop with a classic ‘haunted car’ scenario. The horn would blare randomly, the dome light flickered, and the car wouldn’t recognize the key fob intermittently. The owner had already replaced the battery and checked all the fuses. After connecting my scan tool, I saw multiple communication loss codes (U-codes) pointing to the BCM. A failing BCM doesn’t always die completely; often, internal corrosion or a failing microprocessor causes it to send erratic signals, creating these bizarre symptoms. By cloning his original module’s data onto a quality replacement, we solved every single issue in one go, saving him hundreds compared to the dealer’s quote.
Common Signs of a Failing GM BCM
- ✔ Power windows, door locks, or mirrors operating erratically or not at all.
- ✔ Interior or exterior lights failing to turn on or off correctly.
- ✔ The security system preventing the car from starting (blinking security light).
- ✔ Inaccurate gauge readings or warning lights on the instrument cluster (e.g., airbag, ABS).
- ✔ Key fobs are no longer recognized by the vehicle.
- ✔ Communication error codes stored, such as U0140, U0155, or other U-series codes.
- ✔ Parasitic battery drain that kills your battery overnight.
A Straightforward Guide to Our Cloning Service & Installation
- ✔ Place Your Order: Purchase this BCM. We will then contact you with clear, step-by-step instructions and the shipping address for sending us your original module.
- ✔ Remove Your Original BCM: On the 2013-2014 Orlando, the BCM is located below the center console. First, disconnect the negative battery terminal to ensure safety. Carefully access the module and disconnect its electrical connectors. Remove any mounting bolts or clips and take out the module.
- ✔ Ship Us Your Module: Package your original BCM securely and ship it to the address we provide. We recommend using a service with tracking.
- ✔ We Handle the Programming: Once we receive your module, our technicians will perform a full data transfer to the replacement unit within 1-2 business days.
- ✔ Install Your Plug-and-Play BCM: We ship the newly programmed BCM back to you. Simply install it by reversing the removal steps, reconnect your battery, and start your vehicle. All your original functions and keys will work instantly.
Post-Installation Checks
In most cases, no further action is needed. However, on some GM vehicles, you may need to perform one of the following procedures if a specific warning light appears:
- Airbag System Sync: If the airbag warning light is illuminated after installation, a simple “Setup SDM Primary Key in BCM” procedure is required. This syncs the airbag system with the new BCM and can be done with a professional-grade diagnostic tool.
- Brake Pedal Position Relearn: To ensure perfect brake light and traction control operation, a brake pedal position sensor relearn might be necessary. This is also a quick procedure performed with a capable scan tool.
Guaranteed Vehicle Compatibility

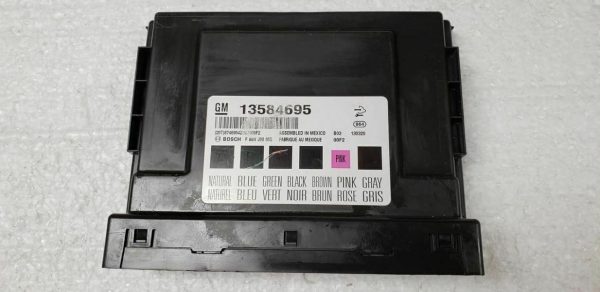

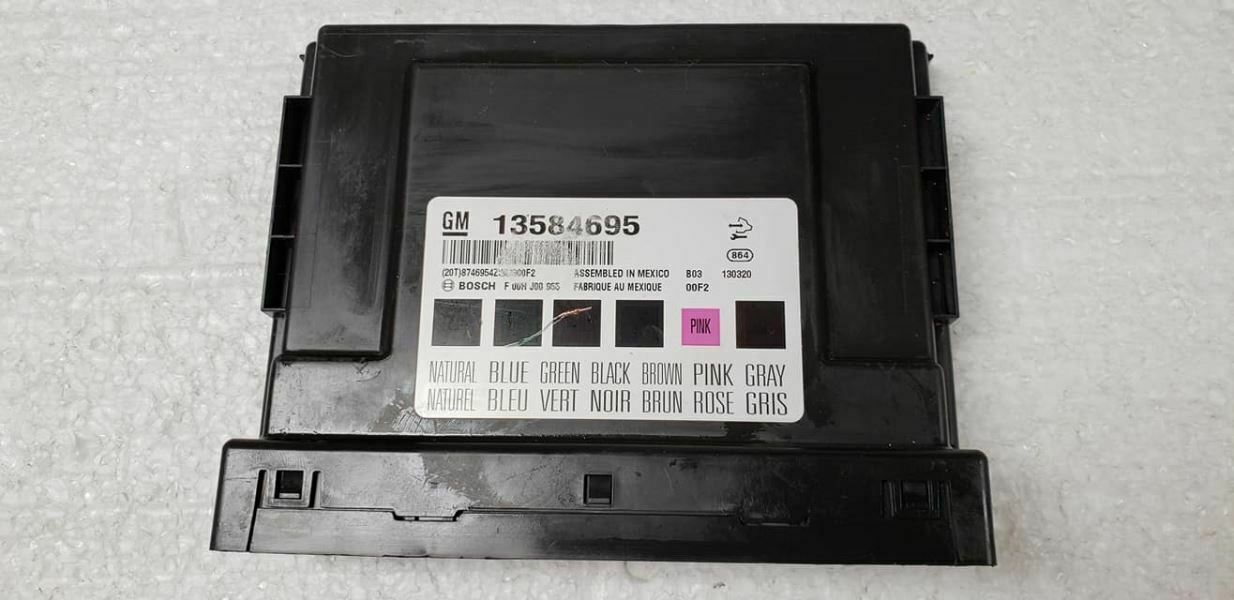

This module is a direct replacement for part number 13589197 and is also compatible with the following part numbers: 13584695, 13586273, 13580697, 13588447, 13589324, and 13589325. It is confirmed to fit the following vehicles:
- 2013-2014 Chevrolet Orlando (below center console)
- 2013-2017 Chevrolet Equinox / GMC Terrain (LH side dash)
- 2013-2015 Chevrolet Cruze (LH kick panel)
- 2016 Chevrolet Cruze Limited (VIN P, LH kick panel)
- 2013 Chevrolet Malibu (LH kick panel)
- 2014-2015 Chevrolet Spark (gasoline, left lower a-pillar)
- 2013-2014 Chevrolet Trax (LH side of dash)
- 2013 Chevrolet Volt (RH engine compartment, check ID)
- 2013-2014 Buick Encore (LH side of dash)
- 2013 Buick Regal (LH dash)
- 2013-2017 Buick Verano (below center of dash)
- 2013 Cadillac SRX (LH dash)
Always verify your BCM’s location and match your part number to ensure compatibility. Our no-core-charge policy means you can keep your original module.
Frequently Asked Questions
How does the mail-in cloning service work?
After you place your order, we’ll email you instructions to ship your original BCM to us. We then extract its unique data and flash it onto the replacement module. We ship the programmed module back to you, ready for plug-and-play installation.
Will I need to program my keys again?
No. Because we are cloning your original module’s data, the replacement BCM will recognize all your existing keys. No key programming is necessary.
Is this a difficult part to install myself?
For a DIYer with basic tools, removing and replacing the BCM is very manageable. The main challenge is accessing it under the center console. The key benefit of our service is that the electronic part—the programming—is completely done for you.
What if my original BCM is completely dead or unreadable?
In most cases, even with significant internal failure, we can still retrieve the necessary data. If for some reason your module’s data is completely corrupted, we will contact you to discuss options, which may include a full refund.
Do I need to send in my VIN?
No. We don’t need your VIN because we are performing a direct 1-to-1 data clone from your original BCM. This method is more accurate as it preserves all vehicle-specific settings beyond what the VIN provides.
