Get Your 6.6L Duramax Back on the Road with a Reliable, Programmed ECM

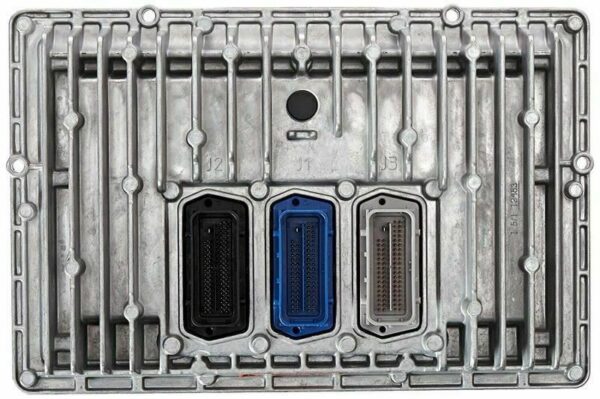

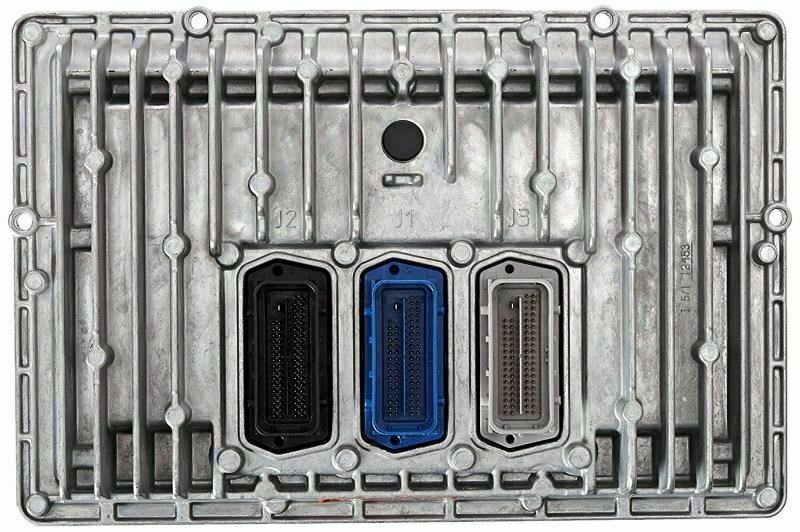

As a technician with over two decades of experience under the hood, I know the frustration of a truck or van that won’t start, runs rough, or throws baffling communication codes. The Engine Control Module (ECM) is the brain of your 6.6L Duramax engine, and when it fails, it can bring your entire operation to a halt. This isn’t just an inconvenience; it’s lost time and money. This thoroughly tested, used ECM, compatible with service numbers 12653319 and 12654088, is the dependable solution you need.
We take the guesswork out of the replacement process. Before we ship this module, we flash it with the latest GM software updates, precisely calibrated to your vehicle’s unique Vehicle Identification Number (VIN). This ensures optimal performance and compatibility right out of the box, saving you a costly trip to the dealership for programming. This is the most efficient way to solve complex electronic issues and restore the power and reliability you expect from your GM HD truck or van.
A Technician’s Notebook: The Intermittent No-Start Nightmare
I once had a 2013 Silverado 2500 in my bay that was a real head-scratcher. The owner said it would randomly fail to start, but only after it was hot. No check engine light, no consistent codes. We checked fuel pressure, starter, and batteries—all perfect. On a hunch, I monitored the data stream during cranking on a hot-soak. I noticed the ECM would occasionally drop communication with the other modules for a split second, just long enough to prevent the fuel injectors from firing. It was a classic case of thermal failure on the ECM’s main processor. A replacement, programmed 2013-2014 Express 3500 ECM like this one solved the problem permanently. These intermittent faults are often the first sign of a failing computer.
Is Your Duramax Showing These Red Flags?
A failing ECM can manifest in various ways. If you’re experiencing any of the following, this module is likely the solution you’ve been looking for:
- ✔ Complete no-start or crank-no-start condition.
- ✔ Check Engine Light with communication-related Diagnostic Trouble Codes (DTCs) like U0100 (Lost Communication with ECM/PCM).
- ✔ Stalling, sputtering, or erratic engine performance.
- ✔ Specific internal processor fault codes, such as P0601, P0606, or P062B.
- ✔ Issues with fuel injector control or transmission shifting commands.
- ✔ The vehicle enters a reduced power or “limp” mode unexpectedly.
Your Step-by-Step Installation Roadmap
Installing your replacement ECM is a straightforward process. However, for a successful repair, it’s critical to follow the post-installation procedures. This is a job a skilled DIYer or any professional mechanic can handle.
- Safety First: Disconnect the negative terminal from your vehicle’s battery (or batteries) to prevent any electrical damage.
- Locate the ECM: On Express and Savana vans, it’s typically in the LH rear of the engine compartment. On Sierra and Silverado trucks, it’s in the LH front of the engine compartment.
- Disconnect and Remove: Carefully unplug the electrical connectors. Note their orientation. Then, unbolt and remove the old ECM from its bracket.
- Install the New ECM: Mount the replacement module securely and reconnect the electrical harnesses. Ensure they click into place.
- Reconnect Battery: Reattach the negative battery terminal.
- CRITICAL – Theft Relearn: Turn the key to the ‘ON’ position. If the engine does not start and a security light is flashing, a Vehicle Theft Deterrent (VTD) relearn is required. This must be performed using a GM-approved programming interface with access to TIS2Web. This is a standard procedure for this repair.
- Additional Relearns: Depending on your vehicle’s specific needs, other procedures like a Crankshaft Variation Relearn or injector flow rate programming may be necessary using a capable scan tool. This is the responsibility of the installer.
Verified Fitment for Your GM 6.6L Diesel
This ECM is a direct-fit replacement for a wide range of GM trucks and vans equipped with the 6.6L Duramax diesel engine. Please verify your vehicle is on this list to ensure compatibility:
- 2013-2014 Chevrolet Express 2500/3500 Van (6.6L)
- 2013-2014 GMC Savana 2500/3500 Van (6.6L)
- 2013-2014 Chevrolet Silverado 2500/3500 Pickup (6.6L)
- 2013-2014 GMC Sierra 2500/3500 Pickup (6.6L)
- 2013-2014 GMC Sierra Denali 2500/3500 (6.6L)
Note for 2014 Van Owners: Fits models without the ‘pull-ahead design’ option.
Frequently Asked Questions About This ECM
Frequently Asked Questions
What exactly is VIN programming?
VIN programming involves loading your vehicle’s specific software and calibration files onto the ECM. This ensures the module communicates correctly with your engine, transmission, and other systems, just like the original part from the factory. We handle this for you before shipping.
Why is a theft relearn required after installation?
The Vehicle Theft Deterrent (VTD) system pairs your vehicle’s keys and other security modules to the ECM. When you install a different ECM, the system sees a mismatch and prevents the engine from starting to protect against theft. The relearn procedure re-establishes this security handshake.
What tools are needed for the theft relearn?
The VTD relearn must be performed with a professional tool that can access the official GM TIS2Web (Technical Information System). This includes tools like a GM MDI/MDI 2, a high-end Snap-on or Autel scanner with a J2534 pass-thru device, or a similar professional-grade interface.
Is this a new part?
No, this is a high-quality, tested used part sourced from a salvaged vehicle. Each unit is inspected and verified to be fully functional before being programmed and shipped, offering a reliable fix at a significant cost saving compared to a new dealer part.
How do I provide my VIN number?
After you complete your purchase, you will need to send us a message with your 17-digit VIN. We cannot program and ship your ECM without it, so please provide it promptly to avoid delays.
