Restore Your Vehicle’s Electrical System with a Hassle-Free Solution
Are you battling bizarre electrical issues in your Chevrolet Orlando or other GM vehicle? Flickering lights, unresponsive power windows, a security system that acts on its own, or even a frustrating no-start condition can often be traced back to a single culprit: a failing Body Control Module (BCM). As the central hub for your car’s comfort and convenience features, a faulty BCM can turn your daily drive into a nightmare. Instead of facing expensive diagnostic fees and programming charges at the dealership, our professional cloning service offers a reliable and straightforward fix.

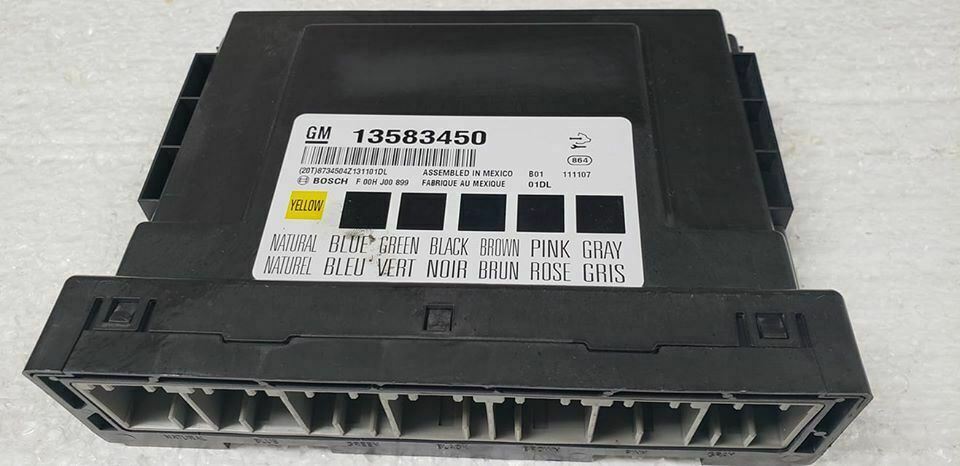

This service provides you with a replacement BCM that is a direct fit for part number 13580198 and many others. The process is simple: you purchase this service, ship your original BCM to our facility, and we handle the rest. Our technicians will extract the unique, vehicle-specific data from your module and flawlessly transfer it to a replacement unit. This ensures that all your vehicle’s original settings, including key fob information and security parameters, are perfectly preserved. The BCM you receive back will be 100% plug-and-play, getting you back on the road without any additional programming.
A Technician’s Notebook
I remember a 2011 Chevy Equinox that came into the shop with a laundry list of complaints. The radio would turn off randomly, the driver’s side window wouldn’t work, and the dome light had a mind of its own. The customer had already replaced the battery and checked fuses. After connecting the scan tool, I saw a dozen communication error codes, all pointing away from the BCM. However, experience has taught me that when multiple, unrelated body systems act up simultaneously, the BCM is the prime suspect. It’s the conductor of the orchestra, and when it’s off-key, the whole performance suffers. We performed a BCM clone, and the new module resolved every single issue instantly. It’s a classic case where the root cause is simpler than the symptoms suggest.
Common Signs of a Failing Body Control Module
- ✔ Intermittent or non-functional power windows, locks, or mirrors.
- ✔ Erratic behavior from the dashboard lights, radio, or climate control.
- ✔ The security system alarm sounding for no reason or preventing the car from starting.
- ✔ Communication error codes, such as U0140 (Lost Communication With Body Control Module), stored in other modules.
- ✔ Rapid battery drain while the vehicle is parked.
- ✔ Inconsistent operation of interior or exterior lighting.
Your Straightforward Installation Guide
- ✔ Safety First: Always disconnect the negative terminal from your vehicle’s battery before starting any electrical work.
- ✔ Locate the BCM: On the 2012 Chevrolet Orlando, the BCM is typically found below the center console. For other models, it may be in the driver’s side kick panel or dash area. Refer to your vehicle’s service manual for the exact location.
- ✔ Remove the Original BCM: Carefully disconnect the electrical connectors. Most have a locking tab that needs to be pressed or lifted. Once disconnected, unbolt the module from its mounting bracket.
- ✔ Install the New BCM: Mount the programmed BCM you received from us into the original location and securely reconnect all electrical connectors.
- ✔ Reconnect the Battery: Re-attach the negative battery terminal.
- ✔ Perform Post-Install Checks: Start the vehicle and test all body functions—windows, locks, lights, radio, etc. Note the post-installation procedures below, as some relearns may be necessary.
Important Post-Installation Notes
While our cloning service makes this a plug-and-play repair, some vehicle systems may require a recalibration after the BCM is replaced. This is a normal part of the repair process.
- Airbag System Sync: If your airbag warning light is illuminated after installation, a professional scan tool is needed to perform the ‘Setup SDM Primary Key in BCM’ procedure. This syncs the new BCM with the airbag system.
- Brake Pedal Position Relearn: On certain models, a brake pedal position sensor relearn may be required to ensure the brake lights and traction control system function correctly.
Disclaimer: Vehicle systems vary. Always consult a factory service manual or a qualified technician if you are unsure about any step.
Will This Fit My Vehicle?
This BCM cloning service is compatible with a wide range of GM vehicles. We guarantee compatibility if your original module’s part number is on this list. This module fits the specified vehicle and also serves as a replacement for the following part numbers: 13579004, 13580198, 13582396, 13583450, 13586856, 13582688, 13586278, 13501737, 13501739, 13577924, 13580773, and 13583451.
Fitment includes but is not limited to:
- Buick LaCrosse (2011-2012)
- Buick Regal (2011)
- Cadillac SRX (2011-2012)
- Chevrolet Camaro (2011)
- Chevrolet Cruze (2012)
- Chevrolet Equinox (2011)
- Chevrolet Orlando (2012)
- Chevrolet Volt (2011, 2013)
- GMC Terrain (2011)
Frequently Asked Questions
How does the mail-in cloning service work?
After you place your order, we will contact you with detailed instructions for shipping your original BCM to us. Once we receive it, our technicians will transfer its data to a replacement module and ship the new, plug-and-play BCM back to you, typically within 1-2 business days.
Is this a guaranteed fix for my car’s problems?
This service corrects issues directly caused by a faulty BCM. While the symptoms listed are common indicators of BCM failure, we always recommend a proper diagnosis by a qualified mechanic to confirm the BCM is the root cause before ordering.
Do I need to send my keys with the module?
No. Because we are cloning all the data from your original BCM, your existing keys will be recognized by the replacement module automatically. You do not need to send your keys.
What is a core charge? Do I have to return my old BCM?
We require your original BCM to perform the cloning service. However, there is no separate core charge, and you do not get the old module back as its only purpose is for data transfer. You keep the original non-functional module.
What tools are required for the post-installation procedures?
The Airbag System Sync and Brake Pedal Position Relearn procedures require a professional-grade bidirectional scan tool, such as a GM Tech 2, MDI, or equivalent high-end scanner. Many local repair shops can perform these relearns for you if needed.
