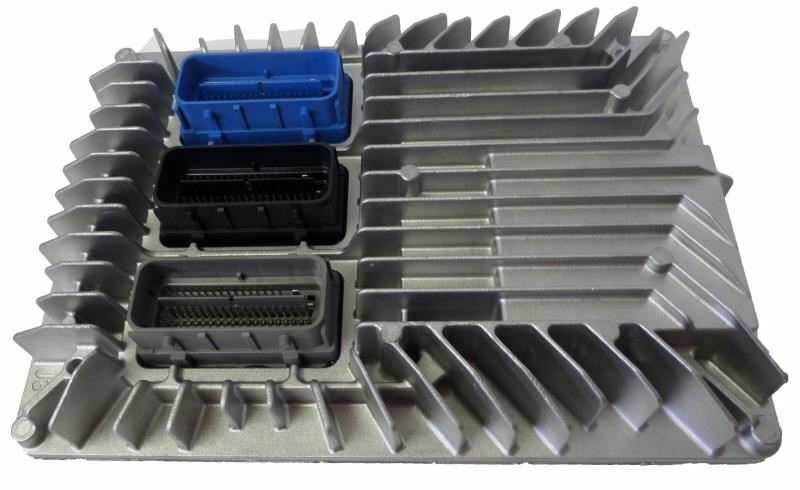

If you’re dealing with a frustrating Check Engine Light, poor performance, or a no-start condition in your Chevrolet Impala, the Engine Control Module (ECM) is often the culprit. As a technician with over two decades of experience, I’ve seen firsthand how a failing ECM can cause a cascade of confusing issues. This isn’t just a part; it’s the brain of your engine, and getting a reliable replacement is critical. That’s why we offer this fully programmed ECM, a direct solution for part numbers 12643248, 12651994, and 12652814.
What sets this module apart is our professional programming service. Before we ship it, we flash the unit with the latest official GM software updates, tailored specifically to your car’s Vehicle Identification Number (VIN). This means you get a part that is truly plug-and-play, saving you from the time, cost, and hassle of a dealership visit for programming. It’s the most effective way to restore your vehicle’s original performance, fuel efficiency, and reliability.
Is Your Impala Showing These Symptoms?
A faulty ECM can manifest in many ways. If you’re experiencing any of the following, this module is the likely solution your vehicle needs.
- âś” Persistent Check Engine Light (CEL) that won’t clear.
- âś” Engine cranks but refuses to start.
- âś” Unexplained drops in fuel economy.
- âś” Rough idling, stalling, or hesitation during acceleration.
- âś” Communication error codes, such as U0100 (Lost Communication with ECM/PCM).
- âś” Internal module failure codes, like P0601, P0602, or P0606.
- âś” Automatic transmission shifting erratically or harshly.
- âś” Failure to pass state emissions testing.
Case Study: A Tricky Diagnosis
I remember a 2013 Impala that came into the shop with an intermittent stalling problem that had two other mechanics stumped. The owner had already replaced the fuel pump and MAF sensor with no luck. The car would run fine for days, then suddenly die at a stoplight. No consistent codes were stored, just a random U0100 every once in a while. After checking all the wiring and grounds, we hooked up a scope to the ECM’s power and ground circuits. We discovered a momentary internal voltage drop inside the module itself right before a stall event. It was a classic case of a heat-soaked ECM failing internally. We installed one of our pre-programmed modules, and the customer called a month later to say the car had been running perfectly ever since. It’s a reminder that sometimes the ‘ghost in the machine’ is the machine’s own brain.
A Straightforward Guide to Installation
Replacing the ECM on your Impala is a manageable job for a DIYer with basic tools. For the 2012-2013 Impala, you’ll find it conveniently located on the air cleaner bracket.
- Safety First: Disconnect the negative terminal from your vehicle’s battery and wait at least 10 minutes for the system capacitors to discharge.
- Locate the ECM: On most Impala models covered, the ECM is attached to the side of the air filter housing. You can’t miss it.
- Disconnect the Connectors: Carefully unlatch and remove the electrical connectors. Inspect them for any corrosion or damage before proceeding.
- Remove the Old Module: Unbolt the old ECM from its mounting bracket.
- Install the New Module: Mount your new, pre-programmed ECM in place and securely fasten the bolts.
- Reconnect Everything: Plug the electrical connectors back into the new module until they click into place. Reconnect the negative battery terminal.
- Perform Security Relearn: You will likely need to perform a simple key-cycle security relearn procedure. Turn the key to the ‘ON’ position for 10-15 minutes, then ‘OFF’ for 10 seconds. Repeat this process three times. On the fourth try, the vehicle should start and run normally.
Will This Fit My Vehicle?
We guarantee compatibility with the following vehicles and part numbers. Please ensure your vehicle is on this list or that you are replacing part numbers 12651994, 12643248, 12652814, or AA69.
CAMARO 12 3.6L (ID 12643248 or 12651994)
CAPRICE 12-13 3.6L
CAPTIVA SPORT 12-13 (LH engine compartment, ID 12643248 or 12651994)
CTS 12 3.6L (RH front engine compartment, ID 12641994 or 12643248)
CTS 13 3.0L or 3.6L (RH front engine compartment)
CTS 14 Cpe or SW, 3.0L or 3.6L
ENCLAVE 12 (behind fan shroud)
EQUINOX 12 (LH engine compartment)
IMPALA 12 (air cleaner bracket, ID 12641994 or 12643248)
IMPALA 13 (air cleaner bracket)
IMPALA 14-16 VIN W (4th digit, Limited)
LACROSSE 12 (LH engine compartment)
MALIBU 13 2.4L (LH engine compartment, ID 12643248, 12651994, or 12652814)
ORLANDO 12-13 (LH engine compartment, ID 12643248 or 12651994)
REGAL 12 (LH engine compartment)
SRX 12 (LH engine compartment)
TERRAIN 12 (LH engine compartment)
TRAVERSE 12 (behind fan shroud)
VERANO 12-13 2.4L
Frequently Asked Questions
How does the VIN programming work?
After you place your order, simply provide us with your vehicle’s 17-digit VIN. Our technicians will use this number to load the correct, most up-to-date GM software onto the module before shipping. This ensures it communicates perfectly with your car’s other systems.
Do I need any special tools to install this?
No special tools are required. Basic hand tools like a socket set are all you need for the physical installation. The only other procedure is the key-cycle security relearn, which requires no tools at all.
Is this a new or used part?
This is a high-quality, inspected, and tested OEM part that has been professionally programmed for your specific vehicle. It provides the same reliability and function as a new dealer part without the high cost.
Will this fix my car’s specific problem?
This ECM is a direct solution for issues caused by a faulty module, such as internal processor errors (P06xx codes) or communication failures. While it resolves the most common electronic engine problems, we always recommend a proper diagnosis to confirm the ECM is the point of failure before ordering.
What if I order the wrong part?
We strongly encourage you to match your part number or verify fitment using the list provided. Because each module is programmed to a specific VIN, it’s important to get it right. If you have any doubts, please contact us with your VIN before ordering, and we’ll be happy to confirm compatibility.
