Restore Full Electrical Function to Your GM Truck or SUV
If your 2012-2014 Cadillac Escalade ESV is starting to feel haunted by electrical gremlins, the Body Control Module (BCM) is often the culprit. As a technician with over two decades of experience, I’ve seen firsthand how a failing BCM can cause a cascade of confusing problems—from power windows with a mind of their own to a vehicle that refuses to start. The BCM is the central command center for your vehicle’s body electronics, managing everything from your interior lights and radio to the security system. When it fails, the symptoms can be sporadic and frustrating to diagnose.
This isn’t just a replacement part; it’s a complete, ready-to-install solution. We take a reliable BCM and flash it with the latest GM-certified software, specifically programmed to your vehicle’s unique Vehicle Identification Number (VIN). This critical step ensures seamless communication between all your vehicle’s modules, eliminating the need for an expensive trip to the dealership for programming. You get a part that works correctly right out of the box, designed to restore the factory performance and reliability you expect from your vehicle.
Case Study: A Tricky Diagnosis
I remember a 2013 Sierra 2500 that came into my bay with a bizarre set of symptoms. The owner complained that his radio would randomly shut off, the dome light would flicker, and sometimes the power door locks wouldn’t respond. He’d already replaced the battery to no avail. A scan revealed a dozen intermittent communication codes (U-codes) pointing to nearly every system. This pattern is a classic sign of a network issue, and the BCM is the network hub. After verifying its power and ground connections were solid, we knew the internal logic of the BCM had failed. Installing a VIN-programmed module like this one resolved every single issue in one go, saving the customer hundreds in diagnostic time and dealer programming fees.
Is Your GM Vehicle Showing These Symptoms?
A failing BCM can manifest in many ways. If you’re experiencing any of the following, this module is the likely solution:
- ✔ Erratic or non-functional power windows, locks, or mirrors.
- ✔ Interior or exterior lights flickering, staying on, or not working at all.
- ✔ The security or anti-theft system light is illuminated, preventing the engine from starting.
- ✔ The radio or infotainment system behaves unpredictably.
- ✔ Diagnostic trouble codes (DTCs) related to loss of communication, such as U0140, U0155, or other U-codes.
- ✔ Wipers or other accessories activating on their own.
A Straightforward Guide to Your BCM Installation
Replacing the BCM is a manageable job for a confident DIYer. Follow these steps to get your vehicle back in top shape. The module is typically located under the driver’s side of the dashboard, near the steering column.
- Safety First: Always disconnect the negative terminal from your vehicle’s battery and wait a few minutes before beginning work.
- Access the Module: Remove any lower dash panels or trim necessary to gain clear access to the Body Control Module.
- Disconnect the Old BCM: Carefully unplug all electrical connectors from the module. Most have a locking tab that needs to be depressed or lifted. Do not force them.
- Remove the Module: Unbolt or unclip the old BCM from its mounting bracket.
- Install the New BCM: Mount your new, pre-programmed BCM in the same location and secure it.
- Reconnect and Reassemble: Plug all electrical connectors firmly into the new module. Reinstall any trim panels you removed and reconnect the battery terminal.
- Perform Final Checks: Start the vehicle and test all body functions—lights, windows, locks, radio, etc. Refer to the post-installation procedures below if any warning lights appear.
Important Post-Installation Steps
While our VIN programming handles the majority of the setup, some vehicle systems may require a relearn procedure after the new 2012-2014 Escalade ESV BCM is installed. This is normal and ensures all components are communicating correctly.
- ✔ Airbag System Sync: If your airbag warning light is on after installation, a professional scan tool is needed to perform the ‘Setup SDM Primary Key in BCM’ procedure. This syncs the new BCM with the airbag system. This is only required if the light is on.
- ✔ Brake Pedal Position Relearn: On some models, a brake pedal position sensor recalibration may be needed to ensure your brake lights and traction control system function properly.
Disclaimer: Vehicle systems vary. We always recommend consulting a factory service manual or a certified technician if you are unsure about any step.
Verified Vehicle Compatibility

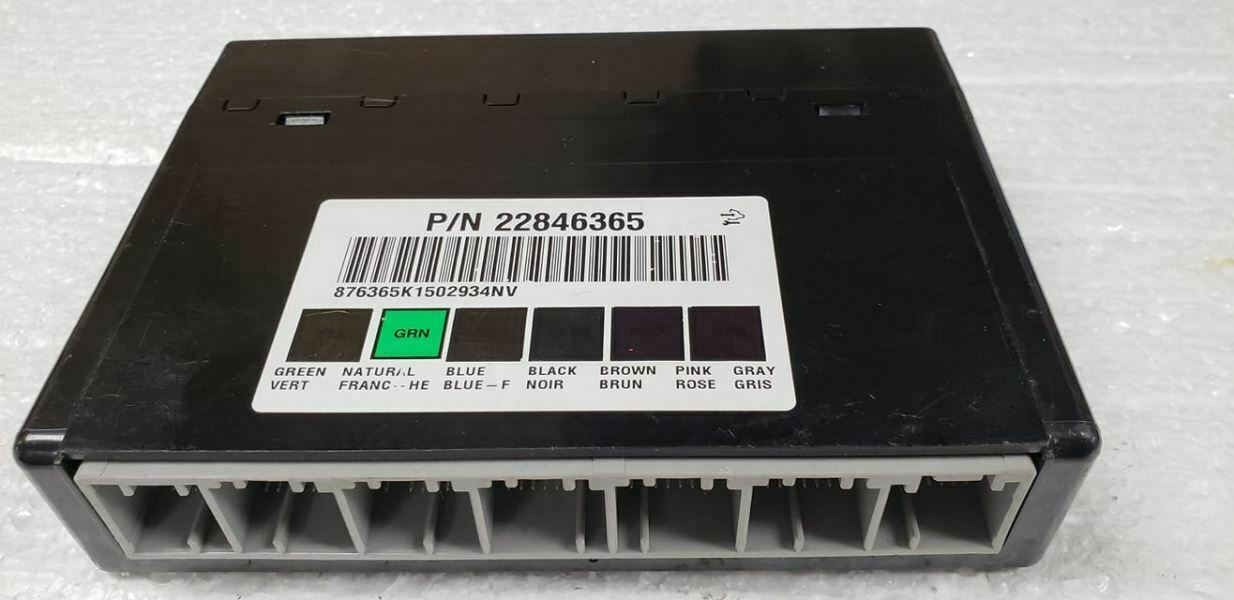

This Body Control Module is a direct-fit replacement for a wide range of GM trucks and SUVs. It is compatible with part numbers 22846365, 22737275, and 22846364. Please verify your vehicle is on the list below for guaranteed compatibility.
- ✔ Cadillac Escalade / ESV / EXT: 2012-2014
- ✔ Chevrolet Avalanche 1500: 2012-2013
- ✔ Chevrolet Silverado 1500 / 2500 / 3500: 2012-2014
- ✔ Chevrolet Suburban 1500 / 2500: 2012-2014
- ✔ Chevrolet Tahoe: 2012-2014
- ✔ GMC Sierra 1500 / 2500 / 3500: 2012-2014
- ✔ GMC Sierra Denali 1500 / 2500 / 3500: 2012-2014
- ✔ GMC Yukon / Yukon XL 1500 / Yukon XL 2500: 2012-2014
Frequently Asked Questions
Do I need to get this BCM programmed by a dealer?
No. We program the module to your vehicle’s VIN before we ship it. It arrives ready for installation, saving you time and money.
What is a VIN and where do I find it?
The VIN is your 17-digit Vehicle Identification Number. You can find it on your driver’s side dashboard (viewable through the windshield), on the driver’s door jamb sticker, or on your vehicle’s registration and insurance documents.
Why is this a better solution than a used BCM from a junkyard?
A used BCM will be programmed to the donor vehicle and will not work correctly in yours without being wiped and reprogrammed by a dealer. Our module comes with the latest software and is matched specifically to your vehicle’s options and VIN.
Is there a core charge for this part?
No, there is no core charge. You can keep your old module without needing to send it back.
What tools are required for the post-installation procedures?
The Airbag System Sync and Brake Pedal Position Relearn procedures require a high-level, bi-directional diagnostic scan tool, like a GM Tech 2 or equivalent professional-grade scanner. Most basic code readers cannot perform these functions.
