Restore Your Vehicle’s Electrical Functions with a VIN-Programmed BCM
Are you dealing with a cascade of bizarre electrical problems in your Cadillac Escalade, Chevy Silverado, or GMC Sierra? One minute the power windows won’t work, the next the radio is acting up, and then the security light refuses to turn off. As a technician with over two decades of experience under the hood, I’ve seen these frustrating symptoms hundreds of time. More often than not, the culprit is a failing Body Control Module (BCM)—the central command center for your vehicle’s body electronics.
This isn’t just an inconvenience; a faulty BCM can compromise your vehicle’s safety and security. This is a direct replacement Body Control Module, part number 22846364, that solves these issues. The best part? We handle the most difficult step for you. Before we ship it, we program the module with the latest GM software updates, matched specifically to your vehicle’s VIN. This eliminates the need for an expensive trip to the dealership for programming, saving you time and hundreds of dollars. You get a part that’s ready for installation right out of the box.
Case Study: The Ghost in the Machine
I remember a 2013 Sierra 2500 that came into my shop. The owner was at his wit’s end. His dome lights would stay on, the driver’s side door lock would cycle randomly, and sometimes the truck wouldn’t start, showing a ‘Service Theft Deterrent System’ message. He’d already replaced the battery and checked all the fuses. After connecting my scan tool, I noticed multiple communication error codes (U-codes) pointing to the BCM. Instead of a clear-cut failure code, it was causing network chaos. We installed a VIN-programmed BCM, and instantly, all the ghostly electrical issues vanished. It’s a perfect example of how this single module can restore order to your vehicle.
Is Your Truck or SUV Showing These Symptoms?
A failing BCM can manifest in numerous ways. If you’re experiencing any of the following, this module is likely the solution you need for your 2012-2014 Escalade BCM or other compatible GM vehicle:
- ✔ Erratic power windows, door locks, or mirrors
- ✔ Interior or exterior lights not working correctly or staying on
- ✔ Horn honking unexpectedly or not working at all
- ✔ Intermittent no-start condition with a security light on the dash
- ✔ False warnings on the instrument cluster (e.g., door ajar)
- ✔ Communication error codes like U0140, U0155, or B1001
- ✔ Air conditioning or climate control system malfunctions
A Straightforward Guide to Your BCM Installation
Replacing your BCM is a manageable job for a confident DIYer. The module is typically located under the driver’s side of the dashboard, near the steering column. Follow these general steps for a successful installation:
- Safety First: Disconnect the negative terminal from your vehicle’s battery and wait a few minutes for the systems to discharge.
- Locate the BCM: Remove the lower dash panel beneath the steering wheel to access the module. It’s a black box with several large electrical connectors.
- Disconnect and Remove: Carefully unplug all wiring harnesses from the old BCM. They have locking tabs that need to be depressed. Once disconnected, unbolt or unclip the old module from its mounting bracket.
- Install the New Module: Mount your new, pre-programmed BCM in the same location. Securely plug in all the electrical connectors, ensuring each one clicks into place.
- Reconnect and Test: Reconnect the negative battery terminal. Turn the key to the ‘On’ position (without starting the engine) and test your lights, locks, windows, and other accessories to confirm they are working correctly.
Important Post-Installation Notes
Because this 2012-2014 Escalade BCM is pre-programmed, most functions will work immediately. However, depending on your specific vehicle, a couple of simple relearn procedures may be required. This is normal and ensures all systems communicate properly.
- ✔ Airbag System Sync: If your airbag warning light is on after installation, a professional scan tool is needed to perform the ‘Setup SDM Primary Key in BCM’ procedure. This syncs the new BCM with the airbag system.
- ✔ Brake Pedal Position Relearn: Some models may require a brake pedal position sensor relearn to ensure proper brake light and traction control operation.
Disclaimer: We always recommend consulting a factory service manual or a qualified technician if you are unsure about any step of the process.
Verified Vehicle Compatibility

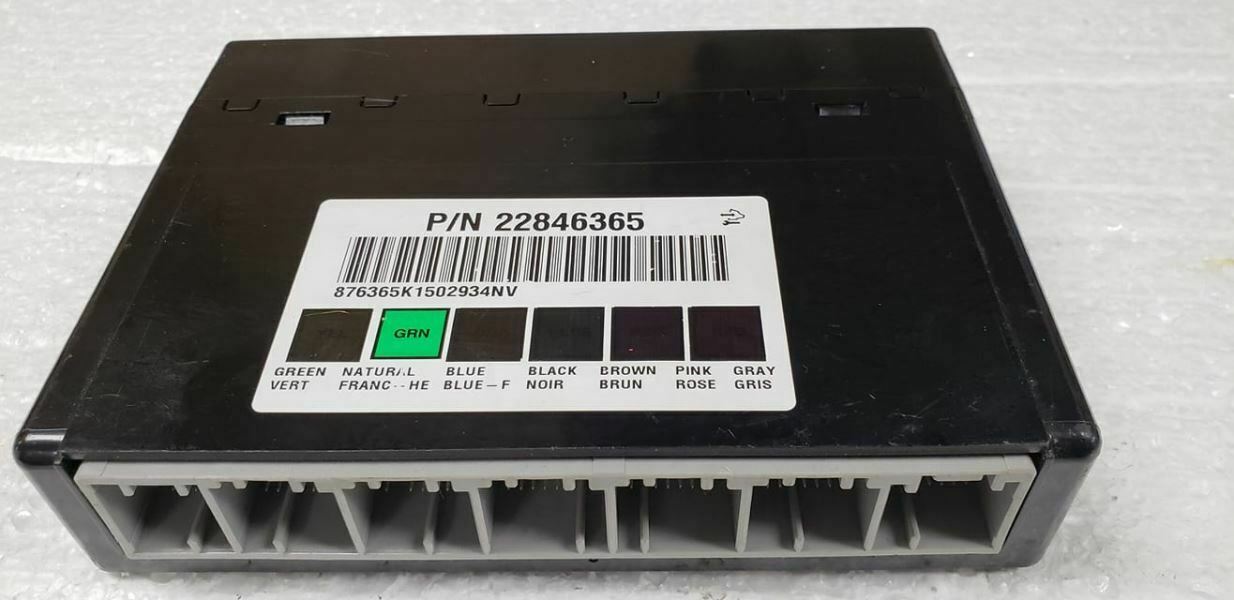

This module is a direct replacement for part numbers 22846364, 22737275, and 22846365. It is guaranteed to fit the following models:
- 2012-2014 Cadillac Escalade, ESV, EXT
- 2012-2013 Chevrolet Avalanche 1500
- 2012-2013 Chevrolet Silverado 1500
- 2012-2014 Chevrolet Silverado 2500/3500
- 2012-2014 Chevrolet Suburban 1500
- 2012-2013 Chevrolet Suburban 2500
- 2012-2014 Chevrolet Tahoe
- 2012-2013 GMC Sierra 1500
- 2012-2014 GMC Sierra 2500/3500
- 2012-2014 GMC Yukon & Yukon XL 1500
- 2012-2013 GMC Yukon XL 2500
Frequently Asked Questions
Do I need to send my old BCM back?
No, there is absolutely no core charge for this part. You can keep your original module.
Is this part difficult to install?
The physical replacement is straightforward for most DIYers with basic tools. It involves removing the lower dash panel and swapping the module. The main benefit of our service is that we handle the complex programming for you.
What information do you need from me?
After you place your order, we will need your 17-digit Vehicle Identification Number (VIN). This is essential for us to program the BCM with the correct software and vehicle-specific options before we ship it.
Will this fix my ‘Service Theft Deterrent System’ message?
In many cases, yes. The BCM is a key part of the anti-theft system. A failing BCM is a very common cause of this warning message and a related no-start condition.
What if my airbag light comes on after installation?
This is a known possibility. It means the new BCM needs to be electronically ‘introduced’ to the airbag module (SDM). A repair shop with a bi-directional scan tool can perform the ‘Setup SDM Primary Key’ procedure in a few minutes to resolve this.
