Are you chasing down frustrating electrical gremlins in your Cadillac Escalade, Chevy Silverado, or GMC Sierra? One minute the power windows work, the next they don’t. Maybe the radio is acting possessed, or you’re seeing bizarre warning lights flash across the dash. As a technician with over two decades of experience, I’ve seen these exact issues hundreds of time, and they almost always point to one culprit: a failing Body Control Module (BCM).
The BCM is the central nervous system for your vehicle’s comfort and convenience features. It controls everything from your interior lights and power locks to the security system and remote start. When it starts to fail, it can create a cascade of seemingly unrelated problems that can be a nightmare to diagnose. This isn’t just an inconvenience; a faulty BCM can affect systems like your brake lights or even prevent your vehicle from starting, leaving you stranded.
Instead of paying for expensive dealership diagnostics and programming fees, we offer a simple, reliable solution. This is a direct-fit replacement 2012-2014 Escalade BCM, which we program to your vehicle’s specific Vehicle Identification Number (VIN) before we ship it. This means it arrives ready for installation, saving you time, money, and the headache of a tow to the dealer. Just provide your VIN at checkout, and we’ll handle the rest, loading it with the latest GM software for optimal performance.
Case Study: A Tricky Diagnosis
I remember a 2013 GMC Yukon Denali that came into my shop. The owner was frustrated because his power running boards would deploy randomly, the dome lights would flicker, and the ‘Service StabiliTrak’ message kept appearing. He’d already replaced the battery and checked all the fuses. After connecting my scan tool, I saw multiple U-codes (communication errors) pointing to the BCM. A new, pre-programmed BCM like this one solved every single one of his issues in under an hour. It’s often the central hub that, when fixed, restores order to the entire vehicle.
Is Your Truck Showing These Symptoms?
A failing BCM can manifest in many ways. If you’re experiencing any of the following, this module is the likely solution:
- ✔ Erratic power window or power lock operation
- ✔ Interior or exterior lights not working correctly (staying on or not turning on)
- ✔ Horn sounding randomly or not working at all
- ✔ Intermittent no-start conditions or security system faults
- ✔ False warnings on the instrument cluster (e.g., “Service Airbag,” “Service StabiliTrak”)
- ✔ Communication-related Diagnostic Trouble Codes (DTCs), such as U0140, U0155, or B1001
- ✔ Air conditioning controls not responding
A Straightforward Guide to BCM Installation
Replacing the BCM is a manageable job for a DIYer with basic tools. It’s typically located under the driver’s side of the dashboard, near the steering column.
- Safety First: Always disconnect the negative terminal from your vehicle’s battery before beginning any electrical work. Wait a few minutes for the system capacitors to discharge.
- Access the Module: Remove the lower dash panel beneath the steering wheel. This usually involves removing a few screws or clips.

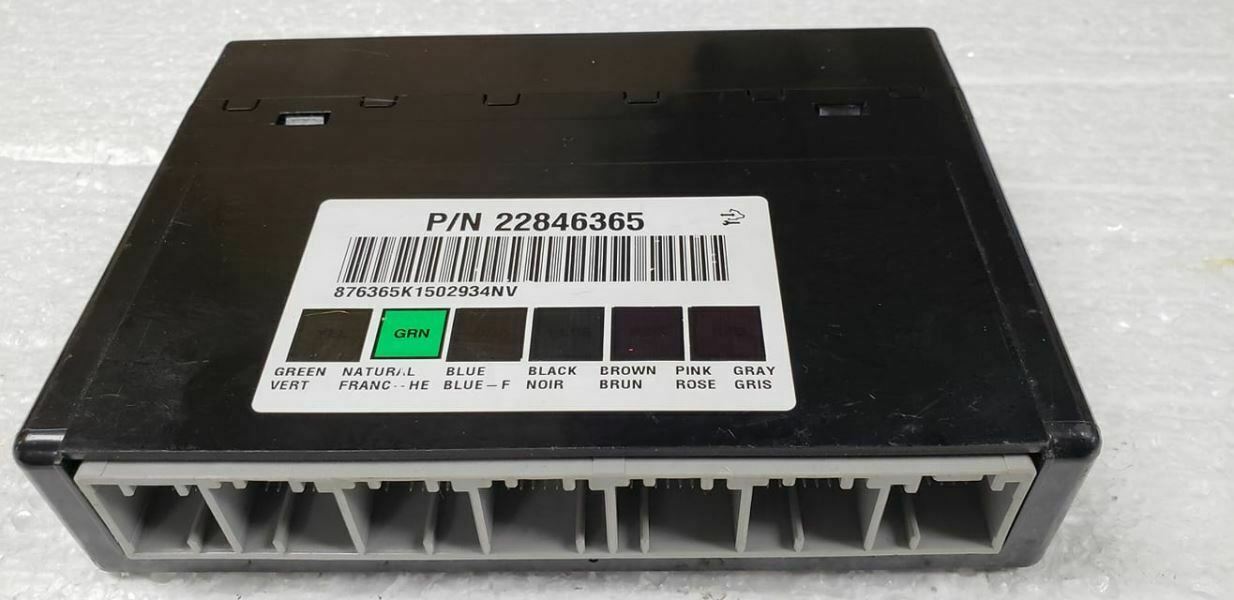

- Locate the BCM: Identify the old BCM. It’s a plastic box with several large multi-pin electrical connectors. Take a picture with your phone so you remember how the connectors are oriented.
- Swap the Modules: Carefully disconnect all electrical connectors. They have locking tabs that need to be depressed. Unbolt or unclip the old BCM from its mounting bracket and set it aside. Mount the new module in its place.
- Reconnect Everything: Firmly plug all the electrical connectors into your new, pre-programmed BCM. Reconnect the negative battery terminal.
- Perform Final Checks: Start the vehicle and test all body functions—windows, locks, lights, radio, etc. Note that some models may require the additional procedures listed below.
Important Post-Installation Steps
Because this BCM is pre-programmed, it simplifies installation dramatically. However, depending on your specific vehicle, a couple of final sync procedures may be needed:
- Airbag System Sync: If the airbag warning light is on after installation, a professional scan tool is needed to perform the ‘Setup SDM Primary Key in BCM’ procedure. This syncs the new BCM with the airbag system.
- Brake Pedal Position Relearn: On some models, a brake pedal position sensor relearn may be required to ensure your brake lights and traction control system function properly.
Verified Vehicle Compatibility
This module is a direct replacement for part numbers 22737275, 22846365, and 22846364. It is guaranteed to fit the following GM trucks and SUVs:
- Cadillac Escalade, ESV, EXT: 2012, 2013, 2014
- Chevrolet Avalanche 1500: 2012, 2013
- Chevrolet Silverado 1500, 2500, 3500: 2012, 2013, 2014
- Chevrolet Suburban 1500, 2500: 2012, 2013, 2014
- Chevrolet Tahoe: 2012, 2013, 2014
- GMC Sierra 1500, 2500, 3500 (including Denali): 2012, 2013, 2014
- GMC Yukon, Yukon XL (including Denali): 2012, 2013, 2014
Frequently Asked Questions
Do I need to send my old BCM back?
No. There is no core charge for this part. You can keep your original module.
How do I provide my VIN for programming?
Simply enter your 17-digit VIN in the provided field during checkout, or send it to us in a message after your purchase. We cannot ship the module until we have your VIN to ensure correct programming.
Is this a difficult part to install myself?
For most DIY enthusiasts with basic hand tools, this is a very manageable installation. The BCM is typically located under the driver’s side dashboard and involves removing a trim panel and swapping electrical connectors.
What tools are needed for the post-installation procedures?
The Airbag System Sync and Brake Pedal Position Relearn procedures require a bi-directional professional diagnostic tool, such as a GM Tech 2, Snap-on, or high-end Autel scanner. Many local repair shops can perform these services for a small fee if they are needed.
Will this fix my ‘Service 4WD’ message?
While the BCM communicates with many systems, a ‘Service 4WD’ message is more commonly related to the Transfer Case Control Module (TCCM), the encoder motor, or a position sensor. It’s best to have the specific codes read to confirm the source of the fault.
