Restore Peak Performance to Your Chevrolet Orlando
Is your 2012-2013 Chevrolet Orlando suffering from frustrating and unpredictable engine problems? A persistent Check Engine Light, rough idling, stalling, or a sudden drop in fuel economy are often tell-tale signs that the vehicle’s brain—the Engine Control Module (ECM)—is failing. When this critical component falters, it can disrupt everything from fuel injection to transmission shifting, making your vehicle unreliable. This isn’t just an inconvenience; it’s a critical failure that needs a dependable solution. We offer a direct-fit, VIN-programmed Engine Control Module that restores your vehicle’s factory-specified operation and gets you back on the road with confidence.
From the Diagnostic Bay: The Phantom Misfire Case
I once had a 2012 Orlando in my shop that was driving the owner crazy. It had a random misfire that no one could pin down. We checked the plugs, coils, and injectors—all were fine. The scan tool showed a P0300 (Random/Multiple Misfire) but no other specific codes. After hours of diagnostics, we monitored the live data stream from the ECM and noticed the injector pulse width commands were erratic on multiple cylinders, but only under certain load conditions. This pointed to an internal processing fault in the ECM. Swapping in a VIN-programmed module like this one solved the issue instantly. It’s a classic example of how a failing ECM can mimic mechanical problems, making proper diagnosis key.
The Smarter, Simpler Solution
Forget expensive dealership visits and the hassle of coordinating programming. Our process is designed for both professional technicians and savvy DIYers. When you purchase this 2012-2013 Orlando Engine Control Module, you simply provide us with your vehicle’s VIN. Our certified technicians will then flash the module with the latest, most stable GM-approved software specific to your exact vehicle. This ensures seamless communication with all other onboard systems, right out of the box. You receive a part that is not only a replacement but is loaded with the most current software to optimize performance and efficiency.
Common Signs of a Failing Engine Control Module
If you’re experiencing any of the following, a faulty ECM could be the culprit. I’ve seen these symptoms in my bay hundreds of times, often accompanied by specific diagnostic trouble codes (DTCs).
- ✔ Check Engine Light is illuminated, often with codes like P0601 (Internal Control Module Memory Check Sum Error), P0606 (ECM/PCM Processor Fault), or U0100 (Lost Communication With ECM/PCM).
- ✔ Engine stalling, stuttering, or hesitating during acceleration.
- ✔ Noticeable decrease in fuel efficiency.
- ✔ Car won’t start, or has difficulty starting, even with a good battery and starter.
- ✔ Poor or erratic automatic transmission shifting.
- ✔ Misfires or rough running conditions that aren’t resolved by replacing spark plugs or coils.
Your Straightforward ECM Installation Guide
Installing your new 2012-2013 Orlando Engine Control Module is a manageable job for someone with basic mechanical skills. Following these steps will ensure a smooth process.
- Safety First: Always disconnect the negative terminal from your vehicle’s battery and wait at least 10 minutes to allow the system to fully discharge.

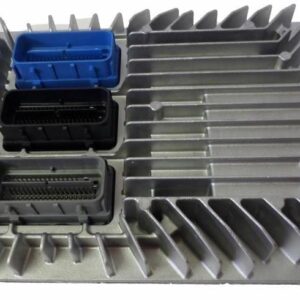

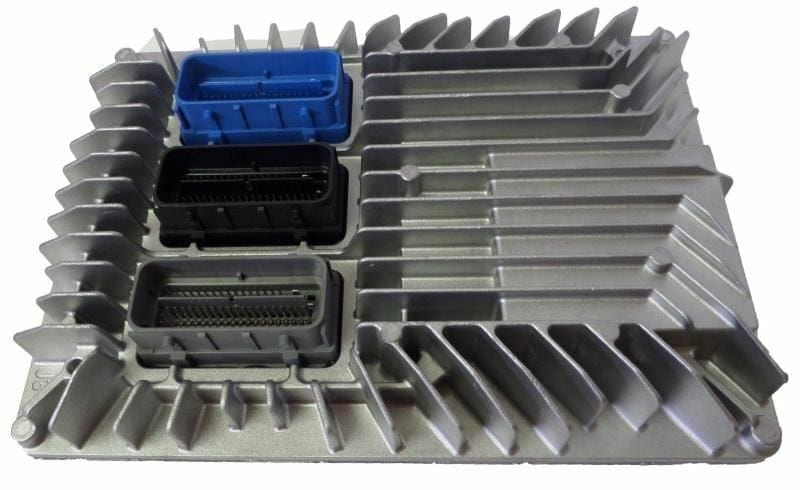

- Locate the ECM: On the 2012-2013 Orlando, the ECM is typically found in the left-hand (driver’s side) of the engine compartment. It’s a silver metal box with large electrical connectors.
- Disconnect the Wiring Harnesses: Carefully release the locking tabs on the electrical connectors and pull them straight off the module. Never force them; inspect the clips to see how they release.
- Remove the Old Module: Unbolt the mounting hardware that secures the old ECM to its bracket. Keep the hardware, as you may need it for the new module.
- Install the New Module: Mount your new, pre-programmed ECM in place and secure it with the original hardware.
- Reconnect Everything: Firmly plug the wiring harnesses back into the new ECM until they click into place. Reconnect the negative battery terminal.
- Final Steps: In some cases, a security or anti-theft relearn procedure may be required. This can often be done without special tools by cycling the key. Consult your vehicle’s service information for specific steps if needed.
Verified Fitment For These GM Vehicles
This module, when programmed for the specific vehicle, is compatible with a wide range of GM models and part numbers. Please ensure your vehicle and original part ID are listed below. Providing your VIN is mandatory to guarantee correct programming and compatibility.
Replaces Part Numbers: 12616889, 12630908, 12637106, 12642665, 12650256, 12651993
- ✔ Chevrolet Orlando (2012-2013)
- ✔ Chevrolet Impala (2012)
- ✔ Chevrolet Captiva Sport (2012)
- ✔ Chevrolet Camaro (2012)
- ✔ Chevrolet Equinox (2010-2011)
- ✔ Buick Allure (2010)
- ✔ Buick LaCrosse (2010-2011)
- ✔ Buick Regal (2011)
- ✔ Cadillac CTS (2010-2012)
- ✔ Cadillac SRX (2010-2011)
- ✔ GMC Terrain (2010-2011)
- ✔ Saab 9-5 (2010-2011)
Do I need to get this module programmed by a dealer?
Do I need to get this module programmed by a dealer?
No. The main benefit of our service is that we program the module for you before shipping. Simply provide your VIN during checkout, and it will arrive ready for installation, loaded with the latest GM software for your specific vehicle.
Is this a plug-and-play part?
Yes, for most vehicles, this is a plug-and-play installation. After installing the module, you may need to perform a simple key-cycle security relearn procedure, which does not require special tools. We recommend checking your vehicle’s service manual for any specific post-installation steps.
How do I find my original part number?
The part number is printed on a sticker on the case of your current ECM. You can compare it to the list of compatible part numbers in our description. However, the most important step is providing your VIN, as this allows us to ensure 100% correct programming regardless of the part number.
Will this fix my Check Engine Light?
If the Check Engine Light is on due to an internal ECM failure (like codes P0601, P0606, etc.), then this replacement module will resolve the issue. It’s crucial to properly diagnose the problem first, as the light can be triggered by many other failing sensors or components.
