Restore Peak Performance to Your Vehicle’s Powertrain
Is your 2011 Holden Caprice or other compatible GM vehicle suffering from frustrating issues like a no-start condition, erratic engine behavior, or a persistent Check Engine Light? The Engine Control Module (ECM), often called the Powertrain Control Module (PCM), is the central computer of your vehicle. When it fails, it can cause a wide range of problems that can leave you stranded. This isn’t just an inconvenience; it’s a critical failure that compromises your vehicle’s reliability and performance. We offer a dependable, straightforward solution to get you back on the road with confidence.

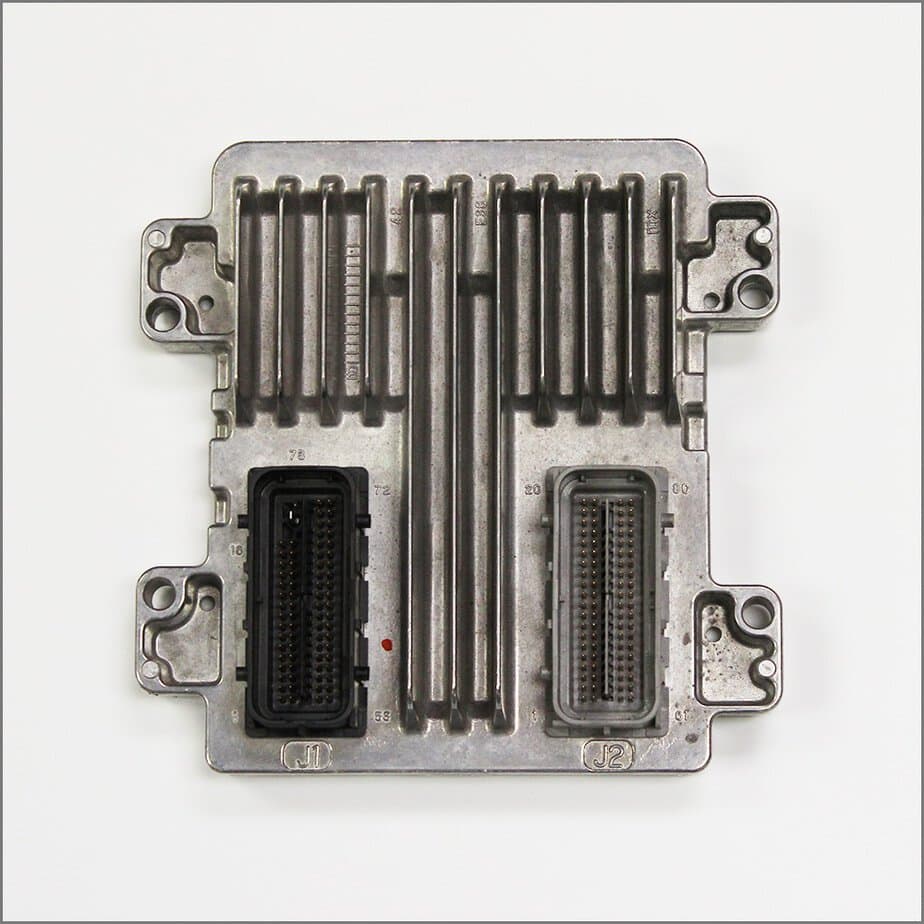

This is a direct-fit replacement 2011 Caprice Engine Control Module that arrives at your door fully programmed to your specific vehicle. We take the guesswork and high dealership costs out of the equation. Simply provide us with your vehicle’s 17-digit VIN (Vehicle Identification Number) during checkout, and our technicians will flash the module with the latest, most stable software updates from General Motors. This ensures seamless integration with your car’s systems, from the transmission to the fuel injectors, for optimal efficiency and power delivery.
Case Study: A Tricky Diagnosis
I remember a 2008 Sierra 2500 that came into the shop with an intermittent no-crank, no-start issue. The owner had already replaced the battery and starter. We scanned it and found a U0100 ‘Lost Communication with ECM/PCM’ code, but it was intermittent. After checking all power and ground circuits to the ECM connector—which all tested fine—we suspected an internal module failure. The thermal stress under the hood, especially on these work trucks, can cause microscopic cracks in the circuit board over time. We installed a VIN-programmed module just like this one, and the truck fired up on the first try and never had the issue again. It’s a classic example of how a failing ECM can mimic other problems.
Is Your Vehicle Showing These Symptoms?
A failing ECM can manifest in many ways. If you’re experiencing any of the following, a faulty module could be the culprit. Confirming your diagnosis is key, but these are strong indicators:
- ✔ Check Engine Light is illuminated with communication codes (e.g., U0100) or internal processor fault codes (e.g., P0601, P0606).
- ✔ Engine will not start or is very difficult to start.
- ✔ Stalling, stumbling, or rough idling for no apparent reason.
- ✔ Noticeable decrease in fuel economy.
- ✔ Poor engine performance and lack of acceleration.
- ✔ Transmission shifting issues or harsh engagement.
- ✔ The cooling fans run constantly or not at all.
A Straightforward Guide to Installation
With our pre-programmed service, installing your new 2011 Caprice Engine Control Module is a job most DIY mechanics can handle. Since the programming is done, no special scan tools are required for the initial setup.
- Safety First: Always disconnect the negative terminal from your vehicle’s battery and wait at least 15 minutes to allow all systems to power down completely.
- Locate the Module: On the 2011 Caprice, the ECM is typically found on the driver’s side of the engine compartment. For other models, refer to the fitment list below for its general location (e.g., under the battery, on the firewall).
- Disconnect Connectors: Carefully release the locking tabs on the electrical harness connectors and pull them straight out from the module. Avoid pulling on the wires themselves.
- Remove the Old Module: Unbolt the old ECM from its mounting bracket. Keep the hardware, as you will need it for the new module.
- Install the New Module: Mount the new module securely onto the bracket and tighten the bolts.
- Reconnect Everything: Firmly plug the electrical connectors into the new ECM until they click into place. Reconnect the negative battery terminal.
- Final Steps: Your vehicle may require a security relearn procedure, which can typically be done by cycling the key. In most cases, the vehicle will start and run correctly immediately.
Verified Vehicle Compatibility
This module, identified by part numbers 12622141, 12612384, or 12617568, is a direct replacement for a wide range of GM vehicles. Please verify your original part number and vehicle details against this list:
- Caprice: 2011 (Electronic Control Module; ID 12612384)
- Avalanche 1500: 2008 (Electronic Control Module; LH front under battery)
- Aura: 2008 (Electronic Control Module; RH firewall, 3.5L)
- Corvette: 2008-2009 (Electronic Control Module; RH engine compartment)
- CTS: 2008 (Electronic Control Module; RH front engine compartment, 3.6L, VIN 7, ID 12612384)
- Equinox / Torrent: 2008-2009 (Electronic Control Module; LH engine compartment, 3.4L)
- Express / Savana Vans (1500, 2500, 3500): 2008 (Gasoline engines)
- G6: 2008 (Electronic Control Module; LH front engine compartment, 3.5L or 3.9L)
- Hummer H2: 2008 (Electronic Control Module; LH front under battery)
- Impala: 2008 (Electronic Control Module; lower part of air cleaner box, 3.5L or 3.9L)
- Malibu: 2008 (Classic & New Styles, 3.5L)
- Silverado / Sierra (1500, 2500, 3500): 2008 (Gasoline engines)
- Suburban / Yukon XL (1500, 2500): 2008 (w/o hybrid)
- Tahoe / Yukon: 2008 (w/o hybrid)
- Vue: 2008-2009 (Electronic Control Module; 3.5L)
Frequently Asked Questions
Do I need to get this module programmed?
No. This module comes fully programmed to your vehicle’s VIN before we ship it. It is ready for installation right out of the box, saving you a trip to the dealership.
Where do I find my VIN?
Your 17-digit Vehicle Identification Number (VIN) can be found on your vehicle’s registration, insurance card, or on a metal plate on the driver’s side of the dashboard, visible through the windshield.
How do I know if this part number is correct?
The best way is to check the part number on your original ECM. This module is a direct replacement for part numbers 12622141, 12612384, and 12617568. If your part number matches, it’s the correct part.
Will this fix my check engine light?
If the check engine light is caused by a faulty ECM (e.g., codes P0601, U0100), then yes, this part will resolve the issue and the light. However, if the light is on for another reason, like a bad oxygen sensor, that issue will still need to be addressed separately.
What is the difference between an ECM and a PCM?
The terms are often used interchangeably. ECM (Engine Control Module) and PCM (Powertrain Control Module) both refer to the vehicle’s main computer. PCM is technically more accurate on modern vehicles as it controls both the engine and the transmission functions.
