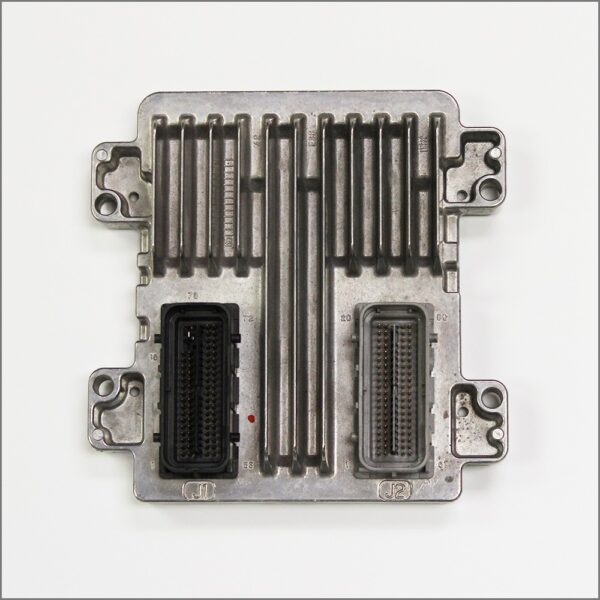

If your GM truck or SUV is suddenly plagued by frustrating issues like stalling, erratic shifting, a persistent check engine light, or even a complete no-start condition, the problem often points directly to a failing Engine Control Module (ECM). As the central computer for your vehicle, a faulty ECM can wreak havoc on performance and reliability. This isn’t just an inconvenience; it’s a critical failure that needs a dependable solution. We offer a direct-fit, reliable replacement ECM, part number 12633055, that gets you back on the road without the exorbitant costs and delays of a dealership visit.
The biggest hurdle in replacing an ECM has always been the programming. A blank module from the parts store is just a paperweight until it’s coded to your specific vehicle. Our process eliminates that step entirely. When you purchase from us, we’ll ask for your Vehicle Identification Number (VIN). Our certified technicians will then flash the module with the very latest, most stable software directly from GM, ensuring it’s a perfect match for your vehicle’s engine, transmission, and factory options. This isn’t a generic file; it’s the precise calibration your vehicle needs to run at its best.
From the Diagnostic Bay: The Ghost in the Machine
I once had a 2011 Silverado 1500 in the shop with a maddeningly intermittent stalling problem. The owner had already replaced the fuel pump and a few sensors with no luck. The truck would run fine for days, then die at a stoplight without warning and throw a dozen communication codes (U-codes). After hours of tracing wires, we hooked up a scope to the ECM’s power and ground feeds. We saw a clean signal right up until the moment it stalled, when the processor’s internal voltage would just drop off a cliff. It was a classic case of a failing 2010 Sierra Denali ECM (the same family of modules). We ordered one of these pre-programmed units, swapped it in 15 minutes, and the truck has run flawlessly ever since. It saved the customer hundreds in diagnostic time and dealership programming fees.
Is Your Truck Showing These Telltale Signs?
A failing ECM can manifest in numerous ways. If you’re experiencing any of the following, this module is the likely solution.
- âś” Unexplained Check Engine Light (CEL)
- âś” Stalling or cutting out while driving
- âś” Rough or unstable idle
- âś” Poor fuel economy
- âś” Engine misfires
- âś” Failure to communicate with a scan tool
- âś” Common Diagnostic Trouble Codes (DTCs) like P0601 (Internal Memory Checksum Error), P0606 (ECM/PCM Processor Fault), or U0100 (Lost Communication With ECM/PCM)
A Straightforward Guide to Your ECM Swap
Installing your pre-programmed ECM is a job most DIYers can handle with basic tools. While specific locations vary slightly, the process is generally the same for most trucks and SUVs.
- Safety First: Disconnect the negative terminal from your vehicle’s battery and secure it away from the post.
- Locate the ECM: On most Sierra, Silverado, and SUV models, the ECM is located in the engine bay on the driver’s side, near the fender or firewall. On Express/Savana vans, it’s typically on the LH rear of the engine compartment.
- Disconnect the Connectors: Carefully release the locking tabs on the wiring harness connectors and pull them straight out from the module. Avoid pulling on the wires themselves.
- Remove the Old Module: Unbolt the old ECM from its mounting bracket. There are typically two or three bolts holding it in place.
- Install the New Module: Mount your new, pre-programmed ECM onto the bracket and secure the bolts.
- Reconnect Everything: Firmly plug the wiring harnesses back into the new ECM until they click into place. Reconnect your battery terminal.
- Final Steps: Some vehicles may require a security relearn procedure, which can often be done without a scan tool by cycling the key. Instructions are readily available online for your specific model. Your vehicle is now ready to start.
Verified Vehicle Compatibility List
This module, part number 12633055 (also replaces 12633238), is a direct fit for a wide range of General Motors vehicles. Please verify your model and options below. Providing your VIN at checkout is the best way to guarantee a perfect match.
CAPRICE 11-17 (6.0L)
CORVETTE 10-13 (6.2L, 7.0L)
SS CAPRICE 14-17
AVALANCHE 1500 10-13
ESCALADE / ESV / EXT 10-14
EXPRESS / SAVANA VANS 10-15 (4.8L, 5.3L, 6.0L)
SIERRA / SILVERADO 1500 10-13 (4.8L, 5.3L, 6.2L)
SIERRA / SILVERADO 2500/3500 10 (6.0L)
SIERRA DENALI 10
SIERRA DENALI 1500 11-13
SUBURBAN 1500 / 2500 10-14
TAHOE 10-14 (w/o hybrid)
YUKON / YUKON XL 1500 / 2500 10-14 (w/o hybrid)
Frequently Asked Questions
Frequently Asked Questions
Why do you need my VIN?
Your VIN is essential. It allows our technicians to access the correct GM software for your vehicle’s specific engine, transmission, and options. This ensures perfect compatibility and function, just like a new module from the factory.
Is this a simple plug-and-play installation?
Yes, for the most part. Because we program the module to your VIN before shipping, it arrives ready to be installed. In some cases, a simple ‘security relearn’ or ‘theft deterrent’ procedure is needed, which typically involves cycling the ignition key and can be done in your driveway in minutes.
Will this fix my check engine light?
If the check engine light is caused by an internal failure of the original ECM (like codes P0601 or P0606), then yes, this new module will resolve the issue. It’s always best to have the codes read to confirm the diagnosis before ordering.
What if I have the part number 12633238?
This ECM, part number 12633055, is a direct, interchangeable replacement for part number 12633238. It will function identically once programmed for your vehicle.
Do I need any special tools to install this?
No. Basic hand tools like a socket set are all that’s required to physically swap the module. No special programming tools are needed on your end.
