Restore Your Camaro’s Electrical System with a Plug-and-Play BCM
Is your 2010 Chevy Camaro suffering from bizarre electrical problems? Flickering lights, windows that won’t cooperate, or a security system that randomly prevents the car from starting are classic signs of a failing Body Control Module (BCM). As a technician with over two decades of experience, I’ve seen how a faulty BCM can turn a reliable vehicle into a source of constant frustration. It’s the central command center for your car’s body electronics, and when it goes, chaos ensues. This isn’t just an inconvenience; it can be a serious safety issue. Our professional programming service for this 2010 Camaro BCM is the most reliable and straightforward solution to get your car back to 100%.
Forget the hassle and high costs of a dealership visit. They’ll sell you a blank module and then charge a hefty fee for programming. We simplify the entire process. You send us your original BCM, and we transfer all the critical vehicle-specific data—like VIN, mileage, and key information—to this replacement unit. The module you receive back is ready for installation, with no further programming required. It’s a true plug-and-play fix that restores function and peace of mind.
A Technician’s Notebook: The Ghost in the Machine
I remember a 2010 Camaro that came into the shop with a list of symptoms that sounded like a poltergeist was at work. The radio would switch off, the dome light would stay on, and the driver’s power window had a mind of its own. The owner had already replaced the battery and checked fuses, but the gremlins persisted. A deep scan showed multiple communication loss codes (U-codes) pointing to the BCM. After confirming power and ground to the module were solid, we knew the BCM itself was the culprit. Instead of a costly dealer replacement, we used a cloned module just like this one. The installation took less than an hour, and instantly, every single electrical issue was resolved. It’s a perfect example of how the right part, correctly programmed, can be a simple fix for a very complex-seeming problem.
Common Signs of a Failing 2010 Camaro BCM
- ✔ Power windows, door locks, or mirrors operating erratically or not at all.
- ✔ Interior or exterior lights flickering, staying on, or not turning on.
- ✔ The anti-theft system engaging randomly, causing a no-start condition.
- ✔ Horn honking unexpectedly or not working when pressed.
- ✔ Warning lights on the dashboard for systems controlled by the BCM.
- ✔ Diagnostic trouble codes (DTCs) related to communication loss, such as U0140, U0155, or other U-series codes.
Your Straightforward Installation Guide
- ✔ Step 1: Disconnect Power. Always begin by disconnecting the negative terminal from your vehicle’s battery to prevent any electrical shorts.
- ✔ Step 2: Locate the BCM. In the 2010 Camaro, the Body Control Module is located behind the dashboard on the passenger’s side (RH dash). You may need to remove the glove box or a lower dash panel for access.
- ✔ Step 3: Remove the Old Module. Carefully disconnect the electrical connectors from the original BCM. Note their orientation. Then, unbolt the module from its mounting bracket.
- ✔ Step 4: Install the Replacement. Mount your new, pre-programmed BCM in the same location and securely reconnect all electrical connectors.
- ✔ Step 5: Reconnect and Test. Reconnect the negative battery terminal. Start the vehicle and test all body functions—windows, locks, lights, horn, and wipers—to confirm the repair was successful.
Important Post-Installation Information
While our programming service makes this a plug-and-play repair, some GM vehicles may require a simple relearn procedure after installation:
- Airbag System Sync: If the airbag warning light is illuminated after installation, a ‘Setup SDM Primary Key in BCM’ procedure must be performed using a compatible professional scan tool. This syncs the new BCM with the airbag system.
- Brake Pedal Position Relearn: On some models, a brake pedal position sensor recalibration may be needed to ensure correct brake light operation and to prevent issues with the traction control system.
Disclaimer: Vehicle systems can vary. We always recommend consulting a factory service manual or a certified technician if you are unsure about any step.
Verified Fitment for These GM Models

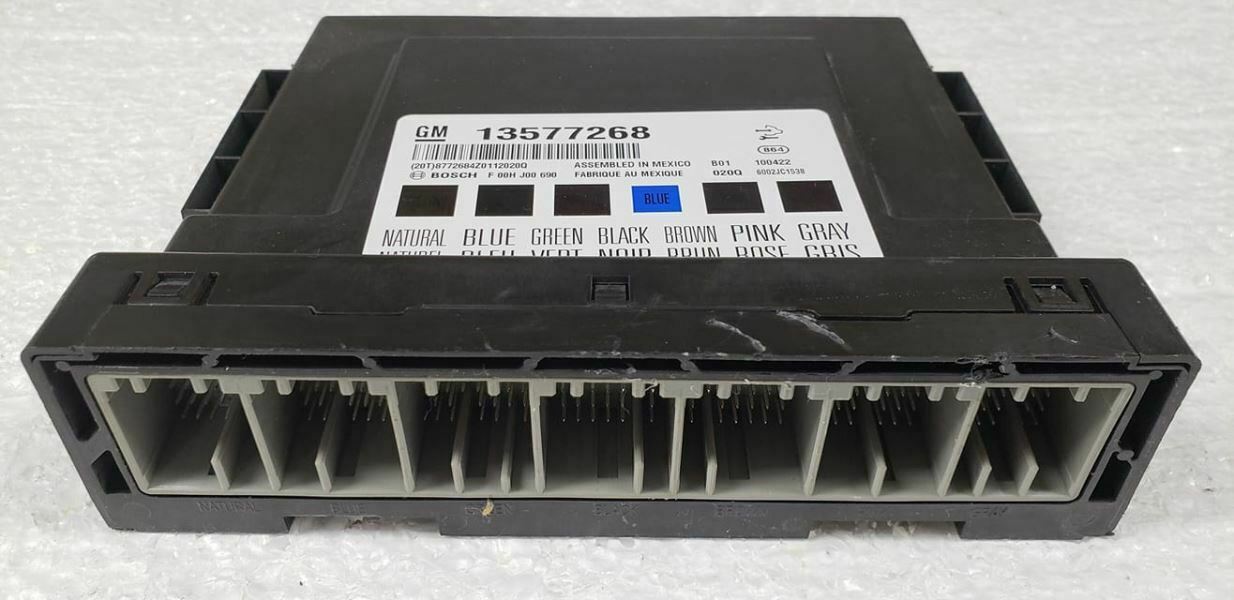

This Body Control Module is a direct replacement for part numbers 13577268, 13500385, and 13578421. It is guaranteed to fit the following vehicles:
- 2010 Chevrolet Camaro (Body Control Module located at RH dash)
- 2010 Buick LaCrosse (Body Control Module located at LH kick panel)
- 2010 Buick Allure (Body Control Module located at LH kick panel)
Frequently Asked Questions
How does the programming service work?
After you place your order, we will contact you with instructions to ship your original BCM to us. Once we receive it, we transfer all of your vehicle’s specific data to the replacement module. We then ship the programmed module back to you, ready for installation.
Do I need to get this programmed by a dealer?
No. Our service completely eliminates the need for dealer programming. The module you receive will be pre-programmed with your car’s data, making it a plug-and-play solution.
Is there a core charge?
No, there is no core charge for this part. We only need your original module to perform the data transfer service. You can keep your old module after the service is complete.
What if my airbag light comes on after installation?
This is a known possibility. It simply means the new BCM needs to be electronically introduced to the airbag module (SDM). This requires a ‘Setup SDM Primary Key in BCM’ procedure with a professional scan tool to turn off the light.
How long does the whole process take?
We typically program and ship the replacement module within 24-48 hours of receiving your original BCM. Total turnaround time will depend on shipping times to and from our facility. We will provide you with a tracking number as soon as it ships.
