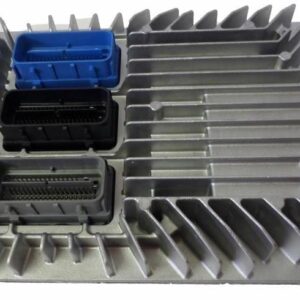

Restore Peak Performance to Your Cadillac with a VIN-Programmed ECM
Is your 2010-2012 Cadillac CTS suffering from frustrating, hard-to-diagnose issues? A failing Engine Control Module (ECM), the vehicle’s central computer, is often the culprit behind problems like erratic idling, poor fuel economy, stalling, or a persistent Check Engine Light. In my 20+ years of experience, I’ve seen countless drivers chase expensive sensor replacements when the root cause was the ECM itself. This module is the definitive, reliable solution to restore your vehicle’s factory performance and drivability.
This isn’t just a replacement part; it’s a complete, ready-to-install solution. We take the guesswork and dealership hassle out of the equation. Upon purchase, simply provide your vehicle’s VIN, and our technicians will flash this 2010-2012 CTS Engine Control Module with the latest, most stable GM-certified software specific to your car. This ensures perfect communication between all vehicle systems, from the engine and transmission to the fuel and ignition components, resolving deep-seated electronic issues that generic modules can’t fix.
From the Diagnostic Bay: The Ghost in the Machine
A customer brought in a 2011 CTS with a maddening intermittent no-start condition. No codes, no clear pattern. One day it would start fine, the next it was completely dead. After checking all the usual suspects—battery, starter, fuel pump—we hooked up a scope to the ECM’s power and ground circuits. We discovered a tiny, erratic voltage drop inside the module itself, but only when it was warm. The internal processor was failing under heat soak. We swapped in a VIN-programmed ECM like this one, and the problem vanished instantly. It saved the customer from what could have been weeks of frustrating, inconclusive diagnostics.
Is Your Cadillac Showing These ECM Failure Signs?
- âś” Unexplained Check Engine Light with codes like P0601 (Internal Control Module Memory Check Sum Error) or P0606 (ECM/PCM Processor Fault).
- âś” Engine stalling, stumbling, or hesitating for no apparent reason.
- âś” A complete no-start condition where the engine cranks but won’t fire up.
- âś” Noticeable decrease in fuel efficiency.
- âś” Poor or erratic automatic transmission shifting.
- âś” Communication loss codes (U-codes) with other modules on the vehicle.
- âś” Inconsistent performance that seems to change with engine temperature.
A Straightforward Guide to Installation
Installing your pre-programmed 2010-2012 CTS Engine Control Module is a manageable job for a confident DIYer. Taking your time and following these steps will ensure a smooth process.
- Safety First: Always disconnect the negative terminal from your vehicle’s battery and wait 10-15 minutes for all system capacitors to discharge.
- Locate the ECM: On the 2010-2012 Cadillac CTS, the ECM is typically found in the engine compartment on the right-hand (passenger) side. Refer to your owner’s manual for the exact location.
- Disconnect Connectors: Carefully release the locking tabs on the wiring harness connectors and pull them straight out from the module. Never force them. Inspect the pins for any corrosion or damage.
- Remove the Old Module: Unbolt the old ECM from its mounting bracket. Keep the hardware, as you may need to reuse it.
- Install the New Module: Mount your new, pre-programmed ECM securely onto the bracket.
- Reconnect Everything: Firmly plug the wiring harnesses back into the new module until they click into place. Reconnect the negative battery terminal.
- Perform Relearn (If Necessary): While this module is programmed to your VIN, some vehicles may require a security or crank-position sensor relearn procedure. This can often be done without special tools (check vehicle-specific forums) or by any professional mechanic.
Verified Vehicle Compatibility
This module, part number 12651993, is a direct replacement for a wide range of GM vehicles and interchanges with part numbers 12616889, 12630908, 12637106, 12642665, and 12650256. While this is a primary fit for the 2010-2012 CTS Engine Control Module, please verify your specific part number or consult the list below:
CADILLAC SRX 2010-2011 (3.0L)
BUICK ALLURE 2010 (2.4L & 3.0L)
BUICK LACROSSE 2010-2011 (2.4L & 3.0L)
BUICK REGAL 2011
CHEVROLET CAMARO 2012 (3.6L)
CHEVROLET CAPTIVA SPORT 2012
CHEVROLET EQUINOX 2010-2011
CHEVROLET IMPALA 2012
CHEVROLET ORLANDO 2012-2013
GMC TERRAIN 2010-2011
SAAB 9-5 2010-2011 (2.0L)
Is this ECM truly plug-and-play?
Is this ECM truly plug-and-play?
Yes, for the vast majority of vehicles. We program it to your VIN, which handles most of the setup. In some rare cases, a security relearn or crank variation relearn may be needed, which is a simple procedure that can be done with a capable scan tool or by following specific vehicle instructions.
What information do you need from me?
After you complete your purchase, we will need the 17-digit Vehicle Identification Number (VIN) from your car. This is usually found on the driver’s side dashboard (visible through the windshield) or on the door jamb sticker.
Will this fix my specific problem?
This module will fix any issue directly caused by a faulty ECM. While the symptoms we’ve listed are common indicators, we always recommend a proper diagnosis by a qualified mechanic to confirm the ECM is the point of failure before purchasing.
Does this part have a warranty?
Yes, all our modules come with a warranty. Please see the warranty tab on this listing for complete details and duration.
What does ‘flashed’ or ‘programmed’ mean?
It means we load the module with your vehicle’s specific software using your VIN. This ensures the ECM knows your car’s engine size, transmission type, and other options, allowing it to function correctly right out of the box without a trip to the dealer for expensive programming.
