Is Your GM SUV or Sedan Running Rough?
If you’re dealing with a frustrating no-start condition, a persistent check engine light, or erratic engine behavior in your 2009 GMC Acadia or other compatible GM vehicle, a failing Engine Control Module (ECM) is a very likely culprit. As the brain of your engine, when the ECM falters, it can cause a cascade of confusing and costly problems. This isn’t just an inconvenience; it’s a critical component failure that impacts your vehicle’s performance, fuel economy, and reliability.
Case Study: The Misleading Misfire
I remember a 2009 Buick Enclave that came into my shop. The owner had already spent a small fortune replacing spark plugs, ignition coils, and even a fuel injector trying to chase down a random misfire (P0300) and a communication error code (U0100). The engine would run fine for a while, then suddenly stumble. After checking all the wiring and confirming the previous repairs were done correctly, my diagnostic process led me to the ECM. Located right behind the fan shroud, these modules are subjected to constant heat cycles. Over years of service, this thermal stress can cause internal solder joints to crack, leading to intermittent failures that are maddening to diagnose. We installed a VIN-programmed module just like this one, and the Enclave ran perfectly. It’s a classic example of why you need to look at the central controller when all the individual components check out.
Why Choose a Pre-Programmed Module?

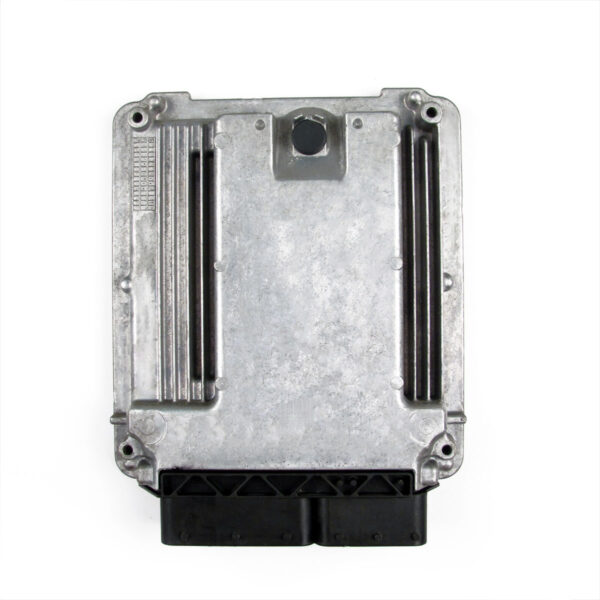

This isn’t just a replacement part; it’s a complete solution. We take a genuine GM Engine Control Module and flash it with the latest, most stable software updates directly from General Motors. By providing us with your vehicle’s VIN, you receive a 2009 Acadia Engine Control Module that is precisely matched to your vehicle’s specific configuration. This eliminates the need for an expensive trip to the dealership for programming, saving you time and hundreds of dollars. It’s designed to restore the original performance and efficiency your vehicle had when it left the factory.
Common Signs of a Failing ECM
If your vehicle is experiencing any of the following, a faulty ECM could be the root cause. Don’t keep throwing parts at the problem—address the source.
- âś” Check Engine Light is on with codes like P0601 (Internal Control Module Memory Check Sum Error) or P0606 (ECM/PCM Processor Fault).
- âś” Engine cranks but refuses to start.
- âś” Unexplained drops in fuel economy.
- âś” The engine stalls, stumbles, or misfires intermittently.
- âś” Automatic transmission shifts harshly or at the wrong times.
- âś” Loss of communication with other vehicle modules (indicated by a ‘U’ code).
A Straightforward Guide to Installation
Installing your new 2009 Acadia Engine Control Module is a manageable job for a DIYer with basic tools. Follow these steps carefully.
- Safety First: Always disconnect the negative terminal from your vehicle’s battery before starting any electrical work.
- Locate the ECM: On the Acadia, Traverse, Enclave, and Outlook, the ECM is typically mounted on the driver’s side, behind the radiator fan shroud. On the CTS and STS, it’s usually in the right-hand (passenger side) front of the engine compartment.
- Disconnect and Remove: Carefully unplug the electrical connectors. There are usually locking tabs that need to be released. Once disconnected, unbolt the module from its mounting bracket and remove it from the vehicle.
- Install the New Module: Mount your new, pre-programmed ECM in the same location and secure the bolts. Reconnect the electrical harnesses, ensuring they click securely into place.
- Reconnect Battery: Re-attach the negative battery terminal and tighten it.
- Perform Security Relearn: This is a critical final step. You will need to perform a simple security relearn procedure (often called a “key-on” relearn) so the vehicle recognizes the new ECM. This procedure typically takes about 30 minutes and does not require special tools. Instructions are readily available online for your specific model.
Verified Vehicle Compatibility
This module is a direct-fit replacement for several GM vehicles and is compatible with part numbers 12623325, 12628387, 12605672, 12630594, and 19300016. Please confirm your vehicle is on this list:
ACADIA 2009 – Electronic Control Module; (behind fan shroud)
ENCLAVE 2009 – Electronic Control Module; (behind fan shroud)
OUTLOOK 2009 – Electronic Control Module; (behind fan shroud)
TRAVERSE 2009 – Electronic Control Module; (behind fan shroud)
CTS 2008-2009 – Electronic Control Module; (RH front engine compartment), 3.6L, VIN V (8th digit)
STS 2008-2009 – Electronic Control Module; (RH engine), 3.6L
Frequently Asked Questions
Do I need to get this module programmed by a dealer?
No. We program the module to your vehicle’s specific VIN before we ship it. This means it’s ready for installation right out of the box, though you will need to perform a simple security relearn procedure.
What is a VIN and where do I find it?
The VIN is your 17-digit Vehicle Identification Number. It’s a unique code for your specific car. You can find it on your vehicle’s registration, insurance card, or on the driver’s side of the dashboard, visible through the windshield.
What if my original part number isn’t 12628387?
This module is a direct replacement for several part numbers, including 12623325, 12605672, 12630594, and 19300016. As long as your vehicle and engine match our compatibility list, this module will function correctly.
Will this fix my check engine light?
If the check engine light is caused by an internal failure of the original ECM (like codes P0601, P0606, etc.), then yes, this part is the correct fix. However, if the light is on for another reason (e.g., a bad oxygen sensor), you will still need to repair that separate issue.
Is the security relearn procedure difficult?
Not at all. For most GM vehicles of this era, it involves turning the key to the ‘ON’ position for 10 minutes, then ‘OFF’ for 10 seconds, and repeating this cycle three times. It’s a simple process that requires no tools, just a little patience.
