Is Your 2008 Yukon XL 1500 Running Rough or Not Starting At All?
As a technician with over two decades of experience under the hood, I’ve seen my share of baffling electrical issues. One of the most common culprits, especially in a vehicle as complex as the 2008 Yukon XL 1500, is a failing Engine Control Module (ECM). This isn’t just another part; it’s the central computer for your engine, managing everything from fuel injection and spark timing to transmission shifts and emissions. When it starts to fail, it can create a cascade of problems that are frustrating to diagnose and can leave you stranded.

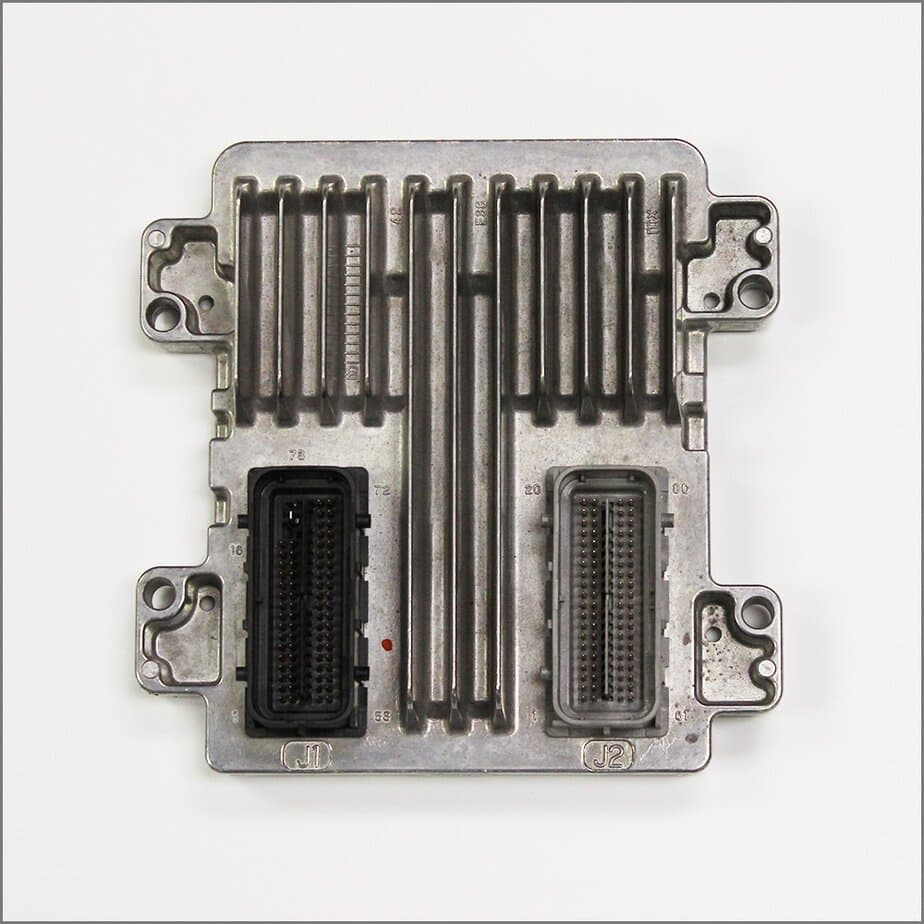

This isn’t a generic, off-the-shelf computer. This is a direct-fit replacement ECM, part number 12617568, that arrives at your door fully programmed to your specific vehicle. We use your Yukon’s Vehicle Identification Number (VIN) to load the latest, most stable software directly from GM. This critical step ensures all systems communicate correctly, restoring the performance and reliability you expect from your truck. You get a solution that eliminates the need for an expensive trip to the dealership for programming.
Case Study: The Intermittent No-Start
I once had a 2008 Suburban (which uses the same platform as your Yukon) in my bay with a maddening intermittent no-start condition. The owner had already replaced the battery, starter, and fuel pump. All the usual suspects checked out. There were no consistent trouble codes, just a random U0100 (Lost Communication with ECM/PCM). After hours of tracing wires, I noticed the 5-volt reference signal from the ECM would occasionally drop out during cranking. The internal processor was failing under load. We installed a VIN-programmed ECM just like this one, and the truck fired up on the first try and never had the issue again. It’s a perfect example of how a faulty ECM can mimic other component failures, making a correct diagnosis essential.
Telltale Signs of a Failing 2008 Yukon XL 1500 ECM
A failing engine computer can manifest in numerous ways. If you’re experiencing any of the following, your ECM is a likely suspect. In my shop, these are the symptoms that point me directly to the engine computer:
- ✔ Check Engine Light is on with codes like P0601, P0606, or U0100.
- ✔ The engine cranks but refuses to start.
- ✔ Unexplained stalling, especially when the engine is warm.
- ✔ Noticeable decrease in fuel economy.
- ✔ Rough idling or misfiring that isn’t solved by new plugs or coils.
- ✔ Harsh or erratic automatic transmission shifting.
- ✔ Communication errors with your diagnostic scan tool.
A Straightforward Guide to Installation
Replacing the ECM on your Yukon is a manageable job for a DIYer with basic tools. The key is taking your time and following the proper procedure. Here’s a general guide:
- Safety First: Always disconnect the negative terminal from your vehicle’s battery and wait at least 15 minutes for the system capacitors to discharge.
- Locate the ECM: On the 2008 Yukon XL 1500, the ECM is located in the engine bay on the driver’s side, typically under or near the battery tray.
- Disconnect the Harnesses: Carefully release the locking tabs on the electrical connectors. These can be brittle, so apply steady, even pressure. Never pull on the wires themselves. Inspect the connectors for any corrosion or damage.
- Remove the Old Module: Unbolt the old ECM from its mounting bracket. Keep the hardware, as you will reuse it for the new module.
- Install the New ECM: Mount your new, pre-programmed ECM onto the bracket and secure it with the original hardware.
- Reconnect Everything: Firmly plug the electrical harnesses back into the new module until they click into place. Reconnect the negative battery terminal.
- Security Relearn Procedure: In many cases, you will need to perform a security relearn procedure to sync the new ECM with your vehicle’s anti-theft system. This typically involves turning the key to the ‘ON’ position for 10-15 minutes, then off, and repeating two more times. Your vehicle’s service manual will have the exact steps.
Verified Vehicle Compatibility
This module is a direct replacement for part numbers 12612384, 12622141, and 12617568. It is guaranteed to fit a wide range of 2008-2011 GM vehicles. Please confirm your specific model and engine from the list below:
AURA 08 3.5L (RH firewall)
CAPRICE 11 (ID 12612384)
CORVETTE 08-09 (RH engine compartment)
CTS 08 3.6L, VIN 7 (ID 12612384)
EQUINOX 08-09 3.4L (LH engine compartment)
ESCALADE / ESV / EXT 08 (LH front under battery)
EXPRESS/SAVANA VANS 08 (Gasoline engines, LH rear engine compartment)
G6 08 3.5L or 3.9L (LH front engine compartment)
HUMMER H2 08 (LH front under battery)
IMPALA 08 3.5L or 3.9L (lower part of air cleaner box)
MALIBU 08 (Classic & New Style) 3.5L
SIERRA/SILVERADO 1500 08 (w/o 4.3L, LH front under battery)
SIERRA/SILVERADO 2500/3500 08 6.0L (LH front under battery)
SIERRA DENALI 08 (LH front engine compartment)
SUBURBAN 1500/2500 08 (LH front under battery)
TAHOE 08 (w/o hybrid, LH front under battery)
TORRENT 08-09 3.4L (LH engine compartment)
VUE 08-09 3.5L
YUKON / YUKON XL 1500/2500 08 (w/o hybrid, LH front under battery)
Frequently Asked Questions
Do I need to do anything after I install this ECM?
Because this module comes pre-programmed to your VIN, the main task after installation is the security relearn procedure, also known as the Passlock or anti-theft relearn. This procedure is straightforward and can be done without special tools. Specific instructions for your vehicle are widely available online or in service manuals.
How do I provide my VIN number?
After you complete your purchase, simply send us a message with your 17-digit Vehicle Identification Number (VIN). We cannot program and ship your module without it. Please double-check the VIN for accuracy to ensure a perfect match.
Is this a used part?
This is a high-quality, tested, and verified recycled OEM part. Each unit is inspected and then loaded with fresh, vehicle-specific software directly from GM. This provides OEM reliability without the high dealership price tag.
Will this fix my transmission shifting problems?
In many cases, yes. The ECM works in tandem with the Transmission Control Module (TCM) to control shift points and line pressure. A faulty ECM can send bad data, causing poor shifting. If your transmission issues are electronic in nature and not caused by an internal mechanical failure, this module is often the solution.
What if I have other modifications on my vehicle?
This ECM is programmed with the stock GM calibration for your specific VIN. It is designed for vehicles with original factory equipment and is not intended for vehicles with significant aftermarket performance modifications.
