If you’re staring at that frustrating ‘Service 4WD’ light on your 2008-2014 Chevy Tahoe’s dashboard, you’ve come to the right place. As a technician with over two decades of experience under the hood of GM trucks, I’ve seen this issue countless times. The Transfer Case Control Module (TCCM) is the electronic brain of your four-wheel-drive system, and when it fails, it can leave you stuck in the wrong mode, unable to shift, or with a persistent warning light that won’t go away.
This isn’t just an annoyance; it’s a matter of capability. Whether you need 4-High for a snowy road or 4-Low for a tough trail, a faulty TCCM compromises your vehicle’s performance. The good news is that this is a straightforward fix you can often do yourself, saving you a costly trip to the dealership.
A Technician’s Notebook
I remember a customer bringing in his ’11 Silverado with the ‘Service 4WD’ light on. He was convinced he needed a new transfer case motor because he couldn’t get the truck out of 2WD. His local shop quoted him over a thousand dollars. After a quick scan, I saw a C0327 code pointing to the encoder circuit, but also a U-code for lost communication with the TCCM. On these trucks, a failing TCCM is often the root cause. We swapped in a pre-programmed module, and in 15 minutes, all 4WD functions were restored. The customer saved hundreds of dollars by correctly diagnosing the electronic failure first, not the mechanical one.
Is Your Truck Showing These Symptoms?
A failing TCCM can manifest in several ways. If you’re experiencing any of the following, this module is the likely solution:
- ✔ ‘Service 4WD’ or ‘Service Four Wheel Drive’ message on the instrument cluster.
- ✔ Inability to switch between 2WD, 4WD High, and 4WD Low.
- ✔ The 4WD selector switch lights don’t illuminate or flash without engaging.
- ✔ Vehicle is stuck in one drive mode (e.g., stuck in 4WD).
- ✔ Diagnostic Trouble Codes (DTCs) stored in the system, such as C0306, C0327, C0374, C0569, or U0100.
The Plug-and-Play Advantage: No Dealer Required
The single biggest hurdle when replacing a modern vehicle module is programming. Typically, you’d buy the part, install it, and then have your vehicle towed to a dealer for an expensive programming session. We eliminate that entire step. Simply provide us with your vehicle’s VIN (Vehicle Identification Number) during checkout, and our technicians will flash this 2008-2014 Tahoe TCCM with the latest GM-certified software specific to your exact vehicle configuration. When it arrives at your door, it’s ready for a simple, direct installation.
A Straightforward Guide to Installation
You don’t need to be a master mechanic to replace this module. With basic hand tools, you can get your 4×4 system back online. The TCCM is typically located under the driver’s side dashboard, to the left of the steering column.
- Safety First: Disconnect the negative terminal from your vehicle’s battery to prevent any electrical shorts.
- Locate the Module: Remove the lower dash panel beneath the steering wheel (usually held by a few clips or screws) to gain access to the TCCM.
- Disconnect and Remove: Carefully unplug the electrical connectors from the old module. They have release tabs that need to be pressed. Then, unbolt the module from its bracket.
- Install the New Module: Bolt your new, pre-programmed TCCM into place. Securely plug in the electrical connectors until they click.
- Final Steps: Re-install the lower dash panel and reconnect the negative battery terminal. Start the vehicle and test your 4WD selector switch to confirm all modes are working correctly. The ‘Service 4WD’ light should now be off.
Verified Vehicle Compatibility

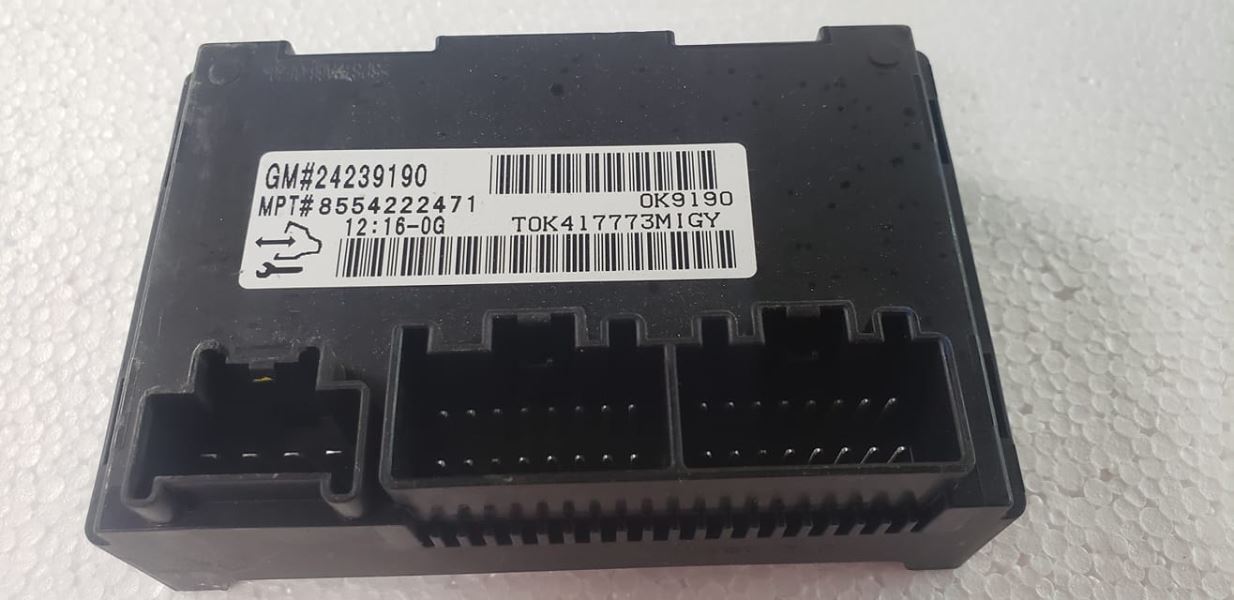

This module is a direct-fit replacement for a wide range of GM trucks and SUVs. Please confirm your vehicle is on the list below. This part is a replacement for part numbers: 24261367, 12588096, 24239190, 24240487, 24241143, 24241970, 24242480, 24243084, 24243085, 24249095, and 24252878.
- 2008-2013 Chevrolet Avalanche 1500
- 2007-2013 Chevrolet Silverado 1500 (07 new body style)
- 2007-2014 Chevrolet Silverado 2500/3500 (07 new body style)
- 2008-2014 Chevrolet Suburban 1500
- 2008-2013 Chevrolet Suburban 2500
- 2008-2014 Chevrolet Tahoe
- 2007-2013 GMC Sierra 1500 (07 new body style)
- 2007-2014 GMC Sierra 2500/3500 (07 new body style)
- 2007-2010 GMC Sierra Denali
- 2011-2014 GMC Sierra Denali 2500/3500
- 2007-2014 GMC Yukon & Yukon XL (07 Denali)
- 2008-2013 GMC Yukon XL 2500
Frequently Asked Questions
Why do you need my VIN?
Your VIN allows us to load the precise software and calibrations from GM for your vehicle’s specific options (engine, transmission, axle ratio). This ensures the 2008-2014 Tahoe TCCM works perfectly right out of the box, with no additional programming needed.
Is this part difficult to install?
No, this is a great DIY-friendly repair. The module is located under the driver’s side dash and is typically held in by two bolts. With basic tools, most people can swap it in under 30 minutes.
Will this fix my ‘Service 4WD’ light for sure?
The TCCM is the most common cause of this warning light and the associated symptoms on these GM trucks. While other issues (like a faulty encoder motor or selector switch) can cause similar problems, a failed TCCM is the primary culprit in over 80% of cases I’ve diagnosed in my shop.
What if I have a different part number on my old module?
No problem. This module, part number 24261367, is the latest iteration that supersedes many older part numbers. We’ve included a full list of compatible part numbers in the description to ensure you’re getting the correct component.
