Regain Command of Your 4WD System
Is your 2008-2014 Chevrolet Tahoe or other GM truck plagued by a flashing “Service 4WD” light? Are you unable to switch between 2WD and 4WD, or stuck in a mode you don’t want? You’re not dealing with a massive mechanical failure; you’re likely facing a faulty Transfer Case Control Module (TCCM). As the electronic brain of your four-wheel-drive system, this module is essential for reliable performance in all weather and terrain. When it fails, it can leave you without the traction you need, when you need it most.
This is a direct-fit replacement TCCM, but with one crucial advantage: we program it specifically to your vehicle’s VIN before it ships. This means you get a true plug-and-play solution, loaded with the latest GM software updates. You can bypass the expensive trip to the dealership for programming and get your truck back to 100% functionality right in your own garage. This is the definitive fix for the common issues that plague the 2008-2014 Tahoe TCCM and related GM vehicles.
From the Diagnostic Bay: A Common Scenario
I remember a 2011 Suburban that came into my shop. The owner was frustrated because his 4WD would sometimes refuse to engage, and other times it wouldn’t disengage. The selector switch lights were erratic. He was worried he needed a new transfer case, a multi-thousand-dollar job. After a quick scan, I found a U0100 Lost Communication code with the TCCM. Instead of jumping to conclusions, we checked the module’s power and ground—both were good. The issue was internal failure of the module itself, a common problem I’ve seen hundreds of times due to voltage fluctuations and heat cycles. We installed one of these VIN-programmed modules, and in under 30 minutes, the truck’s 4WD system was operating perfectly. It saved the customer a huge amount of money and stress.
Is Your Truck Showing These Symptoms?
A failing TCCM can manifest in several ways. If you’re experiencing any of the following, this module is the likely solution for your 2008-2014 Tahoe TCCM issues:
- ✔ “Service 4WD” or “Service Four Wheel Drive” message on the instrument cluster.
- ✔ Inability to shift the transfer case into or out of 4WD High, 4WD Low, or 2WD.
- ✔ The 4WD selector switch lights do not illuminate or flash without engaging.
- ✔ A grinding or clunking noise when attempting to shift drive modes.
- ✔ Diagnostic Trouble Codes (DTCs) stored in the system, such as C0306, C0327, C0374, or U0100.
- ✔ The vehicle feels like it’s binding or hopping during turns on dry pavement.
A Straightforward Guide to Installation
One of the best features of this module is its simple, DIY-friendly installation. Since we handle the programming, you won’t need any special scan tools. You can do this with basic hand tools in your driveway.
- Safety First: Disconnect the negative terminal from your vehicle’s battery to prevent any electrical shorts.

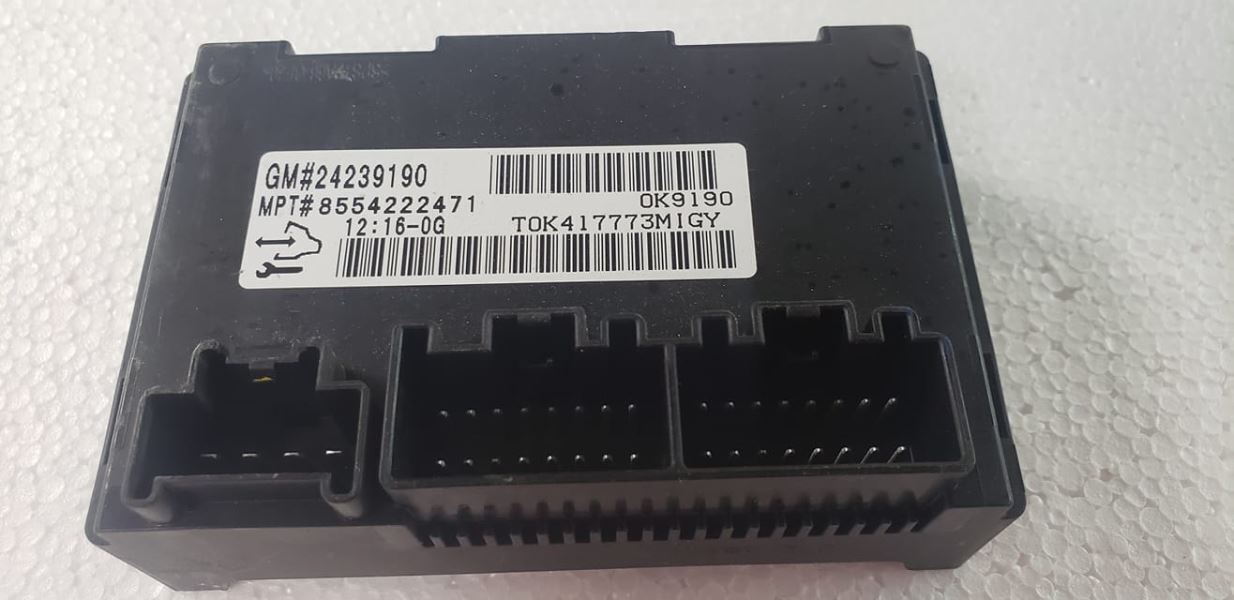

- Locate the Module: On most compatible models, the TCCM is located on the driver’s side of the vehicle, up under the dashboard to the left of the steering column. It’s a small black box with a few electrical connectors.
- Remove the Old Module: Carefully unplug the electrical harnesses. They have small locking tabs that need to be depressed. Then, unbolt the module from its mounting bracket.
- Install the New Module: Bolt your new, pre-programmed TCCM into place. Securely plug in the electrical connectors, ensuring they click to confirm they are fully seated.
- Final Steps: Reconnect the negative battery terminal. Turn the ignition to the ‘On’ position (without starting the engine) for about 30 seconds to allow the system to initialize. Start your vehicle and test the 4WD selector switch to confirm proper operation.
Will This Fit My Truck or SUV?
We guarantee compatibility with the following GM vehicles. This module replaces a wide range of original part numbers, including 24261367, 12588096, 24249095, and more. Please provide your VIN upon purchase to ensure perfect programming.
SIERRA 1500 PICKUP 07 (New Body Style, Opt NQH)
SIERRA 1500 PICKUP 08-13
SIERRA 2500 PICKUP 07 (New Body Style, Opt NQF)
SIERRA 2500 PICKUP 08-14
SIERRA 3500 PICKUP 07 (New Body Style)
SIERRA 3500 PICKUP 08-14
SIERRA DENALI 07-10
SIERRA DENALI 2500/3500 11-14
SILVERADO 1500 PICKUP 07 (New Body Style, Opt NQH)
SILVERADO 1500 PICKUP 08-13
SILVERADO 2500 PICKUP 07 (New Body Style, Opt NQF)
SILVERADO 2500 PICKUP 08-14
SILVERADO 3500 PICKUP 07 (New Body Style)
SILVERADO 3500 PICKUP 08-14
SUBURBAN 1500 08-14
SUBURBAN 2500 08-13
TAHOE 08-14
YUKON & YUKON DENALI 07-14
YUKON XL 1500 & DENALI 07-14
YUKON XL 2500 08-13
Frequently Asked Questions
Why do you need my VIN?
Your Vehicle Identification Number (VIN) allows us to program the module with the exact software and calibrations specific to your truck’s options (engine, transmission, transfer case model). This ensures seamless communication and perfect functionality right out of the box.
Is this a difficult part to install myself?
Not at all. For most DIYers with basic tools, this is a 30-minute job. The module is typically located under the driver’s side dashboard and is held in by a few bolts. Since we pre-program it, there’s no complex computer work required on your end.
Will this fix the ‘Service 4WD’ light on my dash?
In the vast majority of cases, yes. The TCCM is the most common point of failure that causes this specific warning light and the associated shifting problems. This module is designed to be the definitive solution for those symptoms.
What makes this better than a used part from a junkyard?
A used module will not be programmed for your specific vehicle and may have the same internal flaws as your old one. Our modules are verified for function and flashed with the latest GM software for your VIN, offering reliability you can’t get from a salvage yard.
Do I need to return my old module?
No core charge or return is required for this part. You can simply replace your old module and dispose of it properly.
