Restore Your Tahoe’s Four-Wheel Drive with a Plug-and-Play Solution
Is that frustrating “Service 4WD” light glaring at you from the dashboard of your 2008-2014 Chevrolet Tahoe? Are you unable to switch between 2WD and 4WD, leaving you unprepared for changing road conditions? You’ve likely pinpointed the issue to a failed Transfer Case Control Module (TCCM). This isn’t just an inconvenience; it’s a reliability issue. The TCCM is the electronic brain of your 4×4 system, and when it fails, it leaves your vehicle’s full capabilities inaccessible. This module is the definitive, hassle-free fix.
We take the guesswork and dealership expense out of the equation. Unlike a standard replacement part that requires a trip to the dealer for expensive programming, this TCCM arrives at your door fully programmed to your vehicle’s specific VIN. We flash it with the latest, most stable software updates from GM, ensuring optimal performance and communication with your truck’s other systems. This makes the installation a simple plug-and-play process for any DIY enthusiast or professional technician looking to save time and money.
From the Diagnostic Bay
I recently had a 2011 Tahoe in the shop that was stuck in 4-Lo. The owner was frantic, as the truck was barely drivable. The selector switch lights were out, and the dash was lit up with the “Service 4WD” message. A quick scan showed a U0102 code—Lost Communication with Transfer Case Control Module. After verifying power and ground at the TCCM connector, the diagnosis was clear. Instead of towing it to a dealer, we ordered one of these VIN-programmed modules. It arrived two days later, we plugged it in, and the system came back to life instantly. The customer was back on the road in under 30 minutes, saving hundreds in diagnostic and programming fees at the dealership.
Is Your Tahoe Exhibiting These 4WD Problems?
A failing TCCM can cause a variety of symptoms. If you’re experiencing any of the following, this module is the most likely solution:
- ✔ “Service 4WD” or “Service Four Wheel Drive” message on the instrument cluster.
- ✔ Inability to shift the transfer case into or out of 4-Hi, 4-Lo, or 2WD.
- ✔ The 4WD selector switch lights are not illuminating or are flashing.
- ✔ Diagnostic Trouble Codes (DTCs) such as U0102, C0327, or other communication errors related to the transfer case.
- ✔ A noticeable clunk or hesitation when the transfer case attempts to engage.
- ✔ The system defaults to one mode and will not change.
A Straightforward Guide to Installation
Replacing the TCCM on your Tahoe is a job most DIYers can handle in their own driveway. With our pre-programmed module, no special scan tools are needed.
- Safety First: Always disconnect the negative terminal from your vehicle’s battery before working on electrical components.
- Locate the Module: The TCCM is typically located on the driver’s side of the dashboard, up and to the left of the steering column, often attached to a metal bracket. You may need to remove the lower dash panel for access.
- Disconnect and Remove: Carefully unplug the electrical connectors from the old module. They have locking tabs that need to be depressed. Once disconnected, unbolt the module from its mounting bracket.
- Install the New Module: Bolt the new, pre-programmed TCCM into place. Firmly reconnect the electrical connectors, ensuring they click and are fully seated.
- Final Steps: Reinstall any dash panels you removed. Reconnect the negative battery terminal. Start the vehicle and test the 4WD selector switch to confirm proper operation.
Verified Vehicle Compatibility

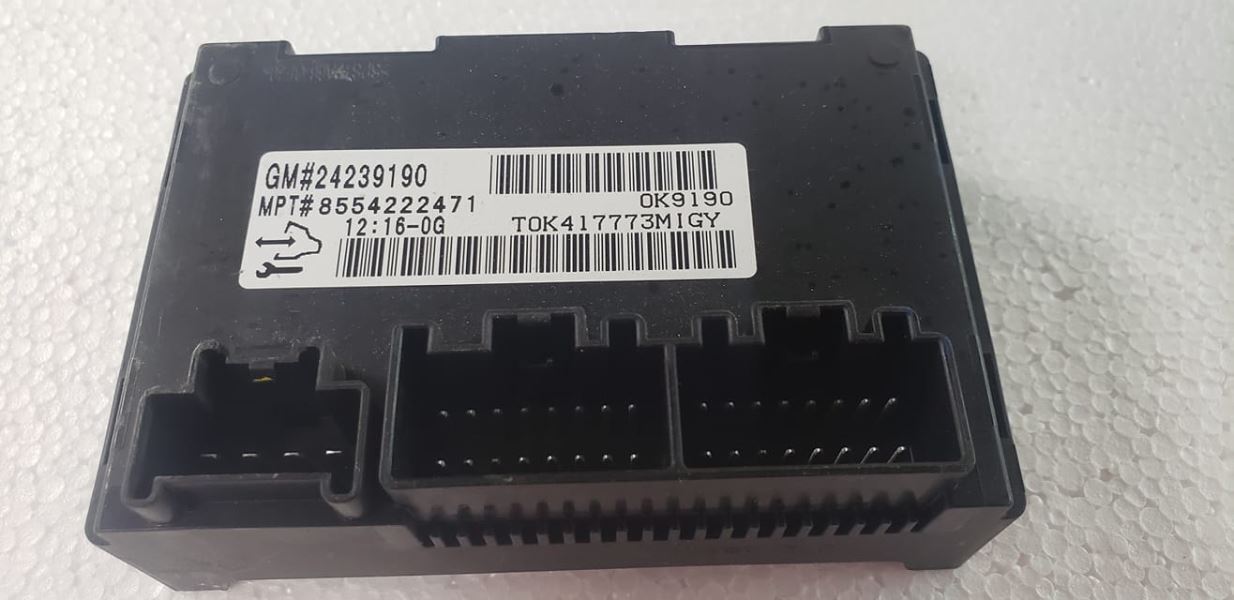

This module is a direct replacement for part number 24239190 and is also compatible with several other GM part numbers. It is guaranteed to fit the following vehicles:
- Chevrolet Avalanche 1500: 2008-2013
- Chevrolet Silverado 1500: 2007 (New Body Style), 2008-2013
- Chevrolet Silverado 2500/3500: 2007 (New Body Style), 2008-2014
- Chevrolet Suburban 1500: 2008-2014
- Chevrolet Suburban 2500: 2008-2013
- Chevrolet Tahoe: 2008-2014
- GMC Sierra 1500: 2007 (New Body Style), 2008-2013
- GMC Sierra 2500/3500: 2007 (New Body Style), 2008-2014
- GMC Sierra Denali (1500/2500/3500): 2007-2014
- GMC Yukon & Yukon XL 1500: 2007 (Denali), 2008-2014
- GMC Yukon XL 2500: 2008-2013
Note: After purchasing, please provide your 17-digit VIN to ensure we program the module correctly for your specific vehicle options before shipment.
Frequently Asked Questions
Do I need to do any programming myself?
No. This TCCM comes fully programmed to your vehicle’s VIN with the latest GM software. It is a true plug-and-play installation, saving you a trip to the dealership.
How do I provide my VIN?
After you complete your purchase, you can send us a message with your 17-digit Vehicle Identification Number (VIN). We cannot ship the module until we receive your VIN for programming.
Will this fix my ‘Service 4WD’ light?
In the vast majority of cases, a faulty TCCM is the root cause of the ‘Service 4WD’ light and the inability to shift modes. If your vehicle’s symptoms match those listed, this module is the correct and reliable fix.
Where is the TCCM located on my 2010 Tahoe?
On the 2008-2014 Tahoe and similar GM trucks/SUVs, the Transfer Case Control Module is typically mounted to a bracket behind the dashboard, to the left of the steering column. Access is gained by removing the lower knee bolster panel.
Is this compatible with other part numbers?
Yes, this module is a direct replacement for part number 24239190 and is also a compatible replacement for several others, including 24261367, 12588096, 24240487, and more, as listed in the fitment data.
