Restore Your Minivan’s Performance and Reliability
Is your 2008-2010 Dodge Caravan, Chrysler Town & Country, or 2008 Pacifica suddenly unreliable? Experiencing frustrating issues like random stalling, a no-start condition, a persistent check engine light, or erratic engine behavior? As a technician with over two decades of experience, I’ve seen these exact symptoms countless times. More often than not, the root cause is a failing Engine Control Module (ECM), the central computer that manages your vehicle’s engine performance.

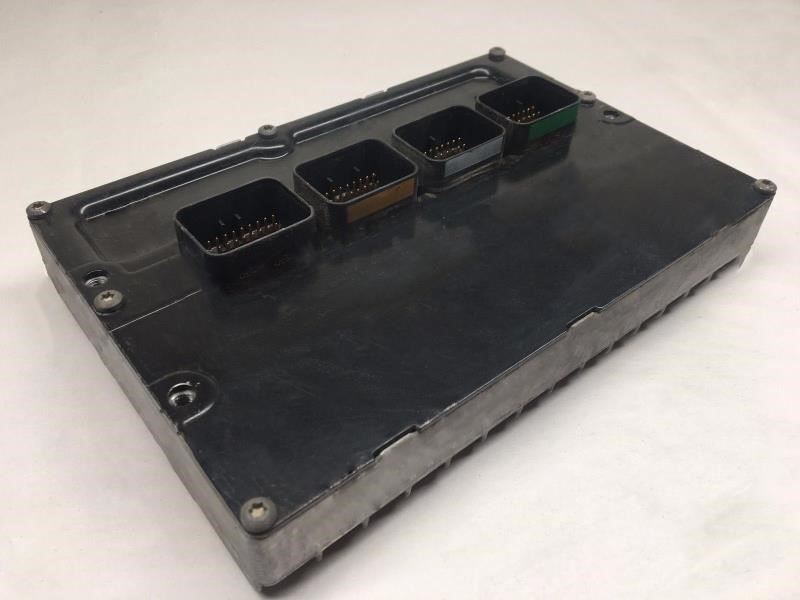

When the ECM starts to fail, it can create a diagnostic nightmare, throwing confusing codes or causing intermittent problems that are impossible to pin down. You’re left with a vehicle you can’t trust. This isn’t just an inconvenience; it’s a safety concern. Our replacement 2008-2010 Caravan Engine Computer is the definitive solution, designed to get you back on the road with confidence and without the exorbitant costs and delays of a dealership visit.
From the Diagnostic Bay: The Phantom No-Start
I remember a 2009 Town & Country with the 4.0L engine that was towed into my shop. The owner was at his wit’s end. The van would run perfectly for days, then refuse to start for no apparent reason. He had already replaced the battery and checked the fuel pump. We connected our scanner and found intermittent communication loss with the ECM (a classic U0100 code). After verifying the wiring and power/ground feeds to the module were solid, we knew the ECM itself was the culprit. These internal failures can be heat-sensitive and incredibly frustrating to diagnose. Swapping in a pre-programmed ECM like this one had the van starting reliably every single time, solving a month-long headache in under 30 minutes.
Common Signs of a Failing Engine Computer
- âś” Check Engine Light: The light is on, and you may have codes like P0601 (Internal Control Module Memory Check Sum Error) or P0606 (ECM/PCM Processor Fault).
- âś” No-Start or Hard Starting: The engine cranks but won’t fire up, or takes an excessively long time to start.
- âś” Engine Stalling: The engine shuts off unexpectedly while driving or idling, a major safety hazard.
- âś” Poor Fuel Economy: A sudden, unexplained drop in your vehicle’s MPG.
- âś” Erratic Shifting: The ECM also communicates with the transmission controller, and a fault can lead to harsh or incorrect shifting.
- âś” Loss of Spark or Fuel Injector Pulse: The computer fails to send the correct signals to the ignition coils or fuel injectors.
A Straightforward Guide to Installation
- âś” Safety First: Disconnect the negative terminal from your vehicle’s battery and secure it away from the post to prevent accidental reconnection.
- âś” Locate the ECM: On these minivans, the Engine Control Module is typically located in the engine bay, often on the firewall or near the battery. It’s a metal box with several large electrical connectors.
- âś” Disconnect the Connectors: Carefully release the locking tabs on the wiring harness connectors and pull them straight out from the module. Avoid pulling on the wires themselves.
- âś” Remove the Old Module: Unbolt the old ECM from its mounting bracket. There are usually a few 8mm or 10mm bolts holding it in place.
- âś” Install the New Module: Mount your new, pre-programmed ECM securely onto the bracket and re-tighten the bolts.
- âś” Reconnect Everything: Plug the wiring harness connectors firmly back into the new module until they click into place. Reconnect the negative battery terminal.
- âś” Final Step: Start the vehicle. It may take a moment to idle smoothly as it completes its self-checks. Your installation is now complete, with no further programming required!
Verified Vehicle Compatibility List
This plug-and-play engine computer is a direct-fit replacement for the following vehicles equipped with the 4.0L V6 engine. It is compatible with all the part numbers listed below, ensuring a perfect match for your vehicle’s system.
- 2008-2010 Dodge Caravan (4.0L Engine)
- 2008-2010 Chrysler Town & Country (4.0L Engine)
- 2008 Chrysler Pacifica (4.0L Engine)
Compatible Part Numbers: 05150253AC, 05150253AD, 05150253AE, 68044560AB, 68044560AC, 68044560AD, 68044560AE, 68044560AF, 68031313AA, 68031313AB, 68031313AC, 68031313AD, 68031313AE, 68031313AF, 68031313AG, 68031313AH, 68031314AA, 68031314AB, 68031314AC, 68031314AD, 68031314AE, 68031314AF, 68031314AG, 68031314AH
Frequently Asked Questions
How does the programming process work?
It’s simple! During checkout, you will provide your vehicle’s Vehicle Identification Number (VIN) and current mileage. We then program the module with your vehicle’s specific software and security information. When it arrives, it’s ready for immediate installation with no extra steps.
Is this really plug-and-play?
Yes. Because we program the unit to your VIN, it syncs with your vehicle’s existing components, including the ignition keys and security system. You will not need to pay a dealer or mechanic for additional programming.
Will this fix my specific problem?
This module corrects issues directly caused by a faulty ECM. While it resolves the vast majority of electronic engine problems, we always recommend proper diagnostics to confirm the ECM is the source of the fault and not a separate sensor or wiring issue.
Do I need to send my old part back?
This purchase does not require a core return. You can keep your old module, though we always recommend recycling old electronics responsibly.
