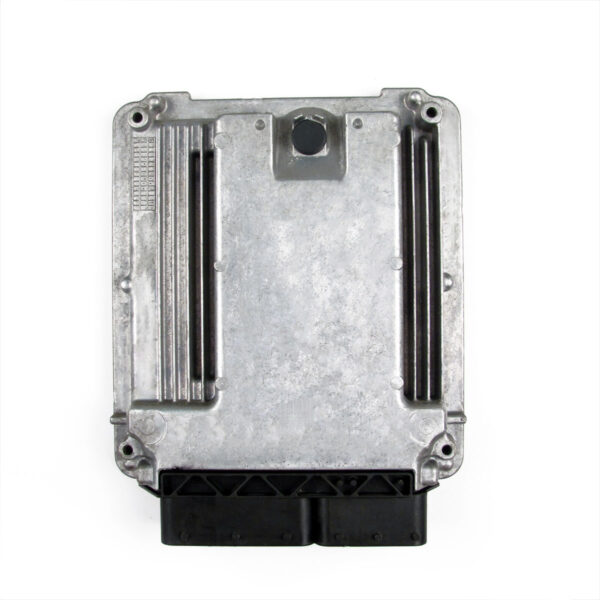

Programmed 2008-2009 STS ECM 12630594 Engine Control Module

Restore Peak Performance to Your GM Vehicle

As a technician with over two decades of experience under the hood, I’ve seen firsthand the frustration a failing Engine Control Module (ECM) can cause. Your 2008-2009 Cadillac STS isn’t just a car; it’s a precision machine, and the ECM is its brain. When it falters, you experience everything from a nerve-wracking Check Engine Light to poor fuel economy, rough idling, or even a no-start condition that leaves you stranded. This isn’t just an inconvenience—it’s a critical failure that compromises your vehicle’s reliability and performance.

This replacement Engine Control Module is the definitive solution. It’s not just a part; it’s a complete service designed to get you back on the road with confidence. The most significant advantage is our professional programming service. Before this module ships, we flash it with the latest official GM software updates, tailored specifically to your vehicle’s VIN. This eliminates the need for an expensive trip to the dealership for programming, saving you both time and hundreds of dollars. You’re getting a component that’s ready to integrate seamlessly with your vehicle’s systems right out of the box.

Common Signs of a Failing ECM

If your vehicle is the heart of your daily life, a faulty ECM is like a critical illness. Watch for these symptoms, which often indicate the module is the culprit. A proper diagnosis is key, but if you’re seeing these issues, the ECM is a prime suspect.

• ✔ Check Engine Light is illuminated with codes like P0601 (Internal Control Module Memory Check Sum Error) or P0606 (ECM/PCM Processor Fault).
• ✔ The engine cranks but refuses to start.
• ✔ Noticeable drop in fuel efficiency for no apparent reason.
• ✔ Stalling, hesitation, or rough idling, especially when the engine is warm.
• ✔ Communication errors with other modules on the vehicle network (U-codes).
• ✔ Transmission shifting problems or erratic behavior.

A Straightforward Guide to Installation

Replacing the ECM is a manageable job for a DIY enthusiast. Our pre-programming service handles the most complex step, but following the correct physical installation process is crucial for success.

1. Safety First: Always disconnect the negative terminal from your vehicle’s battery and wait at least 15 minutes to allow all capacitors to discharge.
2. Locate the Module: On the Cadillac STS/CTS, the ECM is typically on the right-hand (passenger) side of the engine compartment. On models like the Acadia, Traverse, and Enclave, it’s often located behind the fan shroud. Refer to a service manual for your specific model if you’re unsure.
3. Disconnect Connectors: Carefully release the locking tabs on the wiring harness connectors and pull them straight out from the module. Never force them. Inspect the pins for any corrosion or damage.
4. Remove the Old ECM: Unbolt the old module from its mounting bracket. Keep the hardware, as you will need it for the new unit.
5. Install the New Module: Mount your new, pre-programmed 2008-2009 STS ECM in place and secure it with the original hardware.
6. Reconnect and Secure: Firmly plug the wiring harnesses back into the new module until they click into place. Reconnect the negative battery terminal.
7. Perform Security Relearn: On many GM vehicles, a security or anti-theft relearn procedure is required. This typically involves turning the key to the ‘ON’ position for 10-15 minutes, then off, and repeating two more times. This allows the new ECM to sync with your vehicle’s security system.

Verified Vehicle Compatibility

This module is a direct-fit replacement for a wide range of GM vehicles equipped with the 3.6L engine. Please verify your vehicle is on this list to ensure proper fitment. This unit is compatible with part numbers 12623325, 12628387, 12605672, 12630594, and 19300016.
