Restore Safe Towing with a Reliable, Pre-Programmed TBCM
As a technician with over two decades of experience, I’ve seen countless trucks come into the shop with that frustrating ‘SERVICE TRAILER BRAKE SYSTEM’ message lighting up the dash. It’s more than an annoyance; it’s a critical safety failure that leaves you unable to tow with confidence. This Trailer Brake Control Module (TBCM) is the definitive solution for your 2007-2009 GM HD truck, designed to restore full functionality and peace of mind. The most significant benefit we offer is that this isn’t just a part in a box. We professionally flash this module with the latest official GM software, perfectly matched to your truck’s specific Vehicle Identification Number (VIN). This means you get a true plug-and-play component, eliminating the need for an expensive and time-consuming trip to the dealership for programming.
The Critical Role of Your 2008-2009 Sierra 1500 TBCM
Your truck’s TBCM is the brain behind the integrated trailer braking system. It interprets signals from your truck’s computer—like brake pedal pressure and vehicle speed—to apply your trailer’s electric brakes proportionally. When it fails, you lose that synchronized braking, which is extremely dangerous, especially when hauling heavy loads or navigating steep grades. Common failures are often due to its exposed mounting location on the left-hand rear frame rail, where it’s susceptible to water, salt, and road debris, leading to internal corrosion and electronic failure. This replacement module restores that crucial communication link, ensuring your truck and trailer brake as one cohesive unit.
From the Diagnostic Bay: The Intermittent Fault
I remember a 2008 Silverado 2500HD that came in with an intermittent ‘Service Trailer Brake’ light. The customer said it only happened after driving in the rain. Hooking up the trailer, the brakes worked one minute and not the next. A visual inspection of the TBCM on the frame rail looked fine from a distance. But once I unbolted it and disconnected the harness, the problem was clear: the back side of the connector was packed with dirt and moisture, and two pins on the module itself showed signs of green corrosion. That water intrusion was shorting the communication circuit intermittently. We replaced it with a pre-programmed module, cleaned the harness connector thoroughly, and applied dielectric grease to seal it. The problem was solved permanently. It’s a classic failure I’ve diagnosed on hundreds of these GM trucks.
A Straightforward Guide to Installation
- ✔ Safety First: Disconnect the negative terminal from your truck’s battery to prevent any electrical shorts.
- ✔ Locate the Module: Find the TBCM mounted to the inside of the driver-side (LH) frame rail, typically just in front of the rear axle.
- ✔ Disconnect Electrical Harness: Carefully press the release tab and pull the main electrical connector straight out from the module. Inspect the harness connector for any corrosion or damage and clean it if necessary.
- ✔ Remove Old Module: The module is typically held in place by two bolts. Use the appropriate socket to remove them and take the old module off the frame.
- ✔ Install New Module: Mount your new, pre-programmed TBCM onto the frame using the original bolts. Ensure it is secure.
- ✔ Reconnect and Secure: Firmly plug the electrical connector into the new module until it clicks into place. Apply a small amount of dielectric grease to the seal for added weather protection. Reconnect your battery terminal.
- ✔ Final Check: Start the vehicle. The ‘Service Trailer Brake System’ message should now be gone. Test functionality with a trailer if available.
Is Your Truck Displaying These Warning Signs?
- ✔ ‘SERVICE TRAILER BRAKE SYSTEM’ message on the Driver Information Center (DIC).
- ✔ No power output to the trailer’s brakes, even when manually applied.
- ✔ The trailer brake gain adjustment on the dash has no effect.
- ✔ Intermittent connection or fault messages, especially in wet conditions.
- ✔ Diagnostic Trouble Codes (DTCs) stored in the system, such as U0100 (Lost Communication With ECM/PCM) or specific C-codes related to trailer brake control circuits.
Verified Fitment for Your GM Truck

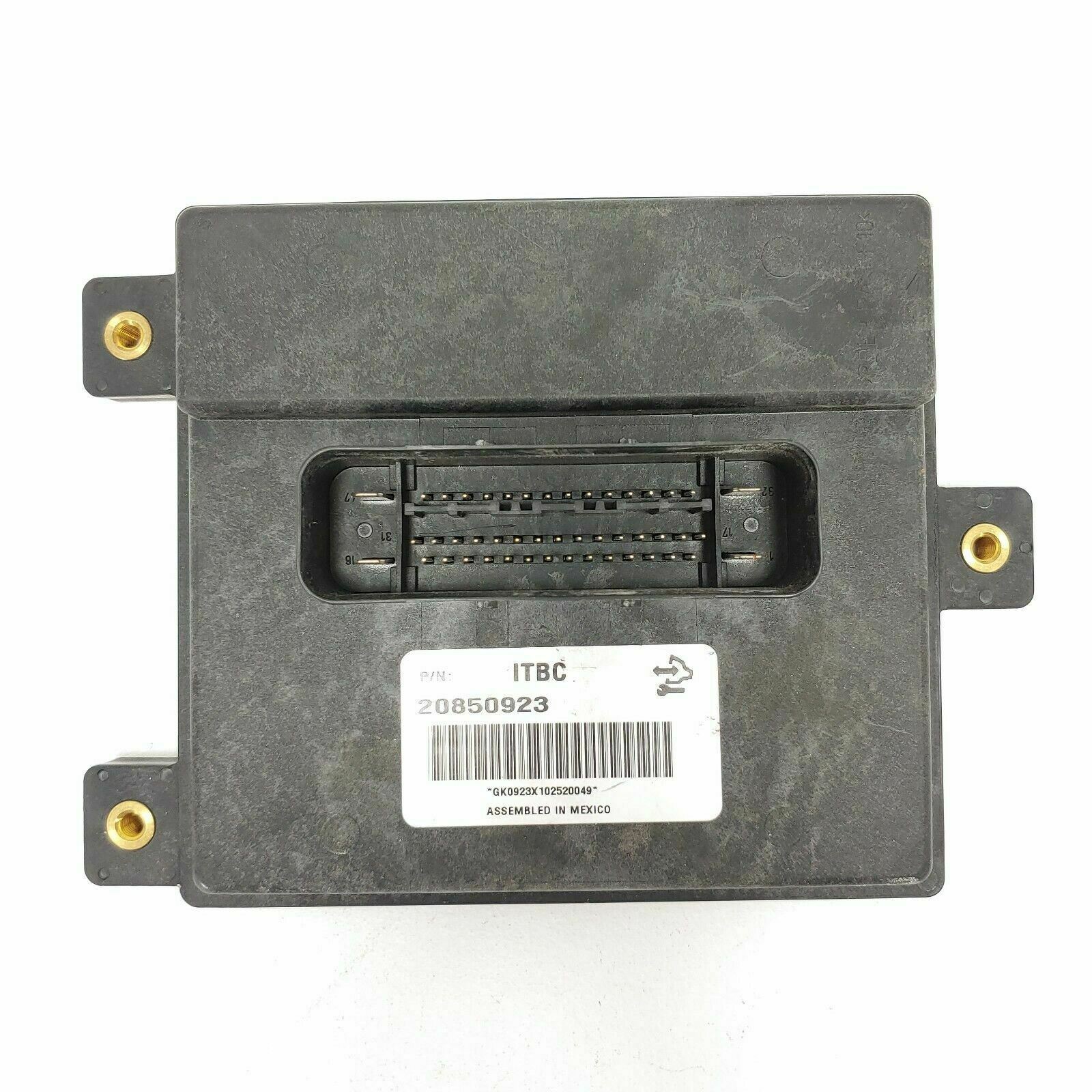

This module is a direct-fit replacement for the following vehicles equipped with the factory towing package. It is a compatible replacement for part numbers 20850923, 25854535, 25788981, and 25907533.
- 2007-2009 Sierra 3500 Pickup (Towing Control; LH rear frame)
- 2007-2009 Sierra 2500 Pickup (Towing Control; LH rear frame)
- 2007-2009 Silverado 2500 Pickup (Towing Control; LH rear frame)
- 2007-2009 Silverado 3500 Pickup (Towing Control; LH rear frame)
- 2008-2009 Silverado 1500 Pickup (Towing Control; LH rear frame)
- 2008-2009 Sierra Denali (Towing Control; LH rear frame)
- 2008-2009 Sierra 1500 Pickup (Towing Control; LH rear frame)
Frequently Asked Questions
Do I need to take this part to a dealer for programming?
No. We flash the module with the latest GM software using your vehicle’s VIN before we ship it. It arrives ready to install, saving you hundreds in dealership fees and hassle.
How do I provide my VIN?
After you complete your purchase, simply send us a message with your 17-digit Vehicle Identification Number (VIN). We cannot ship the part until we receive this information for programming.
Will this fix the ‘Service Trailer Brake System’ message on my dash?
In the vast majority of cases, a faulty TBCM is the direct cause of this warning message. Replacing it with this pre-programmed unit is the correct and reliable fix for the issue.
Where is this TBCM located on the truck?
You can find the Trailer Brake Control Module mounted on the inside of the driver’s side (left hand) frame rail, usually located just forward of the rear axle.
Is this a better option than a used part from a junkyard?
Absolutely. A used part will have the same age and potential for failure as your old one, and it will not be programmed for your specific truck. Our module comes with fresh, updated software matched to your VIN for guaranteed performance.
