Is Your Cadillac, Equinox, or G8 Running Rough?
If you’re dealing with frustrating issues like random stalling, a persistent check engine light, poor fuel mileage, or a car that simply won’t start, a failing Engine Control Module (ECM) is often the culprit. As the brain of your vehicle’s engine, the ECM controls everything from fuel mixture and spark timing to transmission shifts. When it fails, it can cause a cascade of problems that are difficult to diagnose. I’ve seen it hundreds of times in my shop—a perfectly good engine crippled by a faulty computer.

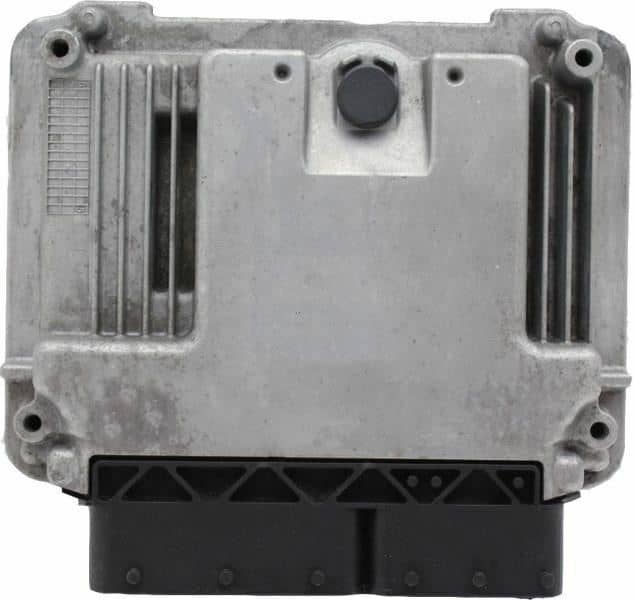

This isn’t just a replacement part; it’s a complete, ready-to-install solution. We are offering a thoroughly tested, used OEM Engine Control Module compatible with part numbers 12623327, 12614423, and 12619582. The most significant benefit? We flash this module with the latest official GM software, programmed specifically to your vehicle’s VIN before it ever leaves our facility. This eliminates the need for expensive dealership programming or specialized tools, making it a true plug-and-play fix for both professional technicians and determined DIYers.
Case Study: A Tricky 3.6L Diagnosis
A few months back, a 2009 Cadillac SRX with the 3.6L V6 was towed to my bay. The owner was frustrated; he’d replaced the fuel pump and crankshaft sensor, but the engine still had an intermittent no-start condition and would occasionally stall at red lights. The scanner was throwing a P0606 (ECM/PCM Processor Fault) and a U0100 (Lost Communication with ECM/PCM). After verifying all power and ground circuits to the module were solid—a critical first step—it was clear the internal processor of the ECM was failing. We sourced a reliable, pre-programmed module like this one, and the installation took less than 30 minutes. The SRX fired right up and has been running perfectly ever since. This simple swap saved the customer over $800 compared to the dealership’s quote.
Common Signs of a Failing ECM
If you’re experiencing any of the following, a faulty engine computer could be the reason. A failing 2008-2009 CTS ECM or related module can manifest in several ways:
- ✔ Check Engine Light is illuminated with codes like P0601, P0602, P0606, or U-series communication codes.
- ✔ The engine cranks but will not start.
- ✔ Intermittent stalling, especially when the engine is warm.
- ✔ Noticeable decrease in fuel economy.
- ✔ Harsh or erratic automatic transmission shifting.
- ✔ Misfires or rough idling that isn’t resolved by new spark plugs or coils.
- ✔ Failure to pass an emissions inspection.
A Straightforward Guide to Installation
Replacing your 2008-2009 CTS ECM is a manageable job for someone with basic mechanical skills. Following these steps will ensure a smooth process. Always consult a vehicle-specific repair manual if you are unsure about any step.
- Safety First: Always disconnect the negative terminal from your vehicle’s battery and wait at least 15 minutes to allow all capacitors to discharge.
- Locate the ECM: On most of these vehicles (CTS, SRX), the ECM is located in the engine compartment on the right-hand (passenger) side. For the Equinox and Torrent, it’s typically on the left-hand (driver) side. It’s a silver metal box with large electrical connectors.
- Disconnect Connectors: Carefully release the locking tabs on the electrical harnesses and pull them straight out from the module. Do not force them. Inspect the pins for any corrosion or damage.
- Remove the Old Module: Unbolt the old ECM from its mounting bracket. There are typically a few 10mm bolts holding it in place.
- Install the New Module: Mount your new, pre-programmed ECM securely onto the bracket. Reconnect the electrical harnesses, making sure they click firmly into place.
- Reconnect Battery: Reattach the negative battery terminal.
- Perform Security Relearn (If Necessary): While we program the module to your VIN, some GM vehicles may require a simple key-cycle security relearn procedure. This usually involves turning the key to the ‘ON’ position for 10-15 minutes, then ‘OFF’, and repeating two more times. Your vehicle’s manual will have the specific procedure.
Will This Fit My Vehicle?
This module is a direct-fit replacement for the following vehicles equipped with the 3.6L V6 engine. Please verify your part number or contact us with your VIN to ensure 100% compatibility.
- 2008 Cadillac CTS (3.6L, VIN 7, ID 12614423)
- 2009 Cadillac CTS (3.6L, VIN 7)
- 2008-2009 Chevrolet Equinox (3.6L)
- 2008-2009 Pontiac Torrent (3.6L)
- 2008-2009 Cadillac SRX (3.6L)
- 2008 Pontiac G8 (3.6L)
- 2009 Pontiac G8 (ID 12623327)
By purchasing this pre-programmed 2008-2009 CTS ECM, you are choosing a reliable and cost-effective path to getting your vehicle back in top running condition. Simply provide your VIN at checkout, and we’ll handle the rest.
