Restore Your Vehicle’s Core Performance and Reliability
If your 2007 Cadillac Escalade ESV is suffering from frustrating issues like intermittent stalling, a persistent check engine light, poor fuel economy, or a complete no-start condition, the problem often lies with a failing Engine Control Module (ECM). As the central computer of your vehicle, a faulty ECM can cause a wide range of baffling problems that compromise both safety and performance. I’ve seen it hundreds of times in the shop: a great truck or SUV sidelined by a single electronic component failure. This isn’t just an inconvenience; it’s a critical failure that needs a reliable solution.
This is not just a replacement part; it’s a complete, ready-to-install solution. We take the hassle and high cost out of the repair by programming this module specifically for your vehicle using your VIN. This means it arrives at your door with the latest GM factory software updates already installed. You can bypass the expensive trip to the dealership for programming—a step that’s absolutely mandatory with a blank module. This direct-fit 2007 Escalade ESV ECM is designed to restore the precise engine management your vehicle had when it left the factory.
Case Study: The Ghost in the Machine
A customer brought in a 2007 Tahoe—same platform as the Escalade—with a problem that was driving him crazy. It would randomly stall at red lights, but not always. We checked the fuel pressure, spark, and sensors, and everything looked fine. No consistent trouble codes were stored, just a generic U0100 (Lost Communication) every once in a while. After hours of diagnostics, we decided to monitor the ECM’s internal voltage and data stream on a long test drive. Sure enough, we saw the processor voltage dip erratically just before a stall. A new, properly programmed ECM fixed it instantly. These intermittent failures are a classic sign of an aging ECM, and this part is the definitive fix.
Common Signs of a Failing Engine Control Module
A failing ECM can manifest in numerous ways. If you’re experiencing any of the following, your engine’s computer may be the culprit:
- ✔ Check Engine Light is on with codes like P0601, P0602, P0606, or U0100
- ✔ Engine cranks but refuses to start
- ✔ Intermittent stalling or rough idling
- ✔ A noticeable drop in fuel efficiency
- ✔ Poor engine performance and hesitation during acceleration
- ✔ Transmission shifting issues or failure to shift
- ✔ Communication problems with diagnostic scan tools
A Straightforward Guide to Installation
Replacing the ECM on most compatible GM trucks and SUVs is a manageable job for a DIYer with basic tools. This pre-programmed module makes the electronic side of the job simple. Just follow these general steps:
- Safety First: Always disconnect the negative terminal from your vehicle’s battery and wait a few minutes for the system to discharge completely.
- Locate the ECM: On most trucks and SUVs like the Escalade, Tahoe, and Silverado, the ECM is located in the engine bay on the driver’s side, often under or near the battery tray.
- Disconnect Connectors: Carefully release the locking tabs on the wiring harness connectors and pull them straight out from the module. Avoid pulling on the wires themselves.
- Remove the Old Module: Unbolt the ECM from its mounting bracket. It’s typically held in place by a few bolts (commonly 10mm or 13mm).
- Install the New Module: Mount your new, pre-programmed ECM onto the bracket and secure the bolts. Reconnect the wiring harnesses, making sure they click securely into place.
- Reconnect the Battery: Reattach the negative battery terminal. The vehicle may need to complete a security relearn procedure, which often involves turning the key to the ‘ON’ position for 10-15 minutes. Consult your owner’s manual for the specific procedure for your vehicle.
Verified Vehicle Compatibility

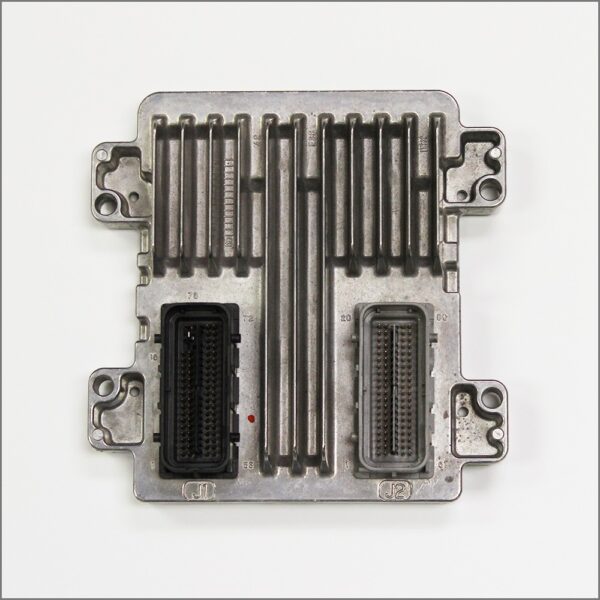

This ECM, part number 12597121, is a direct replacement for several original part numbers including 12589297, 12603892, and 19210738. It is guaranteed to fit the following models (please verify your specific options):
- AURA 07: Electronic Control Module; (RH firewall), 3.5L
- AVALANCHE 1500 07: Electronic Control Module; (LH front under battery)
- CORVETTE 06-07: Electronic Control Module; (RH engine compartment)
- EQUINOX 07: Electronic Control Module; (LH engine compartment)
- ESCALADE / ESV / EXT 07: Electronic Control Module; (LH front under battery)
- G6 07: Electronic Control Module; (LH front engine compartment), 3.5L or 3.9L
- G8 08: Electronic Control Module; 6.0L
- HUMMER H2 07: Electronic Control Module; (LH front under battery)
- IMPALA / MONTE CARLO 07: Electronic Control Module; (lower part of air cleaner box), 3.5L or 3.9L
- MALIBU 07: Electronic Control Module; 3.5L or 3.9L
- SIERRA / SILVERADO 1500 / 2500 / 3500 07: New Style (smooth door skin), (LH front under battery)
- SIERRA DENALI 07: New Style (smooth door skin), (LH front engine compartment)
- SUBURBAN 1500 / 2500 07: Electronic Control Module; (LH front under battery)
- TAHOE 07: Electronic Control Module; (LH front under battery)
- TORRENT 07: Electronic Control Module; (LH engine compartment)
- YUKON / YUKON XL 1500 / 2500 07: Electronic Control Module; (LH front under battery)
Frequently Asked Questions
Do I really need to provide my VIN?
Yes, absolutely. Your Vehicle Identification Number (VIN) is essential for us to load the correct, vehicle-specific GM software onto the module. This step ensures perfect compatibility and function with your engine, transmission, and options package.
Is this a simple plug-and-play installation?
Because we program the module to your VIN before shipping, it eliminates the need for dealer-level scan tools. In most cases, it is a plug-and-play installation. Some vehicles may require a simple security relearn procedure, which can be done without special tools.
Will this fix my specific check engine light codes?
This module is the direct solution for internal ECM failure codes like P0601, P0606, or communication codes like U0100. If your codes are for specific sensors (like an oxygen sensor), you should diagnose and repair that issue first, as a faulty sensor can sometimes be misdiagnosed as a bad ECM.
What is the difference between an ECM, ECU, and PCM?
The terms are often used interchangeably. ECM (Engine Control Module) and ECU (Engine Control Unit) typically refer to the same part. PCM (Powertrain Control Module) is a term used when the module controls both the engine and the automatic transmission. For this application, the terms effectively refer to this main computer.
Is there a core charge for my old module?
No, this purchase does not require a core charge. You can keep your old module or dispose of it responsibly without needing to send it back to us.
