Restore Peak Performance to Your GM Truck or SUV
Is your 2007 Chevrolet Avalanche 1500 running rough, throwing confusing check engine codes, or refusing to start intermittently? As a technician with over two decades of experience under the hood, I’ve seen these symptoms countless times. Often, the culprit is a failing Engine Control Module (ECM)—the computer that acts as the brain of your vehicle’s engine. A faulty ECM can cause a cascade of frustrating issues, from poor fuel mileage and erratic shifting to a complete no-start situation, leaving you stranded. This isn’t just an inconvenience; it’s a critical failure that compromises your vehicle’s reliability and performance.

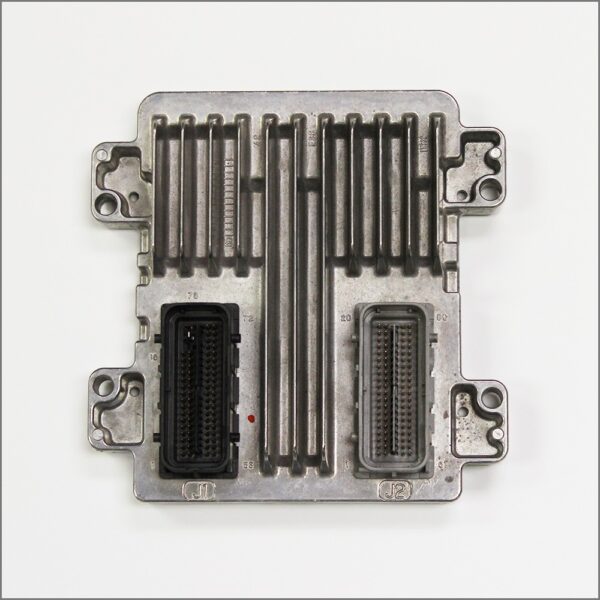

This replacement Engine Control Module is the definitive solution to get your truck back in top form. We take the guesswork and hassle out of the repair by pre-programming the module specifically for your vehicle using your VIN. This means it arrives at your door with the latest factory software from GM, ensuring optimal communication between all your vehicle’s systems. You get a reliable, effective repair without the exorbitant cost and scheduling headaches of a dealership visit for programming. This is the same professional-grade solution I’d use in my own service bay to fix a customer’s vehicle right the first time.
Case Study: A Tricky Diagnosis
A customer brought in a 2007 Silverado with a classic complaint: “Sometimes it just won’t start.” It had no check engine light, but a deep scan revealed intermittent communication loss codes (U-codes) with the ECM. We checked the wiring, grounds, and power feeds—all solid. The battery was new. After an hour of diagnostics, we hooked up a scope and saw the ECM’s 5-volt reference signal intermittently dropping out, causing the crank sensor to stop reading. This is a tell-tale sign of an internal ECM failure, often caused by years of heat cycles and vibration. We installed one of these VIN-programmed modules, performed the security relearn, and the truck fired up perfectly every time. The customer was thrilled to have his reliable truck back without a massive dealership bill.
Is Your Vehicle Showing These Symptoms?
- ✔ Check Engine Light is illuminated with communication or internal processor codes (e.g., P0601, P0602, P0606, U0100).
- ✔ The engine cranks but refuses to start.
- ✔ Unexplained drop in fuel economy.
- ✔ Harsh or erratic automatic transmission shifting.
- ✔ Stalling, stumbling, or hesitation during acceleration.
- ✔ Other warning lights (like traction control) turn on unexpectedly.
- ✔ The cooling fans run constantly, even when the engine is cold.
A Straightforward Guide to Installation
Replacing the ECM is a manageable job for a confident DIYer or any professional mechanic. Our pre-programmed module simplifies the process significantly. While a security relearn is required, it doesn’t necessitate a high-end scan tool.
- Safety First: Disconnect the negative terminal from your vehicle’s battery to prevent any electrical shorts.
- Locate the ECM: On most compatible trucks and SUVs like the Avalanche or Sierra, the ECM is located on the driver’s side, under the battery tray or near the front of the engine compartment. On cars like the Impala or G6, it may be in the air cleaner box or on the firewall.
- Disconnect and Remove: Carefully unplug the wiring harness connectors. They have locking tabs that need to be released. Then, unbolt the old module from its mounting bracket.
- Install the New Module: Bolt the new, pre-programmed ECM into place. Reconnect the wiring harnesses, ensuring they click securely into position.
- Reconnect Battery: Reattach the negative battery terminal.
- Perform Security Relearn: This is a crucial step. Turn the key to the ‘ON’ position (don’t start the engine) for 10-15 minutes, or until the security light on the dash stops flashing and turns off. Turn the key off for 10 seconds. Repeat this cycle two more times (for a total of three cycles). After the third cycle, the vehicle should start and run. A Crankshaft Variation (CASE) relearn may also be needed with a compatible scan tool to prevent a P1336 code, though the vehicle will run without it.
Verified Vehicle Compatibility
This module is a direct replacement for part numbers 12589297, 12597121, 12603892, and 19210738. It is confirmed to fit a wide range of GM vehicles. Please verify your specific model and engine options from the list below:
Chevrolet: Avalanche 1500, Suburban 1500/2500, Tahoe (2007); Silverado 1500/2500/3500 (2007 New Style); Corvette (2006-07); Equinox (2007); Impala (2007, 3.5L/3.9L); Malibu (2007, 3.5L/3.9L); Monte Carlo (2007, 3.5L/3.9L)
GMC: Sierra 1500/2500/3500 (2007 New Style); Sierra Denali (2007 New Style); Yukon, Yukon XL 1500/2500 (2007)
Hummer: H2 (2007)
Pontiac: G6 (2007, 3.5L/3.9L); G8 (2008, 6.0L); Torrent (2007)
Saturn: Aura (2007, 3.5L)
How does the programming process work?
After you complete your purchase, you will need to provide us with your vehicle’s 17-digit Vehicle Identification Number (VIN). Our technicians use this VIN to download the latest, most up-to-date software directly from GM’s servers and flash it onto the module before shipping. This ensures it’s a perfect match for your vehicle’s specific configuration.
Do I need any special tools for the installation?
Basic hand tools (sockets, wrenches) are all that’s needed for the physical replacement. The only other requirement is the security relearn procedure, which is done with the ignition key and does not require a scan tool. A scan tool is recommended for a CASE relearn to clear a potential P1336 code, but it is not required for the vehicle to run.
Is this a used part?
This is a high-quality, tested, and verified replacement module. Each unit is inspected and then programmed with your vehicle’s specific software to ensure it functions as new. It is a reliable and cost-effective alternative to a brand-new dealership part.
What if I have a different part number?
This module is a direct replacement for several part numbers, including 12589297, 12597121, 12603892, and 19210738. If your original module has one of these numbers, this part is compatible. If you are unsure, please contact us with your VIN, and we can verify compatibility for you.
