Stuck in 2WD? Get Your 4×4 Back with a Reliable, Programmed TCCM

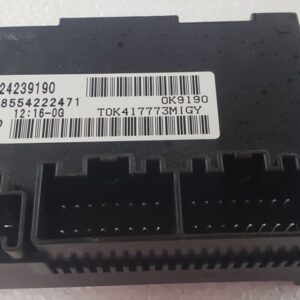

As a mechanic with two decades of experience under the hood of GM trucks, I’ve seen it all. One of the most common complaints I hear from Sierra and Silverado owners is the dreaded ‘Service 4WD’ light on the dash, followed by the inability to shift the transfer case. Before you start worrying about a costly transfer case replacement, the real culprit is often this small but critical component: the Transfer Case Control Module (TCCM). This module is the brain of your 4×4 system, and when it fails, your truck’s off-road and all-weather capabilities are gone. This isn’t just an inconvenience; it’s a safety and utility issue, especially when you rely on your truck for heavy work or navigating tough conditions.
From the Diagnostic Bay: A Common Sierra Story
Just last week, a 2011 Sierra 2500 HD was towed to my shop. The owner was frustrated; his truck was stuck in 2-High, and the 4WD selector switch was completely unresponsive. He was convinced his transfer case was shot and was bracing for a multi-thousand-dollar repair bill. I hooked up my diagnostic scanner and, instead of seeing mechanical failure codes, I found a U0102 code—’Lost Communication with Transfer Case Control Module.’ A quick check confirmed the TCCM wasn’t communicating. These modules, located under the driver’s side dash, are prone to internal electronic failure over time. We swapped in a pre-programmed TCCM, and within 15 minutes, the ‘Service 4WD’ light was off, and the system was shifting perfectly. The customer drove away with a fully functional truck for a fraction of what he feared.
The Plug-and-Play Advantage: No Dealer Programming Needed
The biggest headache with replacing electronic modules is the need for expensive programming at a dealership. We eliminate that step completely. When you purchase this 2007-2014 Sierra 2500 TCCM, you simply provide us with your vehicle’s VIN. We then flash the module with the latest, most stable GM-approved software specific to your truck’s configuration. It arrives at your door ready for a direct, plug-and-play installation. This saves you time, money, and the hassle of scheduling a dealer appointment. It’s the most efficient way to restore your 4×4 system to factory-perfect operation.
Is Your Truck’s 4WD System Acting Up?
A failing TCCM can cause a range of frustrating symptoms. If you’re experiencing any of the following, this module is the likely solution:
- ✔ ‘Service 4WD’ or ‘Service Four Wheel Drive’ message on the instrument cluster.
- ✔ Inability to shift between 2WD, 4-High, and 4-Low.
- ✔ The 4WD selector switch lights are inoperative or flashing.
- ✔ Getting stuck in a single drive mode (e.g., stuck in 4-Low).
- ✔ Diagnostic Trouble Codes (DTCs) such as C0327, C0306, C0374, or communication codes like U0102.
A Straightforward Guide to Installation
You don’t need to be a master mechanic to replace this module. With basic hand tools, you can have your truck back in top shape in under an hour. It is typically located under the driver-side dashboard, to the left of the steering column.
- Safety First: Always disconnect the negative terminal from your truck’s battery to prevent any electrical shorts.
- Access the Module: Remove the lower dash panel beneath the steering wheel. It’s usually held in by a few screws or clips.
- Locate the Old TCCM: Identify the old module. It will have several electrical connectors attached to it.
- Swap the Modules: Carefully unplug the electrical harnesses from the old TCCM. Unbolt it from its mounting bracket and set it aside. Mount the new module in its place.
- Reconnect and Test: Securely plug the electrical harnesses into your new, pre-programmed TCCM. Reconnect the battery terminal. Start the vehicle and test the 4WD selector switch to ensure it shifts through all modes correctly. The ‘Service 4WD’ light should be off.
- Reassemble: Once you’ve confirmed everything works, reinstall the lower dash panel.
Verified Compatibility for Your GM Truck or SUV
This module is a direct-fit replacement for a wide range of GM vehicles and is compatible with numerous original part numbers, including: 24261367, 12588096, 24239190, 24240487, 24241143, 24241970, 24242480, 24243084, 24243085, 24249095, and 24252878. Please confirm your vehicle is on the list below:
- ✔ GMC Sierra 1500/2500/3500 & Denali: 2007 (New Body Style) – 2014
- ✔ Chevrolet Silverado 1500/2500/3500: 2007 (New Body Style) – 2014
- ✔ Chevrolet Avalanche 1500: 2008-2013
- ✔ Chevrolet Suburban 1500/2500: 2008-2014
- ✔ Chevrolet Tahoe: 2008-2014
- ✔ GMC Yukon & Yukon XL 1500/2500: 2007-2014
Frequently Asked Questions
Why do I need to provide my VIN?
Your VIN allows us to program the module with the exact software and calibrations your specific truck requires from the factory. This ensures perfect communication with other vehicle systems and guarantees plug-and-play functionality without a trip to the dealer.
Will this fix the ‘Service 4WD’ light on my dash?
In the vast majority of cases where the TCCM has failed, yes. This module is the most common cause for that warning light and the associated shifting problems. We do recommend a proper diagnosis to rule out issues with the transfer case motor or selector switch.
Is this part difficult to install for a DIYer?
Not at all. The TCCM is typically located in an accessible spot under the driver’s dashboard. With basic hand tools and our step-by-step guide, most people can complete the installation in under an hour.
What happens if I don’t replace a failing TCCM?
You will be unable to use your four-wheel-drive system. This can be a serious issue in snow, mud, or off-road conditions, and can limit your truck’s towing and hauling capabilities. It’s a fix that restores critical functionality to your vehicle.
Is this a new or used part?
This is a high-quality, inspected, and tested used OEM part that has been programmed with the latest GM software for your vehicle, offering a reliable and cost-effective solution.
