Restore Full 4WD Control to Your Sierra Denali
Is the dreaded ‘Service 4WD’ light illuminated on your 2007-2010 Sierra Denali’s dashboard? Are you struggling with a truck that won’t shift into or out of four-wheel drive? You’re not just dealing with an annoyance; you’re facing a loss of capability and safety, especially in challenging weather or terrain. The Transfer Case Control Module (TCCM) is the electronic brain of your 4×4 system, and when it fails, it can leave you stranded. This isn’t just a part; it’s the solution to restoring the rugged, all-terrain confidence you expect from your truck.
As a technician with over two decades of experience, I’ve seen countless GM trucks sidelined by faulty TCCMs. The symptoms are often confusing, but the fix doesn’t have to be. We offer a direct-fit, reliable replacement 2007-2010 Sierra Denali TCCM that eliminates the guesswork and costly dealership visits. The biggest hurdle with replacing these modules has always been the mandatory programming. We solve that for you. Simply provide your vehicle’s VIN during checkout, and we will flash the module with the latest, most stable GM software specifically for your truck. It arrives at your door ready for a true plug-and-play installation.
From the Diagnostic Bay
I remember a customer with a 2009 Sierra Denali who came in completely frustrated. His truck was stuck in 4-Low, making it nearly undrivable on pavement. He’d been to another shop that wanted to replace the expensive transfer case encoder motor. After a quick scan, I found a U0102 code—Lost Communication with Transfer Case Control Module. The encoder motor was fine; the TCCM was simply not commanding it. We swapped in a pre-programmed module, and in under 30 minutes, the truck was shifting perfectly through all ranges. This is a classic case where correctly diagnosing the 2007-2010 Sierra Denali TCCM as the root cause saved the customer over $500 in unnecessary parts and labor.
Is Your Sierra Showing These 4WD Faults?
A failing TCCM can manifest in several ways. If you’re experiencing any of the following, there’s a high probability this module is the culprit:
- âś” ‘Service 4WD’ or ‘Service Four Wheel Drive’ message on the Driver Information Center (DIC).
- âś” Inability to switch between 2WD, 4-High, 4-Low, or Auto modes.
- âś” The 4WD selector switch lights are off, flashing, or indicate the wrong mode.
- âś” A grinding or clunking noise when attempting to shift the transfer case.
- âś” Diagnostic Trouble Codes (DTCs) stored in the system, such as C0327, C0398, or the common communication code U0102 (Lost Communication With TCCM).
A Straightforward Guide to Installation
One of the best features of our VIN-programmed module is the simple installation. You don’t need a high-end scan tool or a trip to the dealer. Most DIYers with basic tools can complete this job in under an hour.
- Safety First: Disconnect the negative terminal from your truck’s battery to prevent any electrical shorts.
- Locate the TCCM: On most 2007-2010 Sierra Denali models, the TCCM is located on the driver’s side of the dashboard, up and to the left of the steering column. You may need to remove the lower dash panel for access.
- Disconnect and Remove: Carefully unplug the electrical connectors from the old module. They have locking tabs that need to be depressed. Then, unbolt the module from its mounting bracket.
- Install the New Module: Bolt the new, pre-programmed 2007-2010 Sierra Denali TCCM into place. Securely plug in the electrical connectors, ensuring they click into place.
- Reconnect and Test: Reinstall the dash panel, reconnect the negative battery terminal, and start the engine. The ‘Service 4WD’ light should be off. Test the function by shifting through all the 4WD modes to confirm proper operation.
Verified Vehicle Compatibility List

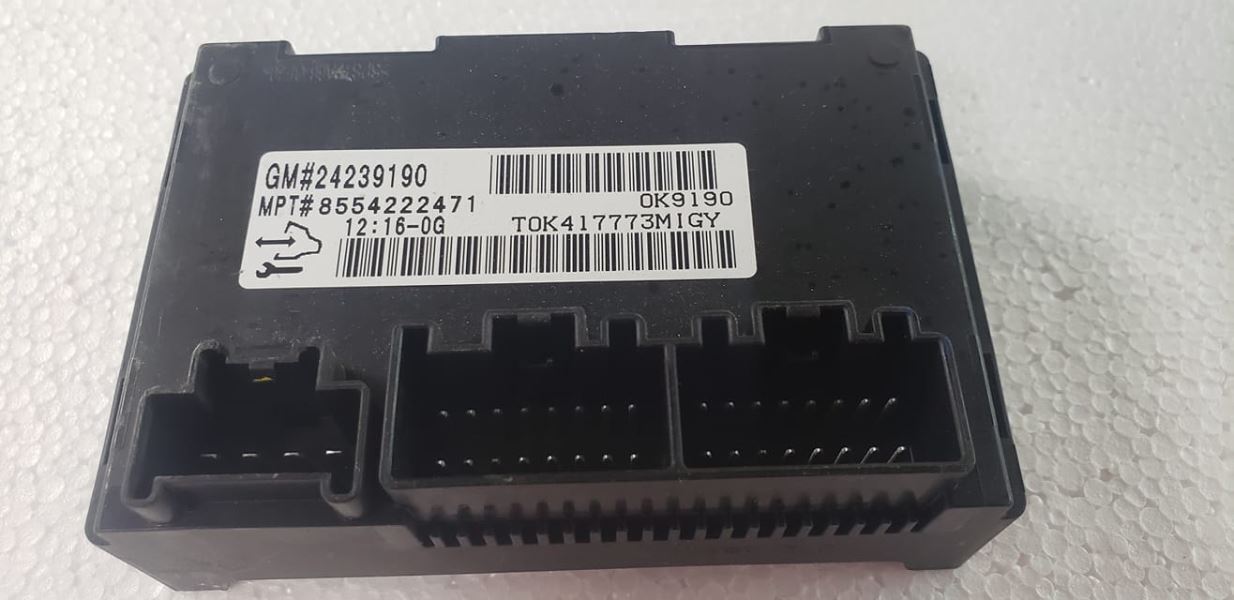

This module, part number 24252878, is a direct replacement for a wide range of GM trucks and SUVs. It is also a compatible replacement for part numbers 24261367, 12588096, 24239190, and others listed in the original description. Please verify your vehicle is on this list before ordering.
- Sierra Denali: 2007-2010
- Sierra 1500/2500/3500 Pickup: 2007 (New Body Style) – 2014
- Silverado 1500/2500/3500 Pickup: 2007 (New Body Style) – 2014
- Avalanche 1500: 2008-2013
- Suburban 1500/2500: 2008-2014
- Tahoe: 2008-2014
- Yukon / Yukon XL 1500 / Yukon XL 2500: 2007-2014
Frequently Asked Questions
How do I provide my VIN for programming?
After you complete your purchase, you will receive an email prompting you for your vehicle’s 17-digit VIN. You can also add it as a note during the checkout process. We cannot ship your part until we receive the VIN.
Is any additional programming needed after installation?
No. This TCCM arrives fully programmed to your specific vehicle using the VIN you provide. The installation is 100% plug-and-play, with no dealer visit required.
Will this fix my ‘Service 4WD’ light?
In the vast majority of cases where the TCCM is the faulty component, yes, this part will resolve the issue and turn off the warning light. However, it’s always best to have the system scanned for codes to confirm the diagnosis, as other parts like the encoder motor or selector switch can also cause similar symptoms.
What if my original part number is different?
This module is a direct replacement for a range of part numbers, including 24261367, 12588096, and 24249095, among others. As long as your vehicle model and year are on our compatibility list, this module will function correctly.
Is this a brand new part?
This is a high-quality, inspected, and tested used OEM component, which is then professionally programmed with the latest GM software for your vehicle. This provides OEM reliability without the high dealership price tag.
