Restore Safe Towing with a Reliable, Programmed TBCM
If you’re seeing the dreaded “Service Trailer Brake System” message on your dash, you’re not alone. As a mechanic with over two decades of experience, I’ve seen this issue countless times on otherwise solid GM trucks. The Trailer Brake Control Module (TBCM), often mounted on the driver-side rear frame rail, lives a tough life exposed to road salt, water, and debris. This exposure is the number one cause of internal corrosion and electronic failure, leading to erratic or non-functional trailer brakes—a serious safety hazard when you’re hauling a heavy load.
Don’t let a faulty module compromise your safety or lead to expensive diagnostic guesswork. This is a direct-replacement Trailer Brake Control Module for your 2007-2009 GM HD truck. The real value here is that we handle the most critical step for you: VIN-specific programming. Before we ship it, we flash the module with the latest GM software updates tailored specifically to your truck. This eliminates the need for a costly trip to the dealership for programming, making this a true plug-and-play solution for both professional technicians and capable DIYers.
A Technician’s Notebook
I remember a customer with a 2008 Silverado 2500 who was convinced the wiring on his brand-new fifth-wheel was faulty. His trailer brakes would grab intermittently. He’d spent a whole weekend chasing wires with a multimeter. He brought the truck to my shop, and after a quick scan, I saw codes pointing to the TBCM’s internal relay. We swapped in a pre-programmed module in under 30 minutes. He hooked up his trailer, and the brakes worked perfectly. He was amazed that the fix was on the truck, not the trailer, and that our 2007-2009 Sierra 3500 TBCM saved him from a dealership visit and more wasted time.
Is Your Truck’s Trailer Brake System Acting Up?
A failing TBCM can manifest in several ways. If you’re experiencing any of these issues, it’s a strong indicator that your module needs replacement.
- ✔ “Service Trailer Brake System” message on the Driver Information Center (DIC).
- ✔ Trailer brakes not engaging at all when the pedal is pressed or the manual slide is used.
- ✔ Trailer brakes are locked up or dragging as soon as the trailer is connected.
- ✔ Intermittent or unpredictable trailer brake application.
- ✔ Diagnostic Trouble Codes (DTCs) stored in the system, such as C0265, C0267, or U0100.
- ✔ The gain setting on your integrated controller has no effect.
A Straightforward Guide to Installation
Replacing your TBCM is a job most vehicle owners can handle with basic tools. Because this unit arrives pre-programmed, you skip the hardest part. Just follow these steps to get your 2007-2009 Sierra 3500 TBCM installed and working correctly.
- Safety First: Disconnect the negative terminal from your truck’s battery to prevent any electrical shorts.
- Locate the Module: Find the old TBCM. It’s typically mounted to the inside of the frame rail on the driver’s side, just in front of the rear axle.
- Disconnect Wiring: Carefully unplug the electrical connectors from the module. Press the release tabs firmly and pull straight out. Inspect the connectors for any corrosion or damage.
- Remove the Old Module: Using a socket wrench, remove the bolts or nuts holding the TBCM to the frame. It may be crusty, so a little penetrating oil can help.
- Install the New Module: Mount your new, pre-programmed TBCM onto the frame and tighten the fasteners securely.
- Reconnect and Test: Plug the electrical connectors into the new module until they click into place. Reconnect your battery terminal. Start the truck and verify that the “Service Trailer Brake System” message is gone. Hook up a trailer to fully test the brake functionality.
Guaranteed Fitment for Your GM Truck

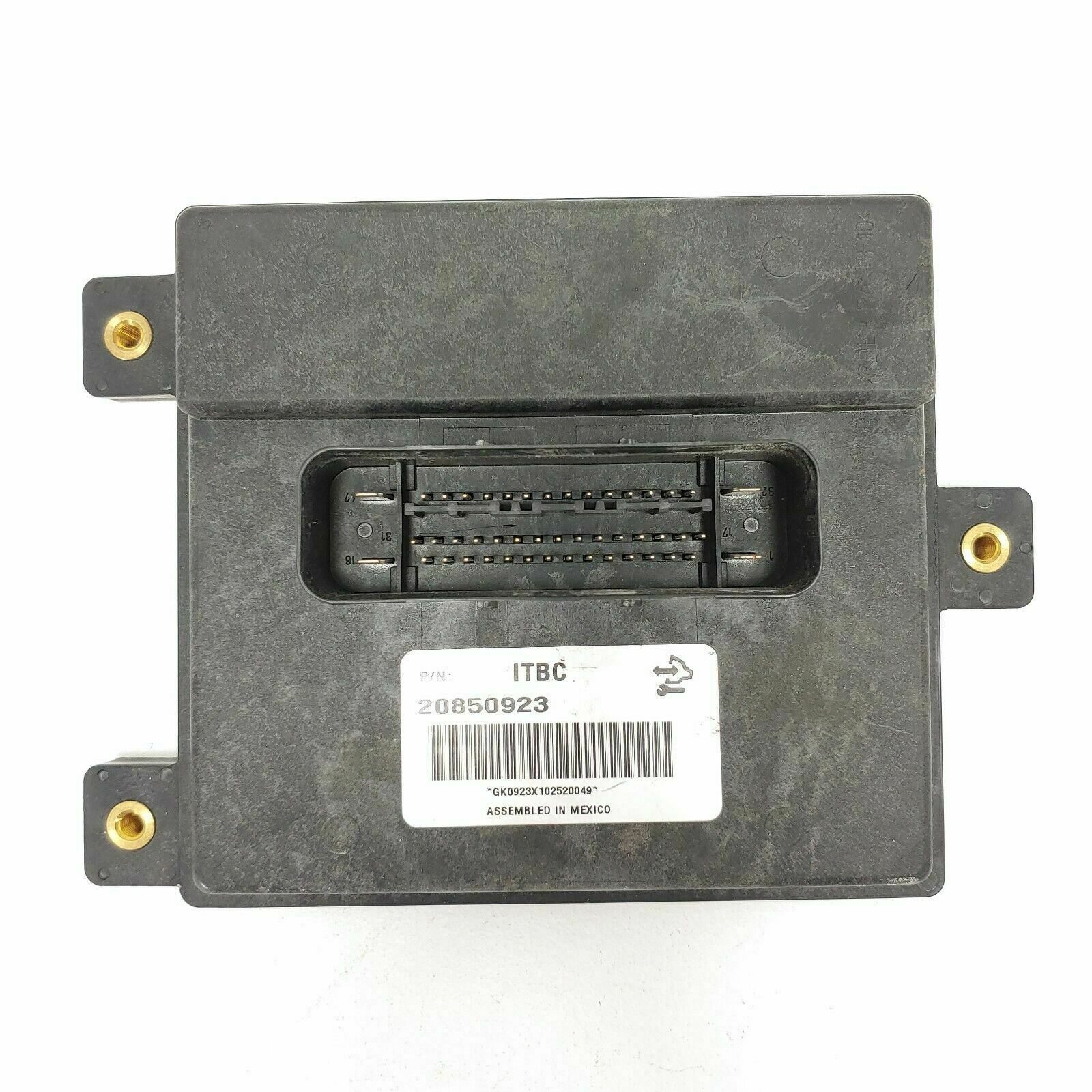

This module is a direct replacement for several part numbers and is guaranteed to fit the following vehicles equipped with the integrated towing control option. It replaces part numbers 20850923, 25854535, 25788981, and 25907533.
- 2007-2009 Chevrolet Silverado 2500/3500 HD (Towing Control; LH rear frame)
- 2007-2009 GMC Sierra 2500/3500 HD (Towing Control; LH rear frame)
- 2008-2009 Chevrolet Silverado 1500 (Towing Control; LH rear frame)
- 2008-2009 GMC Sierra 1500 (Towing Control; LH rear frame)
- 2008-2009 GMC Sierra Denali (Towing Control; LH rear frame)
Frequently Asked Questions
Why do I need to provide my VIN?
Your VIN is essential for us to program the module with the correct software and calibrations for your truck’s specific options. This ensures it communicates properly with your vehicle’s other computers and functions correctly right out of the box, saving you a trip to the dealer.
Where is this module located on my truck?
The Trailer Brake Control Module is typically mounted on the inside of the driver-side frame rail, near the spare tire and in front of the rear axle. Its location exposes it to the elements, which is a common reason for its failure.
Is this a difficult part to install myself?
No, this is a very DIY-friendly repair. Since we pre-program the module, the installation is a simple mechanical swap. You just need to unbolt the old one, bolt the new one in its place, and plug in the connectors. Basic hand tools are all that’s required.
What happens if I don’t replace a bad TBCM?
Continuing to drive with a faulty TBCM is a significant safety risk. You will have no control over your trailer’s brakes, which can dramatically increase your stopping distance, especially with a heavy load. It can lead to loss of control during emergency braking.
How do I know this part is compatible?
This module, part number 25854535, is a direct replacement for several other GM part numbers. Please check the fitment list on this page. If your make, model, and year are listed, this part is a confirmed fit for your vehicle.
