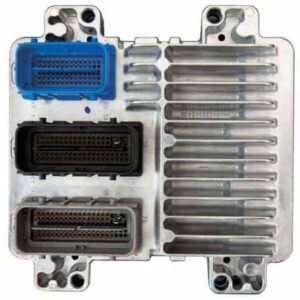

Restore Peak Performance to Your 2006 HHR with a VIN-Programmed ECM
Is your Chevrolet HHR running rough, stalling unexpectedly, or showing a persistent Check Engine Light? As a technician with over two decades of experience under the hood, I’ve seen these symptoms countless times, and they often point to a failing Engine Control Module (ECM). This isn’t just a part; it’s the brain of your vehicle’s engine, and when it falters, everything from fuel economy to drivability suffers. This replacement ECM, part number 12630457, is the definitive solution to get your vehicle back on the road, running as the factory intended.
We take the guesswork and extra cost out of the repair. Unlike grabbing a module from a salvage yard, which would require an expensive trip to the dealership for programming, this unit arrives at your door ready to install. Simply provide us with your vehicle’s VIN during checkout, and our experts will flash the module with the latest, most stable GM software specific to your 2006 HHR. This ensures perfect communication between all vehicle systems and resolves software-related bugs that may have been present in the original calibration.
From the Diagnostic Bay: The Ghost in the Machine
I remember a 2006 HHR that came into my shop with a truly frustrating problem. The owner complained of random stalling at traffic lights and an occasional no-start condition that would vanish as mysteriously as it appeared. We checked the fuel pump, ignition system, and sensors—all tested fine. There were no consistent trouble codes, just a few random communication errors (U-codes) that would come and go. After two days of chasing what felt like a ghost, we focused on the 2006 HHR engine control module. On the surface, it seemed okay, but by monitoring live data, we saw the processor would intermittently drop communication for a split second—just long enough to cause a stall but not always long enough to set a hard fault. Swapping in a VIN-programmed ECM fixed it instantly. It’s a classic case of how a failing computer can mimic a dozen other problems.
Is Your HHR Showing These Telltale Signs?
A failing ECM can manifest in numerous ways. If you’re experiencing any of the following, it’s a strong indicator that your engine’s computer needs attention:
- ✔ Unexplained Check Engine Light illumination
- ✔ Stalling, stuttering, or hesitation during acceleration
- ✔ Complete no-start or intermittent starting problems
- ✔ Noticeable decrease in fuel efficiency
- ✔ Poor or erratic automatic transmission shifting
- ✔ Diagnostic Trouble Codes (DTCs) such as P0601, P0606, or U0100
A Straightforward Guide to Your ECM Swap
Installing your new 2006 HHR engine control module is a job most DIYers can handle with basic tools. Following these steps will ensure a smooth process. While this unit is plug-and-play, some GM vehicles require a security relearn procedure, which can typically be done without special tools.
- Safety First: Always disconnect the negative terminal from your vehicle’s battery and wait at least 10 minutes for the system capacitors to discharge.
- Locate the ECM: On the 2006 HHR, the Engine Control Module is typically found in the left-hand rear of the engine compartment. It’s a metal box with several large electrical connectors.
- Disconnect and Remove: Carefully unclip and remove the electrical harnesses. Be gentle with the locking tabs, as they can become brittle over time. Then, unbolt the module from its mounting bracket.
- Install the New Module: Bolt the new, pre-programmed ECM into place. Reconnect the electrical harnesses, ensuring they click securely into position.
- Reconnect Battery: Reattach the negative battery terminal.
- Perform Security Relearn: Turn the key to the ‘ON’ position (without starting the engine) for 10-15 minutes. The security light on the dash should turn off. Turn the key off for 10 seconds, then start the engine. Your vehicle is now ready to drive.
Verified Vehicle Compatibility List
This ECM is a direct replacement for service number 12630457 and is also interchangeable with part numbers 12590032, 12602044, 12603530, 12605843, 12607096, and 19210737. It fits a wide range of GM vehicles, including but not limited to:
- ✔ Chevrolet HHR: 2006 (2.4L)
- ✔ Chevrolet Cobalt: 2006 (2.4L)
- ✔ Chevrolet Impala / Monte Carlo: 2006 (3.5L, 3.9L)
- ✔ Chevrolet Trailblazer / GMC Envoy: 2007-2009 (4.2L, 5.3L, 6.0L)
- ✔ Pontiac G6: 2006-2009 (Multiple Engines)
- ✔ Saturn ION / VUE: 2006-2010 (Multiple Engines)
- ✔ Cadillac CTS / DTS / STS / XLR: 2006-2009 (Multiple Engines)
- ✔ Buick Allure / LaCrosse / Lucerne: 2006-2009 (Multiple Engines)
Please use the fitment tool or contact us with your VIN to confirm this is the correct 2006 HHR engine control module for your specific vehicle before ordering.
Frequently Asked Questions
Do I need to do anything after I purchase?
Yes. After your purchase, you must send us your vehicle’s 17-digit VIN. We cannot program and ship the module without it. This ensures the software is a perfect match for your car’s options and systems.
Is this module difficult to install?
No, it’s designed for a straightforward installation. It’s a direct-fit replacement, and since we program it beforehand, you won’t need a trip to the dealer for software flashing. Most customers can install it in under an hour with basic hand tools.
My original part number is different. Will this still work?
Yes, this ECM (12630457) is the updated service replacement for several older part numbers, including 12590032, 12602044, and others listed above. As long as your vehicle is on the compatibility list, this module will function correctly.
What is a “security relearn” and is it required?
A security relearn syncs the new ECM with your vehicle’s anti-theft system. Most GM vehicles of this era require it, but it’s simple. The process typically involves turning the key to the ‘ON’ position for 10-15 minutes, as detailed in our installation guide.
Will this fix my check engine light?
If the check engine light is caused by a faulty ECM (common codes P0601-P0606), then yes, this part will resolve the issue. However, it’s always best to have the codes professionally diagnosed to ensure the ECM is the root cause and not a separate sensor or wiring problem.
