Restore Peak Performance to Your GM Vehicle

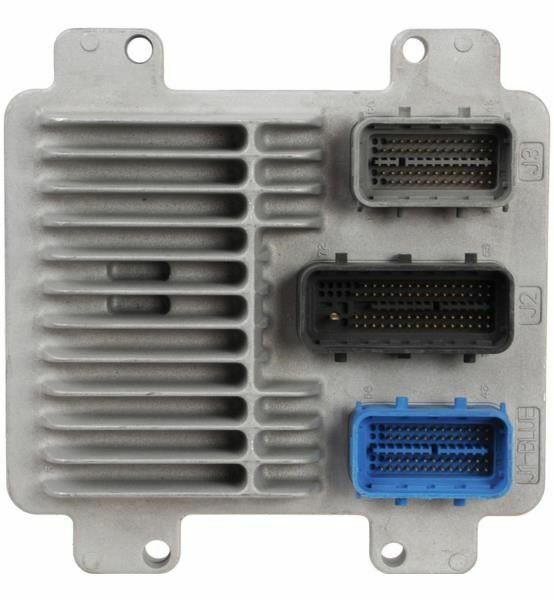

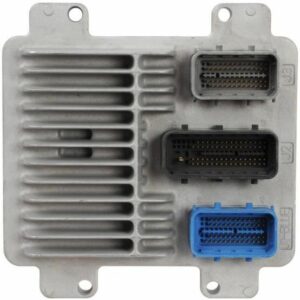

Is your Pontiac G6, Chevy Malibu, or Buick Rendezvous suddenly stalling, shifting erratically, or showing a persistent Check Engine Light? These are classic signs of a failing Powertrain Control Module (PCM), the computer that serves as your vehicle’s brain. A faulty PCM can disrupt everything from fuel delivery and ignition timing to transmission function, leaving you stranded and frustrated. I’ve seen it hundreds of times in the shop: a great car brought to its knees by one failing component. This replacement PCM, part number 12600928, is the reliable, straightforward solution to get your vehicle running smoothly again.
A Technician’s Notebook: The Intermittent Stall
A customer brought in their 2006 Chevy Equinox with a problem that had stumped two other shops: it would randomly stall at stoplights, but only after it was fully warmed up. There were no consistent trouble codes, just a history of random communication errors. We checked fuel pressure, ignition components, and sensors—all were fine. Drawing on experience, I suspected the PCM was failing under heat soak. We connected a scan tool to monitor live data and took it for a long drive. Sure enough, as the engine bay temperature climbed, the PCM data stream started to glitch and then drop out entirely, causing the stall. Replacing the module with a properly programmed unit like this one solved the issue completely. It’s a textbook example of how a PCM can fail intermittently, making diagnosis a real challenge.
Is Your Vehicle Showing These Symptoms?
- ✔ Persistent Check Engine Light (CEL) that won’t clear.
- ✔ Engine stalling, stumbling, or running rough.
- ✔ A complete no-start condition where the engine cranks but won’t fire.
- ✔ Poor fuel economy and decreased engine power.
- ✔ Harsh or erratic automatic transmission shifting.
- ✔ Diagnostic Trouble Codes (DTCs) stored in memory, especially P0601, P0602, P0606, or U-series communication codes.
This isn’t just a replacement part; it’s a restoration of your vehicle’s core operational integrity. We take the guesswork and hassle out of the process by pre-programming this module specifically for your car using the VIN you provide. This ensures that all factory settings and the latest GM software updates are loaded before it even ships. You receive a part that is ready for installation, saving you a costly trip to the dealership for programming.
A Straightforward Guide to Installation
- ✔ Safety First: Disconnect the negative terminal from your vehicle’s battery and secure it away from the post.
- ✔ Locate the PCM: On most of these models, the PCM is located in the left-hand (driver’s side) front of the engine compartment, often near the air filter housing.
- ✔ Disconnect Connectors: Carefully release the locking tabs and unplug the wiring harness connectors from the old module. Inspect the connectors for any corrosion or damage.
- ✔ Remove the Old Module: Unbolt the old PCM from its mounting bracket. It’s typically held in place by a few small bolts.
- ✔ Install the New Module: Mount your new, pre-programmed PCM onto the bracket and securely plug in the wiring harnesses. Ensure the locking tabs click into place.
- ✔ Reconnect Battery: Re-attach the negative battery terminal.
- ✔ Perform Security Relearn: Most GM vehicles of this era require a simple security relearn procedure to allow the vehicle to start. This typically involves turning the key to the ‘ON’ position for 10-15 minutes, then off, and repeating two more times. Your vehicle’s specific procedure can easily be found online.
Will This Fit My Vehicle?
This module is a direct-fit replacement for the following vehicles, matching part numbers 12600928 and 19210070. Please verify your vehicle and options below.
- Pontiac G6: 2006 (Electronic Control Module; LH front engine compartment, ID 12600928)
- Pontiac Torrent: 2006 (Electronic Control Module; LH engine compartment)
- Buick Rendezvous: 2006 (3.5L), 2007 (3.5L)
- Buick Terraza: 2006 (3.5L, LH engine compartment)
- Chevrolet Uplander: 2006 (3.5L, LH engine compartment)
- Chevrolet Malibu: 2006 (3.5L)
- Chevrolet Equinox: 2006 (LH engine compartment)
- Saturn Relay: 2006 (3.5L, LH engine compartment)
- Pontiac Montana: 2006 (SV6, 3.5L, LH engine compartment)
Frequently Asked Questions
What is a Powertrain Control Module (PCM)?
The PCM is your vehicle’s main computer. It controls all aspects of the engine and transmission to ensure optimal performance, fuel efficiency, and emissions. When it fails, it can cause a wide range of serious issues.
Why do you need my VIN?
Your Vehicle Identification Number (VIN) allows us to program the module with the exact software and calibrations for your car’s specific options and features. This plug-and-play service ensures compatibility and saves you a trip to the dealer for programming.
Is this part difficult to install?
For someone with basic mechanical skills, this is a very manageable job. It involves disconnecting the battery, unplugging a few connectors, and unbolting the module. The most important step after installation is the security relearn procedure, which is simple to perform.
What is the security relearn procedure?
It’s a process that synchronizes the new PCM with your vehicle’s anti-theft system. Without it, the car will not start. The standard GM procedure involves cycling the ignition key and waiting, and typically takes about 30 minutes to complete.
Will this fix my check engine light?
If the check engine light and other symptoms are being caused by a faulty PCM, then yes, this part will resolve those issues. It’s crucial to properly diagnose the problem before ordering to ensure the PCM is the root cause.
