Restore Peak Performance to Your GM Vehicle’s V8

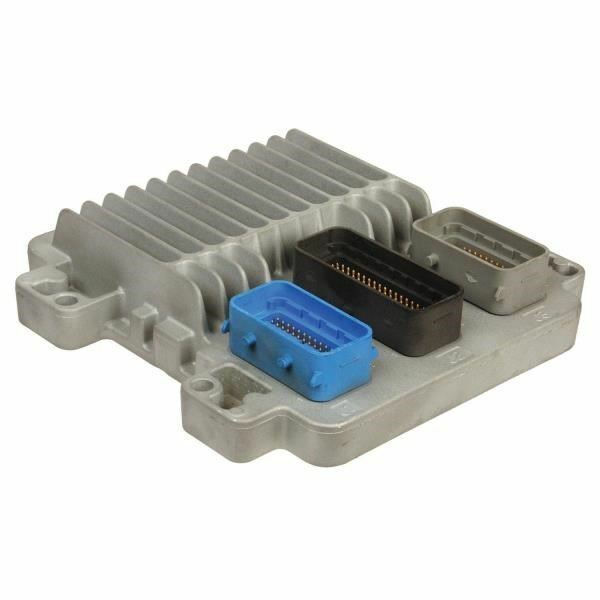

If you’re dealing with frustrating engine problems like stalling, poor fuel economy, a persistent Check Engine Light, or even a no-start condition, the culprit is often the Engine Control Module (ECM). As a technician with over two decades of experience under the hood, I’ve seen firsthand how a failing ECM can mimic a dozen other issues. It’s the central computer of your engine, and when it falters, everything from ignition timing to fuel delivery is compromised. This replacement ECM, part number 19210071, is the definitive solution for your 2005 Chevrolet SSR and a wide range of other GM vehicles from that model year.
The biggest headache with ECM replacement has always been the programming. Dealerships charge a premium and require you to get your vehicle to their shop. We eliminate that completely. When you order, simply provide us with your vehicle’s VIN. We will flash this module with the latest, most stable GM-certified software specific to your car or truck. This means it arrives at your door ready for installation, saving you time, money, and the hassle of a tow truck. This isn’t just a replacement; it’s a restoration of your vehicle’s electronic nervous system, ensuring it operates as the factory intended.
Is Your Vehicle Showing These Symptoms of ECM Failure?
A failing ECM can cause a variety of confusing symptoms. I’ve diagnosed hundreds of these in my shop. If you’re experiencing any of the following, a faulty module is a likely cause. Look out for:
- ✔ Unexplained Check Engine Light (CEL) illumination.
- ✔ Stored diagnostic trouble codes (DTCs) like P0601 (Internal Control Module Memory Check Sum Error) or P0606 (ECM/PCM Processor Fault).
- ✔ Engine stalling, stumbling, or running rough for no apparent reason.
- ✔ A complete no-start condition where the engine cranks but won’t fire up.
- ✔ Noticeable decrease in fuel efficiency.
- ✔ Poor or erratic automatic transmission shifting.
- ✔ Failure to pass state emissions testing.
From the Diagnostic Bay: The Intermittent Stall
A customer brought in a 2005 Envoy with the 5.3L, a vehicle that shares this exact 2005 SSR Engine Control Module. The complaint was a maddening intermittent stall that only happened after it was fully warmed up. No codes were stored. We checked fuel pressure, sensors, and wiring—everything looked perfect. On a hunch, I monitored the ECM’s internal temperature data while letting it heat cycle. Just before it would stall, the data stream would go haywire. The ECM’s processor was failing under heat. Swapping in a pre-programmed module like this one solved the problem instantly. It’s a classic example of how a failing ECM can send you on a wild goose chase.
A Straightforward Guide to Installation
Replacing the ECM is a manageable job for a DIYer with basic tools. Our pre-programming service handles the most difficult part. Here’s a general guide to get you started:
- Safety First: Always disconnect the negative terminal from your vehicle’s battery and wait at least 15 minutes to allow capacitors to discharge.
- Locate the ECM: On the 2005 SSR, it’s located next to the air box. On other models like the Corvette or Trailblazer, it may be in the engine compartment on the driver’s or passenger’s side. Consult a vehicle-specific manual if you’re unsure.
- Disconnect Connectors: Carefully release the locking tabs on the wiring harness connectors and pull them straight out from the module. Avoid pulling on the wires themselves.
- Remove the Old Module: Unbolt the old ECM from its mounting bracket. Keep the hardware, as you’ll need it for the new module.
- Install the New Module: Mount your new, pre-programmed ECM securely onto the bracket and re-tighten the bolts.
- Reconnect Everything: Plug the wiring harnesses back into the new ECM until they click firmly into place. Reconnect the negative battery terminal.
- Perform Security Relearn: You may need to perform a simple security relearn procedure (often called a Passlock or VATS relearn). This typically involves turning the key to ‘ON’ for 10-15 minutes, then ‘OFF’, and repeating two more times. This allows your vehicle’s anti-theft system to recognize the new ECM.
Guaranteed Fitment for These 2005 GM Models
This module is a direct-fit replacement for several vehicles and is compatible with multiple service numbers, including 12578554, 12596771, 12597191, 12597883, and 19210071. Please verify your vehicle is on this list:
- ✔ 2005 Chevrolet Corvette: (RH engine compartment)
- ✔ 2005 Chevrolet SSR: (next to air box)
- ✔ 2005 Chevrolet Trailblazer EXT: (LH engine, 5.3L)
- ✔ 2005 GMC Envoy / Envoy XL / Envoy XUV: (LH engine, 5.3L)
- ✔ 2005 Pontiac GTO: (main, LH engine)
- ✔ 2005 Buick Rainier: (LH engine, 5.3L)
- ✔ 2005 Isuzu Ascender: (5.3L, LH engine)
- ✔ 2005 Saab 9-7x: (LH engine, 8 cylinder)
Frequently Asked Questions
Frequently Asked Questions
How does the VIN programming process work?
After you place your order, you’ll provide us with your 17-digit Vehicle Identification Number (VIN). Our technicians use this VIN to access the official GM database and load the correct, most current software for your specific vehicle configuration onto the module before we ship it.
Will I need to do anything after installing this ECM?
In most cases, you will need to perform a simple ‘Security Relearn Procedure’ which syncs the new ECM to your vehicle’s anti-theft system. This procedure is easy and requires no special tools, typically just turning the ignition key on and off in a specific sequence. We include instructions for this.
What is a ‘service number’ and why does it matter?
GM often releases updated versions of a part over its life. The service numbers (like 12578554 or 12596771) are different part numbers that are all functionally identical and interchangeable. Our module, 19210071, is a compatible replacement for all the service numbers listed.
Why is a properly functioning 2005 SSR Engine Control Module so important?
The ECM is critical for engine operation. It controls fuel injection, spark timing, idle speed, and communicates with other vehicle systems like the transmission and ABS. A faulty one leads to poor performance, bad fuel mileage, and can prevent the vehicle from running at all.
Do you need my old ECM back?
This purchase does not require a core return. You can keep or responsibly dispose of your old module without needing to send it back to us.
