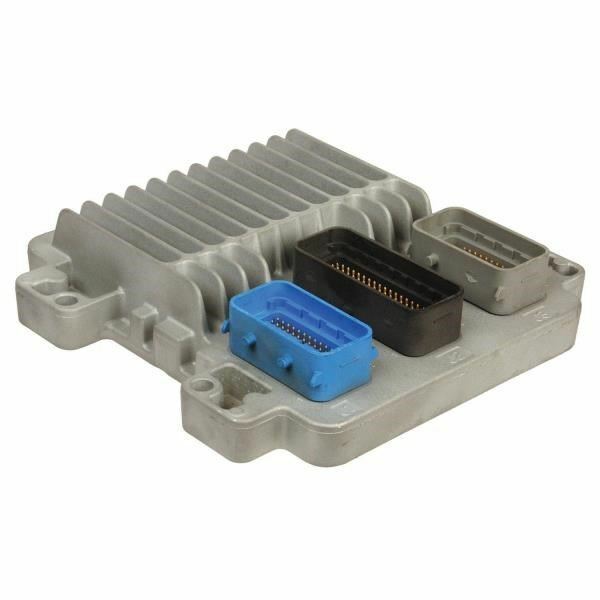

Programmed 2005 SSR Engine Control Module ECM 12597191

Restore Peak Performance to Your 2005 GM Vehicle

Is your 2005 Chevrolet SSR, Corvette, or GTO suffering from frustrating and unpredictable issues? Problems like a persistent check engine light, rough idling, stalling, or a complete no-start condition often point directly to a failing Engine Control Module (ECM). As the central computer of your vehicle, a faulty ECM can disrupt everything from fuel delivery and ignition timing to transmission shifting. This isn’t just an annoyance; it’s a critical failure that compromises your vehicle’s reliability and safety. After spending over two decades diagnosing these exact symptoms, I can tell you that swapping out random parts is a costly guessing game. The solution is a dependable, correctly configured ECM.

This replacement 2005 SSR Engine Control Module is the definitive solution to get your vehicle running correctly again. We take the guesswork and hassle out of the repair by pre-programming the module specifically for your vehicle using your VIN. This critical step ensures that the ECM is loaded with the latest official GM software updates and is perfectly matched to your vehicle’s specific systems, including the anti-theft system and transmission type. You get a component that is ready for installation right out of the box, saving you a trip to the dealership and expensive programming fees.

A Technician’s Notebook: The Intermittent Gremlin

A few months back, a 2005 SSR rolled into my bay with a complaint that drove the owner mad: it would randomly stall at red lights, but only when the engine was fully warmed up. It threw no consistent codes, just a few random communication errors now and then. We checked fuel pressure, sensors, and wiring—all perfect. On a hunch, I monitored the ECM’s internal temperature data. Sure enough, as it heated up, the processor would start to drop data packets. It was a classic case of thermal failure on the main board. We installed a VIN-programmed ECM, and the SSR has been running flawlessly ever since. These intermittent issues are often the first sign of a failing 2005 SSR Engine Control Module.

Common Signs of a Failing ECM

✔ Check Engine Light is illuminated with codes like P0601 (Internal Control Module Memory Check Sum Error) or P0606 (ECM/PCM Processor Fault).
✔ The engine cranks but refuses to start.
✔ Unexplained drops in fuel economy.
✔ The vehicle stalls unexpectedly or runs very rough.
✔ Harsh or erratic automatic transmission shifting.
✔ Loss of communication with the scan tool.
✔ Other modules in the vehicle may set U-codes (loss of communication with ECM).

A Straightforward Guide to Installation

✔ Safety First: Disconnect the negative terminal from your vehicle’s battery and secure it away from the post to prevent accidental contact.
✔ Locate the Module: On the 2005 SSR, the ECM is conveniently located next to the air filter box in the engine compartment. For other models, it is typically on the driver’s side of the engine bay.
✔ Disconnect Connectors: Carefully release the locking tabs on the electrical wiring harnesses and pull them straight out from the old ECM. Avoid pulling on the wires themselves.
✔ Remove the Old ECM: Unbolt the mounting hardware that secures the old module to its bracket or the vehicle body.
✔ Install the New ECM: Mount your new, pre-programmed module in place and secure it with the original hardware.
✔ Reconnect Everything: Firmly plug the wiring harnesses into the new ECM until they click into place. Reconnect the negative battery terminal.
✔ Perform Security Relearn: In many cases, you will need to perform a simple security relearn procedure. This typically involves turning the key to the ‘ON’ position for 10-15 minutes, then off, and repeating two more times. This allows the new ECM to sync with your vehicle’s anti-theft system.

Verified Vehicle Compatibility

This module, part number 12597191, is a direct replacement for service numbers 12578554, 12596771, 12597883, and 19210071. It is guaranteed to fit the following 2005 models:

Chevrolet Corvette: (Located in RH engine compartment)
Chevrolet SSR: (Located next to air box)
Chevrolet Trailblazer EXT: 5.3L (Located in LH engine)
GMC Envoy / Envoy XL / Envoy XUV: 5.3L (Located in LH engine)
Pontiac GTO: (Main, located in LH engine)
Buick Rainier: 5.3L (Located in LH engine)
Isuzu Ascender: 5.3L (Located in LH engine)
Saab 9-7X: 8-cylinder (Located in LH engine)
